CN217308564U - Self-discharging flat plate device for assisting arbor planting - Google Patents
Self-discharging flat plate device for assisting arbor planting Download PDFInfo
- Publication number
- CN217308564U CN217308564U CN202221013202.6U CN202221013202U CN217308564U CN 217308564 U CN217308564 U CN 217308564U CN 202221013202 U CN202221013202 U CN 202221013202U CN 217308564 U CN217308564 U CN 217308564U
- Authority
- CN
- China
- Prior art keywords
- arbor
- self
- bearing panel
- connecting rod
- planting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P60/00—Technologies relating to agriculture, livestock or agroalimentary industries
- Y02P60/40—Afforestation or reforestation
Landscapes
- Transplanting Machines (AREA)
Abstract
一种辅助乔木种植的自卸平板装置，涉及运输装置领域。该辅助乔木种植的自卸平板装置包括两侧底部分别连接有多个车轮的平板车体及乔木承载面板，乔木承载面板的一端与平板车体一端铰接，乔木承载面板的顶部两侧分别设有多块用于限定乔木位置的乔木限位锚柱，平板车体连接有电机丝杆及用于驱动电机丝杆旋转的自卸电机，电机丝杆上套设有套筒，套筒和乔木承载面板底面之间铰接有连杆；套筒沿电机丝杆移动时，使连杆带动乔木承载面板绕铰接处在水平布置和竖直布置之间转动。本申请提供的辅助乔木种植的自卸平板装置能够快速高效的将运输的乔木从水平布置转换成直立布置并插入土壤进行种植，提高了苗木种植效率并降低了作业人员的劳动强度。
A self-unloading flat plate device for assisting arbor planting relates to the field of transportation devices. The self-unloading flatbed device for assisting tree planting comprises a flatbed car body and an arbor bearing panel respectively connected with a plurality of wheels at the bottom of both sides, one end of the arbor bearing panel is hinged with one end of the flatbed car body, and two sides of the top of the arbor bearing panel are respectively provided with A plurality of arbor limit anchor posts used to limit the position of the arbor, the flat car body is connected with a motor screw and a dump motor for driving the rotation of the motor screw, the motor screw is sleeved with a sleeve, and the sleeve and the arbor carry the load A connecting rod is hinged between the bottom surfaces of the panels; when the sleeve moves along the screw rod of the motor, the connecting rod drives the arbor bearing panel to rotate between the horizontal arrangement and the vertical arrangement around the hinge. The self-unloading flat plate device for assisting arbor planting provided by the present application can quickly and efficiently convert the transported arbor from a horizontal arrangement to an upright arrangement and insert it into the soil for planting, which improves the planting efficiency of seedlings and reduces the labor intensity of operators.
Description
Technical Field
The application relates to the field of transportation devices, particularly, relate to a dull and stereotyped device of self-discharging that supplementary arbor was planted.
Background
The existing nursery stocks in the green areas need to be reseeded and pruned to overcome the defect that the nursery stocks grow randomly and are in a disordered state in space, and along with the improvement of environmental protection and green requirements, the problem is to comb the existing green status and carry out interspersing planting construction in a limited space. High big arbor is planted in the past and is taken hoist and mount construction scheme more, and this scheme does not possess construction conditions in finite space, adopts traditional artifical planting nursery stock to waste time and energy, and the efficiency of construction is low, the progress is slow, and is with high costs, is difficult to satisfy city afforestation construction's requirement.
SUMMERY OF THE UTILITY MODEL
An object of this application is to provide a self-discharging plate device that supplementary arbor was planted, can high efficiency convert the arbor of transportation from the level to arranging upright and insert soil and plant, improved seedling planting efficiency and reduced operation personnel's intensity of labour.
The embodiment of the application is realized as follows:
the embodiment of the application provides a self-discharging flat plate device for assisting arbor planting, which comprises a flat plate vehicle body and an arbor bearing panel, wherein the bottoms of the two sides of the flat plate vehicle body are respectively connected with a plurality of wheels, the arbor bearing panel is arranged above the flat plate vehicle body, one end of the arbor bearing panel is hinged with one end of the flat plate vehicle body, two sides of the top of the arbor bearing panel are respectively provided with a plurality of arbor limiting anchor posts for limiting the arbor position, the flat plate vehicle body is connected with a motor screw rod and a self-discharging motor for driving the motor screw rod to rotate, a sleeve is sleeved on the motor screw rod, and a connecting rod is hinged between the sleeve and the bottom surface of the arbor bearing panel; when the sleeve moves along the motor lead screw, the connecting rod drives the arbor bearing panel to rotate between horizontal arrangement and vertical arrangement around the hinged position.
In some optional embodiments, a sliding plate is arranged on the top surface of the flatbed vehicle body, a sliding groove extending along the length direction of the sliding plate is formed in the sliding plate, and the motor screw rod and the sleeve are arranged in the sliding groove.
In some alternative embodiments, the bottom of the platform body is hinged with a support frame that is rotatable to press against the ground.
In some optional embodiments, the supporting frame comprises a connecting shaft and two supporting shafts, the connecting shaft is connected to the bottom of the flat car body, the connecting shaft is hinged to the two supporting shafts through a plurality of first connecting rods and second connecting rods corresponding to the first connecting rods one by one, a third connecting rod is hinged between each first connecting rod and the corresponding second connecting rod, and each third connecting rod is composed of two supporting rods with mutually hinged end portions.
In some alternative embodiments, the connecting rod comprises a Y-shaped first connecting rod hinged with the bottom of the arbor bearing panel and a second connecting rod with two ends respectively hinged with the first connecting rod and the sleeve.
In some optional embodiments, the base plate further comprises a cover plate, the bottom of the cover plate is provided with a clamping groove for clamping each arbor limit anchor post, and a limit cavity for limiting the arbor position is formed by the cover plate, the arbor bearing panel and each arbor limit anchor post in an enclosing manner.
The beneficial effect of this application is: the self-discharging flat plate device for assisting arbor planting comprises a flat plate vehicle body and an arbor bearing panel, wherein the bottom of each of two sides of the flat plate vehicle body is respectively connected with a plurality of wheels, the arbor bearing panel is arranged above the flat plate vehicle body, one end of the arbor bearing panel is hinged with one end of the flat plate vehicle body, two sides of the top of the arbor bearing panel are respectively provided with a plurality of arbor limiting anchor posts for limiting the arbor position, the flat plate vehicle body is connected with a motor lead screw and a self-discharging motor for driving the motor lead screw to rotate, a sleeve is sleeved on the motor lead screw, and a connecting rod is hinged between the sleeve and the bottom surface of the arbor bearing panel; when the sleeve moves along the motor lead screw, the connecting rod drives the arbor bearing panel to rotate between horizontal arrangement and vertical arrangement around the hinged position. The application provides a self-discharging plate device that supplementary arbor was planted can high efficiency convert the arbor of transportation to from the horizontal arrangement and upright arrange and insert soil and plant, has improved seedling planting efficiency and has reduced operation personnel's intensity of labour.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present application, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present application and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained from the drawings without inventive effort.

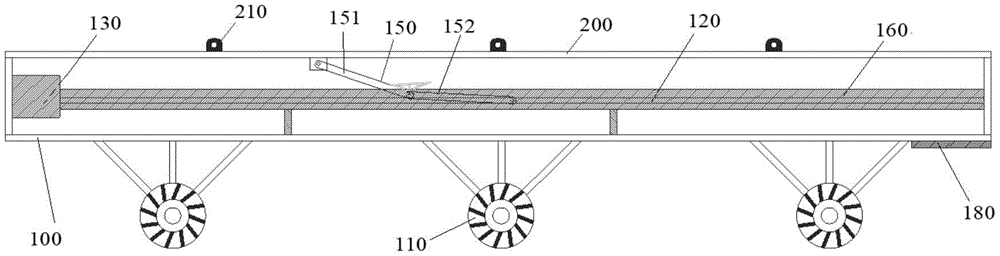

Fig. 1 is a schematic structural diagram of a first view angle of a self-discharging tablet device for assisting arbor planting according to an embodiment of the present disclosure;
fig. 2 is a structural diagram of a second view angle of the self-discharging tablet device for assisting arbor planting according to the embodiment of the present disclosure;
fig. 3 is a schematic structural view illustrating a hinge connection between a arbor bearing panel and a connecting rod in a self-discharging platform device for assisting arbor planting according to an embodiment of the present disclosure;
fig. 4 is a schematic structural diagram illustrating connection between a connecting rod and a sleeve, a motor lead screw and a sliding plate in a self-discharging flat device for assisting arbor planting according to an embodiment of the present disclosure;
fig. 5 is a schematic structural diagram illustrating a connection between a support frame and a flat carriage body in a self-discharging flat device for assisting arbor planting according to an embodiment of the present disclosure;
fig. 6 is a schematic structural view of a support frame in a self-discharging flat device for assisting arbor planting according to an embodiment of the present disclosure;
fig. 7 is a schematic structural view illustrating a connection between a cover plate and a tree support panel of a self-discharging tablet device for assisting tree planting according to another embodiment of the present disclosure.
In the figure: 100. a flatbed vehicle body; 110. a wheel; 120. a motor lead screw; 130. a self-discharging motor; 140. a sleeve; 150. a connecting rod; 151. a first link; 152. a second link; 160. a slide plate; 170. a chute; 180. a support frame; 181. a connecting shaft; 182. a support shaft; 183. a first connecting rod; 184. a second connecting rod; 185. a third connecting rod; 186. a support bar; 190. a cover plate; 200. a tree load bearing panel; 210. limiting anchor posts for arbors; 220. a card slot; 230. and a limiting cavity.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present application clearer, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are some embodiments of the present application, but not all embodiments. The components of the embodiments of the present application, generally described and illustrated in the figures herein, can be arranged and designed in a wide variety of different configurations.
Thus, the following detailed description of the embodiments of the present application, presented in the accompanying drawings, is not intended to limit the scope of the claimed application, but is merely representative of selected embodiments of the application. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present application, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings or orientations or positional relationships that the products of the application usually place when in use, and are used only for convenience in describing the present application and simplifying the description, but do not indicate or imply that the devices or elements being referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present application. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance.
Furthermore, the terms "horizontal", "vertical", "suspended" and the like do not imply that the components are absolutely horizontal or suspended, but may be slightly inclined. For example, "horizontal" merely means that the direction is more horizontal than "vertical" and does not mean that the structure must be perfectly horizontal, but may be slightly inclined.
In the description of the present application, it should also be noted that, unless expressly stated or limited otherwise, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and can include, for example, fixed connections, detachable connections, or integral connections; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood in a specific case by those of ordinary skill in the art.
In this application, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact of the first and second features, or may comprise contact of the first and second features not directly but through another feature in between. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
The features and performance of the self-discharging plate device for assisting arbor planting according to the present application will be described in further detail with reference to the following embodiments.
As shown in fig. 1, 2, 3, 4, 5 and 6, an embodiment of the present invention provides a self-discharging platform device for assisting arbor planting, which includes a platform body 100 having two sides and bottoms respectively connected with three rotatable wheels 110, and an arbor bearing panel 200 disposed above the platform body 100, one end of the arbor bearing panel 200 is hinged to one end of the platform body 100, two sides of the top of the arbor bearing panel 200 are respectively provided with three arbor limit anchor posts 210 for limiting the position of an arbor, the platform body 100 is connected with a self-discharging motor 130, an output shaft of the self-discharging motor 130 is connected with a coaxially disposed motor lead screw 120, the motor lead screw 120 is sleeved with a sleeve 140, a connecting rod 150 is hinged between the sleeve 140 and the bottom surface of the arbor bearing panel 200, the connecting rod 150 includes a Y-shaped first connecting rod 151 hinged to the bottom of the arbor bearing panel 200, and a second connecting rod 152 having two ends respectively hinged to the first connecting rod 151 and the sleeve 140, the top surface of the platform body 100 is provided with a sliding plate 160, the sliding plate 160 is provided with a sliding groove 170 extending along the length direction, and the motor screw rod 120 and the sleeve 140 are arranged in the sliding groove 170; the sleeve 140 moves along the motor lead screw 120 causing the link 150 to rotate the arbor bearing panel 200 about the hinge between a horizontal and vertical disposition. The bottom of one end of the flat car body 100 hinged to the arbor bearing panel 200 is hinged to a support frame 180 which can rotate to press the ground, the support frame 180 comprises a connecting shaft 181 and two support shafts 182, the connecting shaft 181 is connected to the bottom of the flat car body 100, the connecting shaft 181 is hinged to the two support shafts 182 through three first connecting rods 183 and three second connecting rods 184 corresponding to the first connecting rods 183 one by one, a third connecting rod 185 is hinged between each first connecting rod 183 and the corresponding second connecting rod 184, and the third connecting rod 185 is composed of two support rods 186 with end portions hinged to each other.
When the self-discharging flat plate device for assisting arbor planting provided by the embodiment of the application is used, the self-discharging motor 130 is firstly controlled to start to drive the motor screw rod 120 to rotate, the sleeve 140 sleeved on the motor screw rod 120 through threads moves to a position far away from the hinge end of the arbor bearing panel 200 and the flat plate vehicle body 100 along the sliding grooves 170 arranged on the motor screw rod 120 and the sliding plate 160, so that the sleeve 140 drives the connecting rod 150 and the arbor bearing panel 200 to rotate to be horizontally arranged around the hinge joint, then an operator horizontally hangs and places arbors between arbor limit anchor posts 210 respectively arranged on two sides of the top of the arbor bearing panel 200, pushes the flat plate vehicle body 100 to move until the flat plate vehicle body 100 moves to the arbor planting pit, so that the arbor planting pit is positioned on the side of the hinge end of the arbor bearing panel 200 and the flat plate vehicle body 100, and the support frame 180 supports the bottom of the hinged end of the flat plate vehicle body 100 and the arbor bearing panel 200, rotating the two supporting shafts 182 relative to the connecting shaft 181, and rotating the two supporting rods 186 corresponding to the third connecting rod 185 relative to the first connecting rod 183 and the second connecting rod 184, so that the two supporting shafts 182 press against the ground and the connecting shaft 181 and the flat car body 100 are supported by the first connecting rod 183 and the second connecting rod 184, when the flat car body 100 is stably supported by the supporting frame 180, controlling the self-discharging motor 130 to start to drive the motor screw rod 120 to rotate, so that the sleeve 140 sleeved on the motor screw rod 120 through threads moves towards the hinged end of the arbor bearing panel 200 and the flat car body 100 along the sliding groove 170 formed on the motor screw rod 120 and the sliding plate 160, so that the sleeve 140 drives the connecting rod 150 and the arbor bearing panel 200 to rotate from horizontal arrangement to vertical arrangement around the hinged position, and enables arbors placed on the arbor bearing panel 200 to slide into the arbor planting pit for fixing and planting operation, can make things convenient for the operation personnel to transport the arbor and convert the arbor of horizontal arrangement to vertical state and plant, improve nursery stock planting efficiency and reduced operation personnel's intensity of labour.
As shown in fig. 7, in other optional embodiments, the arbor bearing panel further includes a cover plate 190, a clamping groove 220 for clamping each arbor limit anchor column 210 is provided at the bottom of the cover plate 190, a limit cavity 230 for limiting the arbor position is formed by enclosing between the cover plate 190, the arbor bearing panel 200 and each arbor limit anchor column 210, and by providing the cover plate 190 for clamping the clamping groove 220 of each arbor limit anchor column 210, a limit cavity 230 for limiting the arbor position can be formed by enclosing between the cover plate 190, the arbor bearing panel 200 and each arbor limit anchor column 210, so that when the arbor bearing panel 200 rotates from the horizontal arrangement to the vertical arrangement, an arbor can stably slide into the arbor planting pit along the arbor bearing panel 200 to perform fixing and planting operations.
The embodiments described above are some, but not all embodiments of the present application. The detailed description of the embodiments of the present application is not intended to limit the scope of the claimed application, but is merely representative of selected embodiments of the application. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
Claims (6)
1. The self-discharging flat plate device for assisting arbor planting is characterized by comprising a flat plate vehicle body and an arbor bearing panel, wherein the bottoms of two sides of the flat plate vehicle body are respectively connected with a plurality of wheels, the arbor bearing panel is arranged above the flat plate vehicle body, one end of the arbor bearing panel is hinged with one end of the flat plate vehicle body, two sides of the top of the arbor bearing panel are respectively provided with a plurality of arbor limiting anchor posts for limiting the position of an arbor, the flat plate vehicle body is connected with a motor lead screw and a self-discharging motor for driving the motor lead screw to rotate, a sleeve is sleeved on the motor lead screw, and a connecting rod is hinged between the sleeve and the bottom surface of the arbor bearing panel; when the sleeve moves along the motor screw rod, the connecting rod drives the arbor bearing panel to rotate between horizontal arrangement and vertical arrangement around the hinged position.
2. The self-unloading platform device for assisting arbor planting as claimed in claim 1, wherein a sliding plate is provided on the top surface of the platform body, the sliding plate is provided with a sliding slot extending along the length direction thereof, and the motor screw rod and the sleeve are provided in the sliding slot.
3. The self-discharging platform device for assisting arbor planting according to claim 1, wherein the bottom of the platform body is hinged with a support frame that can rotate to press against the ground.
4. The self-discharging dull and stereotyped device of supplementary arbor planting of claim 3, characterized in that, the support frame includes connecting axle and two back shafts, the connecting axle is connected in dull and stereotyped bottom of car body, the connecting axle respectively through many head rods and with the second connecting rod of head rod one-to-one with two the back shaft is articulated, the head rod with correspond it has the third connecting rod to articulate between the second connecting rod, the third connecting rod comprises the mutual articulated bracing piece of two tip.
5. The self-discharging tablet device for assisting in planting trees of claim 1, wherein the connecting rods comprise a first Y-shaped connecting rod hinged to the bottom of the bearing panel of the trees and a second connecting rod hinged at both ends to the first connecting rod and the sleeve, respectively.
6. The self-discharging tablet device that supplementary arbor was planted of claim 1, further comprises the apron, the bottom of apron is equipped with the draw-in groove that is used for the joint each spacing anchor post of arbor, enclose between apron, the arbor load-bearing panel and each the spacing anchor post of arbor and form the spacing chamber of limited arbor position.
