CN2456830Y

CN2456830Y - Horizontal double screw stirrer

Info

Publication number: CN2456830Y
Application number: CN 00267026
Authority: CN
Inventors: 刘兴华
Original assignee: China University of Mining and Technology Beijing CUMTB
Current assignee: China University of Mining and Technology Beijing CUMTB
Priority date: 2000-12-16
Filing date: 2000-12-16
Publication date: 2001-10-31
Anticipated expiration: 2010-12-16

Abstract

A horizontal double-rotating mixer, mainly composed of a transmission mechanism composed of a motor, a reducer, and a pulley system, and a roller with double-flow spiral blades and a rubber wheel system. On the rubber gear train, it rolls with the rubber gear train at the same time to realize the relative movement of the single-axis outer helical disconnect blade and the inner helical disconnect blade of the drum. The stirring of the material can be continuous and uninterrupted, the productivity is increased by more than 30%, and the noise is lower than 50 decibels, the mixing effect is good, and the uniformity can reach more than 95%. Its structure is compact and reasonable, its transmission is reliable, and its service life is long. It is suitable for mixing various raw materials in coal, building materials, and chemical industries.

Description

Horizontal Double Rotary Mixer

本实用新型涉及卧式双旋搅拌机，尤其适用于煤炭、建材、化工行业加工各种原料的搅拌。The utility model relates to a horizontal double-rotating mixer, which is especially suitable for mixing various raw materials in coal, building materials and chemical industries.

目前国内使用的搅拌机，主要有轴式叶片搅拌机和圆筒式搅拌机，轴式叶片搅拌机包括单轴式和双轴式，其轴上的叶片有长锥形、螺旋形，它们主要依靠轴转动来带动叶片搅拌物料；圆筒式搅拌机则是通过钢齿轮传动带动某一形状的筒体(圆锥体、圆柱体)自身旋转来搅拌物料。上述两种类型的搅拌机由于都是采用单一的运动方式，因而存在着如下不足：1)搅拌物料不均匀，有分层现象，搅拌效果不佳；2)轴式搅拌机消耗功率较大，产量不高；3)采用齿轮传动的搅拌机，噪音大。At present, the mixers used in China mainly include shaft-type blade mixers and cylindrical mixers. Shaft-type blade mixers include single-shaft type and double-shaft type. The blade is driven to stir the material; the cylindrical mixer is driven by a steel gear to drive a cylinder (cone, cylinder) of a certain shape to rotate itself to stir the material. The above two types of mixers have the following disadvantages because they all adopt a single movement mode: 1) the mixing material is uneven, there is stratification, and the mixing effect is not good; 2) the shaft mixer consumes a lot of power and the output is not good. High; 3) The mixer with gear transmission is noisy.

本实用新型的目的是提供一种结构简单，搅拌物料均匀，产量高，噪音小的卧式双旋搅拌机。The purpose of the utility model is to provide a horizontal double-rotation mixer with simple structure, uniform mixing materials, high output and low noise.

本实用新型卧式双旋搅拌机，它包括传动机构，所述的传动机构设在支承架的一端，传动机构通过联轴器分别与两根传动轴联接，滚筒设在支承架上的传动轮上，滚筒内设置有双流式螺旋叶片，主传动轴穿过滚筒并支承在两端的支座上，滚筒两端设有止推盘，止推盘内下方设有止推轮，滚筒的前端设有进料口，尾端设有出料口。The utility model horizontal double-rotating mixer includes a transmission mechanism, the transmission mechanism is arranged at one end of the support frame, the transmission mechanism is respectively connected with two transmission shafts through a coupling, and the roller is arranged on the transmission wheel on the support frame. , the drum is equipped with double-flow spiral blades, the main transmission shaft passes through the drum and is supported on the supports at both ends, the two ends of the drum are provided with thrust plates, the inner and lower parts of the thrust plates are provided with thrust wheels, and the front end of the drum is provided with The feed port is provided with a discharge port at the end.

本实用新型卧式双旋搅拌机，传动机构由电动机，减速器，皮带轮系和增速皮带轮系组成，减速器分别将动力传给设在其一侧的皮带轮系，和另一侧的增速皮带轮系，皮带轮系与分传动轴联接；增速皮带轮系与主传动轴联接。传动轮设置两排，分别设在支座上的传动轴和支承轴上，支座固定在支承架上，传动轮和止推轮均采用橡胶制作。双流式螺旋叶片由内螺旋叶片和外螺旋叶片组成，内外叶片相互叠加或交叉按一定规律分布，内螺旋叶片设在滚筒的内壁上，断开呈八字形排列，外螺旋叶片设在主传动轴上，外螺旋叶片的顶面是断开的，或者是顶面断开且中部开有与叶片弧面一致的月牙口。The utility model is a horizontal double-rotating mixer. The transmission mechanism is composed of a motor, a reducer, a pulley system and a speed-up pulley system. The pulley system is connected with the sub-drive shaft; the speed-increasing pulley system is connected with the main drive shaft. Transmission wheel is provided with two rows, is respectively located on the transmission shaft and the support shaft on the bearing, and bearing is fixed on the supporting frame, and transmission wheel and thrust wheel all adopt rubber to make. The double-flow spiral blades are composed of inner spiral blades and outer spiral blades. The inner and outer blades are superimposed or intersected and distributed according to a certain rule. The inner spiral blades are arranged on the inner wall of the drum, and the disconnection is arranged in a figure-eight shape. The outer spiral blades are arranged on the main drive shaft. On the top, the top surface of the outer helical blade is disconnected, or the top surface is disconnected and there is a crescent opening in the middle that is consistent with the arc surface of the blade.

本实用新型卧式双旋搅拌机，最适用于煤炭、建材、化工行业加工各种原料的搅拌，它主要由传动机构，内设双流式螺旋叶片的滚筒和橡胶轮系组成，主轴工作叶片与滚筒工作叶片按一定规律排列，实现了单轴外螺旋断开叶片与圆筒内螺旋断开叶片双双相对运动，以橡胶轮系实现了传动、支承、止推等综合功能，物料的搅拌可连续不间断，生产率提高30％以上，噪音低于50分贝，拌和效果好，均匀度可达到95％以上，其结构紧凑合理，传动可靠，使用寿命长，具有广泛的实用性。The utility model horizontal double-rotating mixer is most suitable for mixing various raw materials in coal, building materials and chemical industries. The working blades are arranged according to a certain rule, which realizes the relative movement of the single-axis outer helical breaking blade and the inner helical breaking blade of the cylinder. The rubber gear train realizes the comprehensive functions of transmission, support, thrust, etc., and the stirring of materials can be continuous. Intermittent, the productivity is increased by more than 30%, the noise is less than 50 decibels, the mixing effect is good, and the uniformity can reach more than 95%. Its structure is compact and reasonable, its transmission is reliable, its service life is long, and it has wide practicability.

附图说明：Description of drawings:

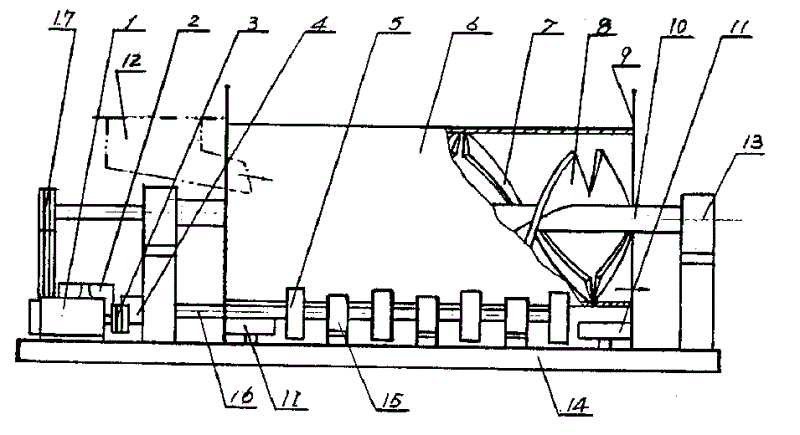

图1是本实用新型主视结构示意图。Fig. 1 is a schematic diagram of the front view of the utility model.

图2是本实用新型侧视结构示意图。Fig. 2 is a side view structural diagram of the utility model.

图3是本实用新型另一实施例外螺旋叶片结构示意图。Fig. 3 is a schematic diagram of the structure of the outer helical blade in another embodiment of the present invention.

下面结合附图对本实用新型的实施例作进一步说明：Embodiments of the utility model are further described below in conjunction with the accompanying drawings:

本实用新型卧式双旋搅拌机，它主要由电动机1，减速器2，皮带轮系3和增速皮带轮系17组成的传动机构，传动轮5，滚筒6和双流式螺旋叶片组成。传动机构设在支承架14的一端，其增速皮带轮系17与传动轴10联接；其皮带轮系3通过联轴器4与传动轴16联接，由传动轴16将动力传给滚筒6。与传动轴16对称设置有支承轴18，传动轴16和支承轴18分别由支座15固定在支承架14的两侧，每根轴上间隔分布四个橡胶制作的传动轮5(共八个)。滚筒6设在传动轮5上，滚筒6内设置有双流式螺旋叶片，双流式螺旋叶片由内螺旋叶片7和外螺旋叶片8组成，内外叶片相互叠加或交叉按一定规律分布。内螺旋叶片7设在滚筒6的内壁上，断开呈八字形排列；外螺旋叶片8设在主传动轴10上，外螺旋叶片8的顶面可以是断开的，图1所示；也可以是叶片8顶面断开且中部开有与叶片弧面一致的月牙口，图3所示。传动轴10穿过滚筒6并支承在滚筒两端的支座13上，支架13固定在支承架14上。滚筒6两端设有止推盘9，止推盘9内下方设有止推轮11，两个止推轮11用橡胶制成，起目止推作用。滚筒6的前端设有进料口12，尾端设有出料口。其工作原理：由电动机1经减速器2带动皮带轮系3，再通过联轴器4传动传动轴16，传动轴16上的4个橡胶传动轮5同时动作，支承在橡胶轮5上的滚筒6和支承轴18上的橡胶轮同时作旋转运动。滚筒6内分别设置的分段断开的呈一定规律分布的八字形内螺旋断开叶片7，使从进料口12进入的物料分成为两路，一路物料作向前运动，在达到断开处时，物料被抛向传动轴10断开的外螺旋叶片8处，与另一路由增速皮带轮系17联动的传动轴10上分布的螺旋叶片8汇合，一起作旋转推进运动。由于传动轴10上的外螺旋叶片8与滚筒6内螺旋叶片7重叠、交叉并与滚筒6相互旋转的转速差异(时差)的作用，使物料被瞬间抛起、剪切、相互滑移而产生碰撞，对滚和拌和，此后物料又被重组及分开以及又向前推进，周而复始地几次重复此过程。The utility model horizontal double-rotating mixer mainly consists of a motor 1, a reducer 2, a transmission mechanism consisting of a pulley system 3 and a speed-increasing pulley system 17, a transmission wheel 5, a drum 6 and a double-flow spiral blade. Transmission mechanism is located at an end of support frame 14, and its speed-increasing pulley system 17 is connected with transmission shaft 10; Be provided with support shaft 18 symmetrically with transmission shaft 16, transmission shaft 16 and support shaft 18 are respectively fixed on the both sides of support frame 14 by bearing 15, and the transmission wheel 5 that four rubbers are made at intervals is distributed on every shaft (totally eight ). The drum 6 is arranged on the transmission wheel 5, and the drum 6 is provided with double-flow spiral blades. The double-flow spiral blades are composed of inner spiral blades 7 and outer spiral blades 8, and the inner and outer blades are superimposed or intersected according to certain rules. The inner helical blade 7 is arranged on the inner wall of the drum 6, and is arranged in a figure-eight shape when disconnected; the outer helical blade 8 is arranged on the main transmission shaft 10, and the top surface of the outer helical blade 8 can be disconnected, as shown in Fig. 1; It may be that the top surface of the blade 8 is disconnected and a crescent opening consistent with the arc surface of the blade is opened in the middle, as shown in FIG. 3 . The transmission shaft 10 passes through the drum 6 and is supported on the bearings 13 at both ends of the drum, and the bracket 13 is fixed on the supporting frame 14 . Cylinder 6 two ends are provided with thrust plate 9, and thrust plate 9 inner bottom is provided with thrust wheel 11, and two thrust wheels 11 are made of rubber, play the role of thrust. The front end of the drum 6 is provided with a feed port 12, and the tail end is provided with a discharge port. Its working principle: the motor 1 drives the pulley system 3 through the reducer 2, and then drives the transmission shaft 16 through the coupling 4. The four rubber transmission wheels 5 on the transmission shaft 16 move at the same time, and the roller 6 supported on the rubber wheel 5 And the rubber wheel on the supporting shaft 18 is rotated simultaneously. The splay-shaped internal spiral breaking blades 7 arranged in the drum 6 are divided into sections and distributed regularly, so that the material entering from the feed port 12 is divided into two paths, and the materials in one path move forward, and when they reach the breaking point At the same time, the material is thrown to the outer spiral blade 8 where the transmission shaft 10 is disconnected, and merges with the spiral blade 8 distributed on the transmission shaft 10 linked by the speed-increasing pulley system 17, and rotates and propels together. Due to the effect of the speed difference (time difference) between the outer helical blade 8 on the transmission shaft 10 and the inner helical blade 7 of the drum 6 overlapping and intersecting and rotating with the drum 6, the materials are instantly thrown up, sheared, and slipped against each other. Collision, rolling and mixing, after which the material is reorganized and separated and pushed forward again, and this process is repeated several times in a circle.

Claims

1. horizontal two helical-structure agitator, it comprises transmission mechanism, it is characterized in that: described transmission mechanism is located at an end of bearing support (14), transmission mechanism connects with power transmission shaft (10) and power transmission shaft (16) respectively by shaft coupling (4), cylinder (6) is located on the drive (5) on the bearing support (14), cylinder is provided with the double-current method helical blade in (6), power transmission shaft (10) passes cylinder (6) and is bearing on the bearing (13) at two ends, cylinder (6) two ends are provided with thrust button (9), the below is provided with thrust wheel (11) in the thrust button (9), the front end of cylinder (6) is provided with charging aperture (12), and tail end is provided with discharging opening.

2. horizontal two helical-structure agitator according to claim 1, it is characterized in that: described transmission mechanism is by motor (1), decelerator (2), belt train (3) and speedup belt train (17) are formed, decelerator (2) is passed to power the belt train (3) that is located at the one side and the speedup belt train (17) of opposite side respectively.

3. horizontal two helical-structure agitator according to claim 2 is characterized in that: described belt train (3) connects with power transmission shaft (16); Speedup belt train (8) connects with power transmission shaft (10).

4. according to claim 1 or 3 described horizontal two helical-structure agitator, it is characterized in that: described drive (5) is provided with two rows, is located at respectively on the power transmission shaft (16) and bolster (18) on the bearing (15), and bearing (15) is fixed on the bearing support (14).

5. according to claim 1 or 3 described horizontal two helical-structure agitator, it is characterized in that: described two row's drives (5) and thrust wheel (11) all adopt rubber to make.

6. horizontal two helical-structure agitator according to claim 1 is characterized in that: described double-current method helical blade is made up of internal helical blades (7) and external spiral blade (8), the interior outer leafs mutual superposition or the distribution according to certain rules that intersects.

7. horizontal two helical-structure agitator according to claim 6 is characterized in that: described internal helical blades (7) is located on the inwall of cylinder (6), disconnects being the splayed arrangement.

8. horizontal two helical-structure agitator according to claim 6 is characterized in that: described external spiral blade (8) is located on the final drive shaft (10).

9. according to claim 6 or 8 described horizontal two helical-structure agitator, it is characterized in that: the end face of described external spiral blade (8) disconnects.

10. according to claim 6 or 8 described horizontal two helical-structure agitator, it is characterized in that: described external spiral blade (8) end face disconnects and the middle part has the moon age of a draught animal consistent with the blade cambered surface.
