Claims (20)

1. Un composé de la formule
Figure imgb0225
où
Q est
Figure imgb0226
Figure imgb0227
Figure imgb0228
ou Q' est
Figure imgb0229
Figure imgb0230
Figure imgb0231
W est O ou S;
W' est O ou S;
R est H, F, Cl, CH3 ou OCH3;
R1 est H, F, CI, Br, CH3, CF3 ou OCH3;
R2, R3, R5, R9, R10, R11, R12 et R17 sont indépendamment H ou CH3;
R4, R6, R7 et R8 sont indépendamment H, CH3 ou OCH3;
R13, R14, R15 et R16 sont indépendamment CH3 ou OCH3;
R18 est H ou CH3;
R19 est H ou CH3;
R20 est H ou CH3;
R21 est H ou CH3;
R22 est H ou CH3;
R23 est H ou CH3;
R24 est H, CH3, C2H5, CI, Br, OCH3 ou OC2H5;
R25 est H, CH3, C2H5, CI, Br, OCH3 ou OC2H15;
R26 est H, CH3, C2H5, CI, Br, OCH3, OC2H5 ou CO2CH3;
R27 est H ou CH3;
R28 est H ou CH3;
A est
Figure imgb0232
X est CH3, OCH3 ou CI;
Y est CH3, C2H5, CH2OCH3, OCH3, OC2H5, CH(OCH3)2, SCH3, CF3, NH2, NHCH3, N(CH3)2; OCH2CH2OCH3, OCH2CF3 ou
Figure imgb0233
Y1 est CH3, C2H5, CH2OCH3, OCH3, OC2H5, CH(OCH3)2, NH2, NHCH3 ou N(CH3)2;
Z est CH ou N;
X1 est CH3 OCH3 ou CI;
G est O ou CH2;
X2 est C1―C3 alkyle ou CH2CF3;
Y2 est CH3O, C2H5O, CH3S ou C2H5S;

et leurs sels convenant pour l'agriculture;
avec les conditions que:
1) quand W est S, alors R17 est H,
A est
Figure imgb0234
Y est CH3, OCH3, C2H5, CH2OCH3, CH(OCH3)2 ou
Figure imgb0235
2) quand Q est
Figure imgb0236
alors R24 est H, CH3 ou C2H5; R25 est H, CH3 ou C2H5; et R26 est H, CH3, C2H5 ou ―CO2CH3;
3) quand l'un de R24, R25, R26 est autre que H, alors les deux autres substituants sont H ou CH3;
4) le nombre total d'atomes de carbone dans R18, R19, R20; R21; R22; R23; R27 et R28 est inférieur ou égal à 4;
5) quand X est CI, alors Z est CH et Y ou Y1 est OCH3, NH2, OC2H5, NHCH3 ou N(CH3)2; et
6) quand R est CH3, alors R est dans la position 3,4 ou 5 du noyau benzénique, par rapport au groupe sulfonamide dans la position 1.
2. Les composés selon la revendication 1, formule I, dans lesquels W est O.
3. Les composés selon la revendication 2, dans lesquels R1 et R17 sont H.
4. Les composés selon la revendication 3, dans lesquels R24 est H, CH3 ou C2H5; R25 est H, CH3 ou C2H5; et R26 est H, CH3, C2H5 ou ―CO2CH3.
5. Les composés selon la revendication 4, dans lesquels Y est CH3, CH2OCH3, OCH3, OC2H5, CH(OCH3)2 ou
Figure imgb0237
et A est
Figure imgb0238
6. Les composés selon la revendication 1, formula la, dans lesquels R et R17 sont H.
7. Les composés selon la revendication 6, dans lesquels Y1 est CH3, OCH3, CH2OCH3 ou N(CH3)2.
8. Les composés selon la revendication 4, dans lesquels W' est O.
9. Les composés selon la revendication 4, dans lesquels W' est S.
10. Les composés selon la revendication 7, dans lesquels Q' est une pyridine substituée.
11. Les composés selon la revendication 7, dans lesquels Q' est une pyrimidine substituée.
12. Les composés selon la revendication 7, dans lesquels Q' est un pyrazine substituée.
13. Les composés selon la revendication 7, dans lesquels Q' est une triazine substituée.
14. Les composé selon la revendication 1, choisi parmi le N - [(4,6 - diméthylpyrimidin - 2 - yl)-aminocarbonyl] - 2 - (tétrahydrofuran - 2 - yl)benzènesulfonamide; le N - [(4 - méthoxy - 6 - méthyle- pyrimidin - 2 - yl)aminocarbonyl] - 2 - (tétrahydrofuran - 2 - yl)benzènesulfonamide; le N - [(4,6 - diméthoxypyrimidin - 2 - yl)aminocarbonyl] - 2 - (tétrahydrofuran - 2 - yl)benzènesulfonamide; le N - [(4 - chloro - 6 - méthoxypyrimidin - 2 - yl)aminocarbonyl] - 2 - (tétrahydrofuran - 2 - yl)-benzènesulfonamide; le N - [(4,6 - diméthoxy - 1,3,5 - triazin - 2 - yl)aminocarbonyl] - 2 - (tétrahydrofuran - 2 - yl)benzènesulfonamide; le N - [(4 - méthoxy - 6 - méthyl - 1,3,5 - triazin - 2 - yl)aminocarbonyl] - 2 - tétrahydrofuran - 2 - -yl)benzènesulfonamide; ou un de leurs sels convenant pour l'agriculture.
15. Un composé selon la revendication 1, choisi parmi le N - [(4 - méthoxy - 6 - méthylpyrimidin - 2 - yl)aminocarbonyl] - 2 - (2 - pyridinyl)benzènesulfonamide; le N - [(4,6-diméthylpyrimidin - 2 - yl)aminocarbonyl] - 2 - (2 - pyridinyl)benzènesulfonamide; le N - [(4,6-diméthoxy - pyrimidin - 2 - yl)-aminocarbonyl] - 2 - (2 - pyridinyl)benzènesulfonamide; ou un de leurs sels convenant pour l'agriculture.
16. Un composé selon la revendication 1, qui est le N - [(4 - méthoxy - 6 - méthylpyrimidin - 2 - yl)aminocarbonyl] - 2 - (2 - pyrimidinyl)benzènesulfonamide; ou un de ses sels convenant pour l'agriculture.
17. Une composition utilisable pour lutter contre le croissance de végétation indésirable comprenant une quantité efficace d'un composé à activité herbicide et au moins un des ingrédients suivants; agent tensio-actif, diluant solide ou liquide, caractérisée en ce que le composé à activité herbicide comprend un composé selon l'une quelconque des revendications 1 à 16.
18. Un procédé de lutte contre la croissance de végétation indésirable en appliquant au lieu à protéger une quantité efficace d'une composé à activité herbicide, caractérisé en ce que le composé à activité herbicide comprend un composé selon l'une quelconque des revendications 1 à 16.
19. Un procédé pour régler la croissance de plantes en appliquant au lieu de ces plantes une quantité efficace, mais substantiellement non-phytotoxique, d'un agent de réglage de la croissance de plantes, caractérisé en ce que l'agent de réglage de la croissance des plantes comprend un composé selon l'une quelconque des revendications 1 à 16.
20. Un procédé de préparation d'un composé de la revendication 1, qui comprend
(a) la réaction d'un benzènesulfonamide de formule
Figure imgb0239
avec un méthyl hétéroaryl carbamate de formule
Figure imgb0240
en présence d'une quantité équimolaire de triméthylaluminium pour obtenir un composé de formule (I) où R1, R17, Q et A sont tels que définis dans la revendication 1 et W est O; ou
(b) la réaction d'un isocyanate ou isothiocyanate de benzènesulfonyle de formule
Figure imgb0241
avec un aminohétérocycle de formule
Figure imgb0242
où R1, R17, W et A sont tels que définis dans la revendication 1 et Q est choisi parmi Q-1, Q―2 ou Q-6 à Q-11; ou
(c) la réaction du sulfonamide de formule (II) avec un isothiocyanate hétérocyclique de formule
Figure imgb0243
où A est tel que défini dans la revendication 1; ou
(d) la réaction d'un sulfonamide de formule
Figure imgb0244

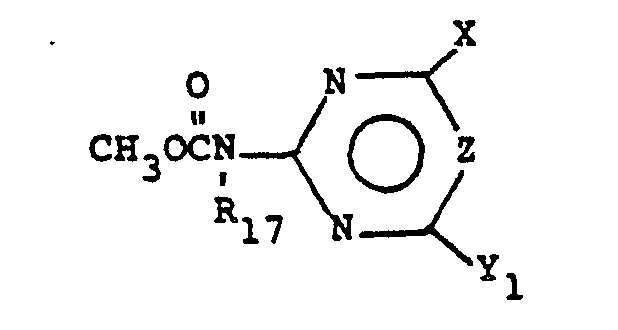

avec un méthyl pyrimidinyl carbamate ou un méthyl triazinyl carbamate de formule
Figure imgb0245
en présence d'une quantité équimolaire de triméthylaluminium, où R1, R17, Q', X, Y et Z sont tels que définis dans la revendication 1, pour obtenir un produit de formule (la).
