EP0601663A1 - Combinaison d'un rail de rideau et d'un patin; patin et rail de rideau utilisés dans la combinaison et méthode d'insertion de patins dans un rail de rideau - Google Patents

Combinaison d'un rail de rideau et d'un patin; patin et rail de rideau utilisés dans la combinaison et méthode d'insertion de patins dans un rail de rideau Download PDF

Info

Publication number
EP0601663A1
EP0601663A1 EP93203423A EP93203423A EP0601663A1 EP 0601663 A1 EP0601663 A1 EP 0601663A1 EP 93203423 A EP93203423 A EP 93203423A EP 93203423 A EP93203423 A EP 93203423A EP 0601663 A1 EP0601663 A1 EP 0601663A1
Authority
EP
European Patent Office
Prior art keywords
head
glider
gliders
width
rail
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP93203423A
Other languages
German (de)
English (en)
Other versions
EP0601663B1 (fr
Inventor
Henrikus Wilhelmus Frederikus Bosgoed
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Forest Group Nederland BV
Original Assignee
Forest Group Nederland BV
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Family has litigation
First worldwide family litigation filed litigation Critical https://patents.darts-ip.com/?family=19861612&utm_source=google_patent&utm_medium=platform_link&utm_campaign=public_patent_search&patent=EP0601663(A1) "Global patent litigation dataset” by Darts-ip is licensed under a Creative Commons Attribution 4.0 International License.
Application filed by Forest Group Nederland BV filed Critical Forest Group Nederland BV
Publication of EP0601663A1 publication Critical patent/EP0601663A1/fr
Application granted granted Critical
Publication of EP0601663B1 publication Critical patent/EP0601663B1/fr
Anticipated expiration legal-status Critical
Revoked legal-status Critical Current

Links

Images

Classifications

    • A—HUMAN NECESSITIES
    • A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47H—FURNISHINGS FOR WINDOWS OR DOORS
    • A47H15/00—Runners or gliders for supporting curtains on rails or rods
    • A47H15/04—Gliders

Definitions

  • the invention relates to a combination of a metal curtain rail provided with a slot with a predetermined slot-width, and a glider having a head with a head-width greater than the slot-width and beneath it a shaft portion with a shaft-width smaller that the slot-width, the sum of the head-width and the shaft-width being greater than twice the slot-width, and the head and shaft being provided with a central slit.
  • the invention aims at removing aforementioned disadvantages. Accordingly the invention provides that the upper surface of the head is round with a downward angle of inclination that increases towards the outside of the head.
  • the invention also comprises a glider which is applicable in the aforementioned combination and which is fitted with a head and a shaft, provided with a central slit, and that is characterized in that the upper surface of the head is round with a downward angle of inclination that increases towards the outside of the head.
  • the round part of the head's upper surface comprises more than 70% of the width of the head portion, from the top side of the slit to the outside of the head portion. Running the head portion through the slot becomes easier with a larger round part. A small round part results only in a stiffer action, but from 70% of the indicated width, satisfactory results are possible, at least so far as is known.
  • the upper surface changes close to the outside of the head into a surface with an angle of inclination which is in good approximation perpendicular. It is observed that in said German Gebrauchsmuster something similar is described, but in that case said surface has a downward rounded shape. As a result, when completing the snap action, only a very small length of said surface remains and, in consequence, danger arises of damage to the glider.
  • the round part of the upper surface and the surface with an approximately perpendicular angle of inclination extend over the entire length of the glider.
  • the central slit converges with the greatest width at the head's upper surface.
  • a preferable construction of such a set of gliders is constituted in that, at their sides averted from the head, the gliders are provided with an moulded broadening lip that is narrow where it is connected to the gliders, and that at its other side is connected to a connecting cord provided with a holding means.
  • the invention also comprises a method of inserting the gliders into the curtain rail, characterized in that first a number of sets is inserted at the end of the rail, in such way that the total amount of gliders less the amount of gliders of a set is smaller than the amount required for said rail, and that the additional gliders are inserted through the slot of the rail when the curtain is connected to the gliders.
  • the glider 1 has a head portion 3, the upper surface 4 of which is round and preferably forms in good approximation a circular cylinder. By 5 a surface is indicated that serves to enhance the snap action. In addition, a downward narrowing slit 7 is provided, the side walls of which may enclose an angle of for example 10°. Stopping members 8, known per se, located at the lower end of the shaft portion 6, serve to prevent the glider from penetrating too deeply into the rail.
  • a curtain rail 2 is schematically shown together with a slot located between built-up edges 11.
  • the glider is clipped into the rail while deforming the slit 7.
  • the upper side 4 from the top down consists first of a round part and subsequently of a vertical surface 5.
  • the round part comprises the entire surface between the top edge of the slit 7 and the surface 5.
  • a preferably narrow flat surface may be situated between the curve and the edge of the slit 7.
  • a small angle may exist in the direction of the round part's surface and an adjacent surface, such as 5 or said narrow flat surface.
  • the surface of the round part is preferably over 70% of the surface, viewed from above, from the edge of the slit 7 to the outside of head portion 3.
  • the arc angle of the round part is preferably 60-90°.

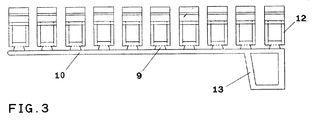

  • a lip 9 is placed, which at its connection with the eye 12 is very narrow and at its broader lower end is provided with a cord 10.
  • said cord 10 is connected to a holding member 13, by which the lips 9 can be torn loose from the eyes 12, which is particularly easy when the gliders have already been placed in the rail.
  • the invention is not restricted to the drawn construction example, but that variations hereon can be applied, e.g. in the shape of the slit 7 and the curvature of the upper surface 4.
  • the material used for the glider in accordance with the invention can be chosen within relatively wide margins: it may be any rigid elastic synthetic material, such as polyvinyl chloride, polyethylene, polystyrene and so on.

Landscapes

  • Curtains And Furnishings For Windows Or Doors (AREA)
