Abstract

Serrure pour un ouvrant de véhicule automobile, comportant un pêne pivotant (6) qui coopère avec une gâche (4) agencée dans la carrosserie, le pêne (22) pouvant être bloqué au moyen d'un cliquet, le cliquet pouvant pivoter d'une position de blocage à une position de déblocage, au moyen d'un moteur électrique (9) équipé d'un engrenage (10 ), serrure dans laquelle :

  • a) l'engrenage (10) entraíne un disque rotatif à manetons (11);
  • b) le maneton (13, 14) s'engrène sur un entraíneur (18) du cliquet, de telle sorte que
  • c) lors de l'ouverture, le maneton (13, 14) fait d'abord pivoter le cliquet dans sa position de déblocage, et
  • d) le disque (11) continue ensuite à tourner jusqu'à ce que le maneton (13, 14) se trouve hors de coopération avec l'entraíneur du cliquet et le cliquet est ramené par son ressort (21) dans sa position de blocage,
    • caractérisé par le fait que le cliquet comporte :
    • un entraíneur en forme de pion,
    • deux leviers de liaison (15, 17), prévus entre le disque (11) et le cliquet.

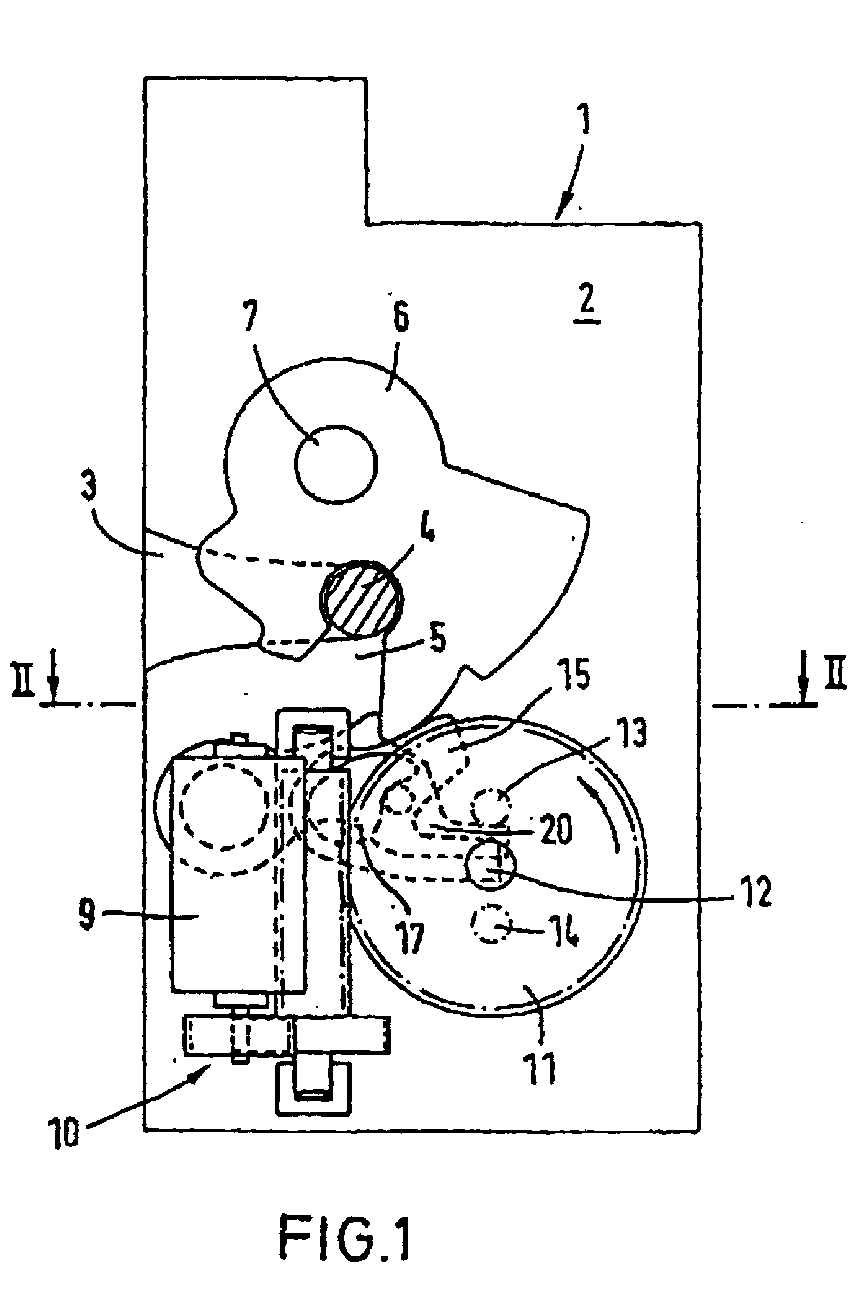

    Figure 00000001
    Lock for a motor vehicle opening, comprising a pivoting bolt (6) which cooperates with a keeper (4) arranged in the bodywork, the bolt (22) being able to be locked by means of a pawl, the pawl being able to pivot by a locking position to an unlocking position, by means of an electric motor (9) equipped with a gear (10), lock in which:
  • a) the gear (10) drives a rotary crankpin disc (11);
  • b) the crank pin (13, 14) meshes with a catch (18) of the pawl, so that
  • c) during opening, the crank pin (13, 14) first rotates the pawl to its unlocking position, and
  • d) the disc (11) then continues to rotate until the crank pin (13, 14) is out of cooperation with the pawl driver and the pawl is returned by its spring (21) to its locking position ,
    • characterized by the fact that the pawl comprises:
    • a pawn-shaped coach,
    • two connecting levers (15, 17), provided between the disc (11) and the pawl.
    Figure 00000001
