Dirt removing apparatus for fiber cleaning aggregates Download PDF

Info

Publication number
EP0894877A3
EP0894877A3 EP98810687A EP98810687A EP0894877A3 EP 0894877 A3 EP0894877 A3 EP 0894877A3 EP 98810687 A EP98810687 A EP 98810687A EP 98810687 A EP98810687 A EP 98810687A EP 0894877 A3 EP0894877 A3 EP 0894877A3
Authority
EP
European Patent Office
Prior art keywords
edge
fiber
separating
air
removing apparatus
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP98810687A
Other languages
German (de)
French (fr)
Other versions
EP0894877A2 (en
Inventor
René Waeber
Walter Schlepfer
Beat Näf
Christian Sauter
Jürg Faas
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Maschinenfabrik Rieter AG
Original Assignee
Maschinenfabrik Rieter AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority claimed from DE29810665U external-priority patent/DE29810665U1/en
Priority claimed from DE29810964U external-priority patent/DE29810964U1/en
Application filed by Maschinenfabrik Rieter AG filed Critical Maschinenfabrik Rieter AG
Publication of EP0894877A2 publication Critical patent/EP0894877A2/en
Publication of EP0894877A3 publication Critical patent/EP0894877A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • D—TEXTILES; PAPER
    • D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
    • D01G—PRELIMINARY TREATMENT OF FIBRES, e.g. FOR SPINNING
    • D01G15/00—Carding machines or accessories; Card clothing; Burr-crushing or removing arrangements associated with carding or other preliminary-treatment machines
    • D01G15/02—Carding machines
    • D01G15/12—Details
    • D01G15/14—Constructional features of carding elements, e.g. for facilitating attachment of card clothing
    • D01G15/24—Flats or like members
    • D—TEXTILES; PAPER
    • D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
    • D01G—PRELIMINARY TREATMENT OF FIBRES, e.g. FOR SPINNING
    • D01G15/00—Carding machines or accessories; Card clothing; Burr-crushing or removing arrangements associated with carding or other preliminary-treatment machines
    • D01G15/76—Stripping or cleaning carding surfaces; Maintaining cleanliness of carding area
    • D01G15/80—Arrangements for stripping cylinders or rollers
    • D01G15/805—Arrangements for stripping cylinders or rollers by suction or blowing
    • D—TEXTILES; PAPER
    • D01—NATURAL OR MAN-MADE THREADS OR FIBRES; SPINNING
    • D01G—PRELIMINARY TREATMENT OF FIBRES, e.g. FOR SPINNING
    • D01G23/00—Feeding fibres to machines; Conveying fibres between machines
    • D01G23/02—Hoppers; Delivery shoots

Landscapes

  • Engineering & Computer Science (AREA)
  • Textile Engineering (AREA)
  • Preliminary Treatment Of Fibers (AREA)
  • Treatment Of Fiber Materials (AREA)

Abstract

In einer faserverarbeitenden Maschine mit einer Ausscheidekante, worin sowohl Faser wie auch Luft in einer im wesentlichen vorbestimmten Transportrichtung an der Kante vorbeigeführt werden und Schmutzpartikel selektiv mittels der Kante (616) aus dem Faser/Luft-Strom (FLS) herabgeführt wird, ist das Einstellen eines Ausscheideelementes (104,106,108) insbesondere das Einstellen der Winkelstellung einer Ausscheidefläche (620) und/oder der Eintauchtiefe stromaufwärts von der Ausscheidefläche mit einer Änderung der Arbeitsspaltbreite (622) stromaufwärts vom Ausscheidespalt (622) verknüpft. Es kann auch mindestens eine Massnahme getroffen werden, um einen Druckabfall und/oder Luftturbulenzen stromabwärts (in der Transportrichtung) von der Kante möglichst zu eliminieren. Es wird stromabwärts von der Kante ein möglichst laminares Strömungsbild erzeugt bzw. aufrechterhalten.

Figure 00000001

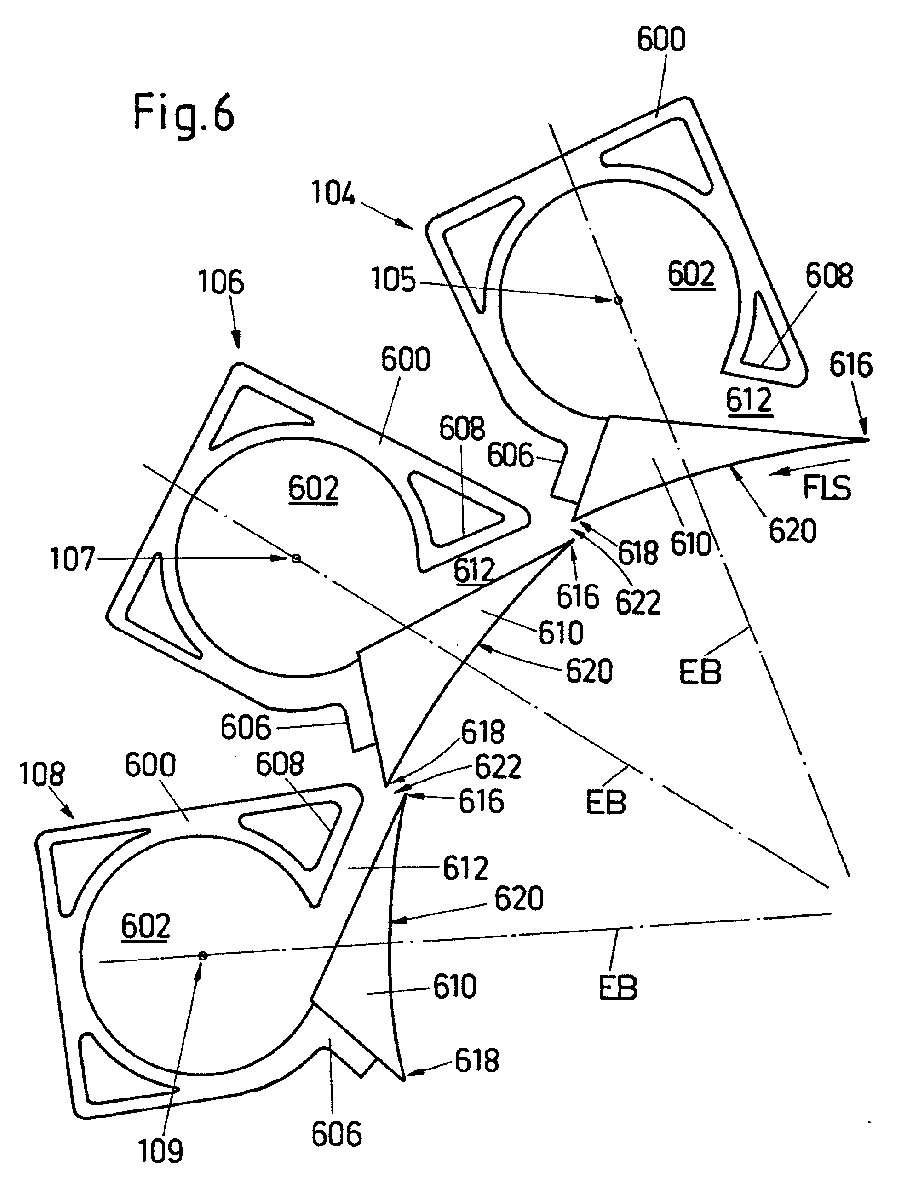

In a fiber processing machine with a separation edge, in which both fiber and air are guided past the edge in a substantially predetermined transport direction and dirt particles are selectively removed from the fiber / air flow (FLS) by means of the edge (616) a separating element (104, 106, 108), in particular the setting of the angular position of a separating surface (620) and / or the immersion depth upstream of the separating surface is linked to a change in the working gap width (622) upstream of the separating gap (622). At least one measure can also be taken to eliminate as far as possible a pressure drop and / or air turbulence downstream (in the direction of transport) from the edge. A flow pattern that is as laminar as possible is generated or maintained downstream of the edge.
