EP0904865A3 - Method and apparatus for forming a metal band having areas of different thickness across its width - Google Patents

Method and apparatus for forming a metal band having areas of different thickness across its width Download PDF

Info

Publication number
EP0904865A3
EP0904865A3 EP98118246A EP98118246A EP0904865A3 EP 0904865 A3 EP0904865 A3 EP 0904865A3 EP 98118246 A EP98118246 A EP 98118246A EP 98118246 A EP98118246 A EP 98118246A EP 0904865 A3 EP0904865 A3 EP 0904865A3
Authority
EP
European Patent Office
Prior art keywords
areas
width
forming
different thickness
metal band
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP98118246A
Other languages
German (de)
French (fr)
Other versions
EP0904865A2 (en
EP0904865B1 (en
Inventor
Friedrich Prof. Dr.-Ing. Behr
Klaus Dipl.-Ing. Blümel
Thomas Dr.-Ing. Flehmig
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
ThyssenKrupp Steel Europe AG
Original Assignee
ThyssenKrupp Stahl AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by ThyssenKrupp Stahl AG filed Critical ThyssenKrupp Stahl AG
Publication of EP0904865A2 publication Critical patent/EP0904865A2/en
Publication of EP0904865A3 publication Critical patent/EP0904865A3/en
Application granted granted Critical
Publication of EP0904865B1 publication Critical patent/EP0904865B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B21—MECHANICAL METAL-WORKING WITHOUT ESSENTIALLY REMOVING MATERIAL; PUNCHING METAL
    • B21H—MAKING PARTICULAR METAL OBJECTS BY ROLLING, e.g. SCREWS, WHEELS, RINGS, BARRELS, BALLS
    • B21H8/00—Rolling metal of indefinite length in repetitive shapes specially designed for the manufacture of particular objects, e.g. checkered sheets
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B21—MECHANICAL METAL-WORKING WITHOUT ESSENTIALLY REMOVING MATERIAL; PUNCHING METAL
    • B21B—ROLLING OF METAL
    • B21B1/00—Metal-rolling methods or mills for making semi-finished products of solid or profiled cross-section; Sequence of operations in milling trains; Layout of rolling-mill plant, e.g. grouping of stands; Succession of passes or of sectional pass alternations
    • B21B1/08—Metal-rolling methods or mills for making semi-finished products of solid or profiled cross-section; Sequence of operations in milling trains; Layout of rolling-mill plant, e.g. grouping of stands; Succession of passes or of sectional pass alternations for rolling structural sections, i.e. work of special cross-section, e.g. angle steel
    • B21B1/0805—Flat bars, i.e. having a substantially rectangular cross-section
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B21—MECHANICAL METAL-WORKING WITHOUT ESSENTIALLY REMOVING MATERIAL; PUNCHING METAL
    • B21B—ROLLING OF METAL
    • B21B1/00—Metal-rolling methods or mills for making semi-finished products of solid or profiled cross-section; Sequence of operations in milling trains; Layout of rolling-mill plant, e.g. grouping of stands; Succession of passes or of sectional pass alternations
    • B21B1/22—Metal-rolling methods or mills for making semi-finished products of solid or profiled cross-section; Sequence of operations in milling trains; Layout of rolling-mill plant, e.g. grouping of stands; Succession of passes or of sectional pass alternations for rolling plates, strips, bands or sheets of indefinite length
    • B21B1/227—Surface roughening or texturing

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • Shaping Metal By Deep-Drawing, Or The Like (AREA)
  • Metal Rolling (AREA)
  • Bending Of Plates, Rods, And Pipes (AREA)

Abstract

Die Erfindung bezieht sich auf das Herstellen eines Metallbandes mit eingeformten dünneren Streifen. Dazu wird das Band B durch einen Ziehspalt 1,2 gezogen, der von der Stirnseite einer geneigt angestellten Arbeitsrolle 3 und einer Stützrolle 4 gebildet wird, die als Arbeitswalze ausgebildet sein kann. Beim Ziehen durch diesen Arbeitsspalt 1,2 wird von den beiden Rollen 3,4 auf das Band B eine Walzkraft und gleichzeitig eine Zugkraft quer zur Zugrichtung ausgeübt derart, daß das verdrängte Material in den auszudünnenden Bereichen praktisch ausschließlich quer zur Zugrichtung fließt.

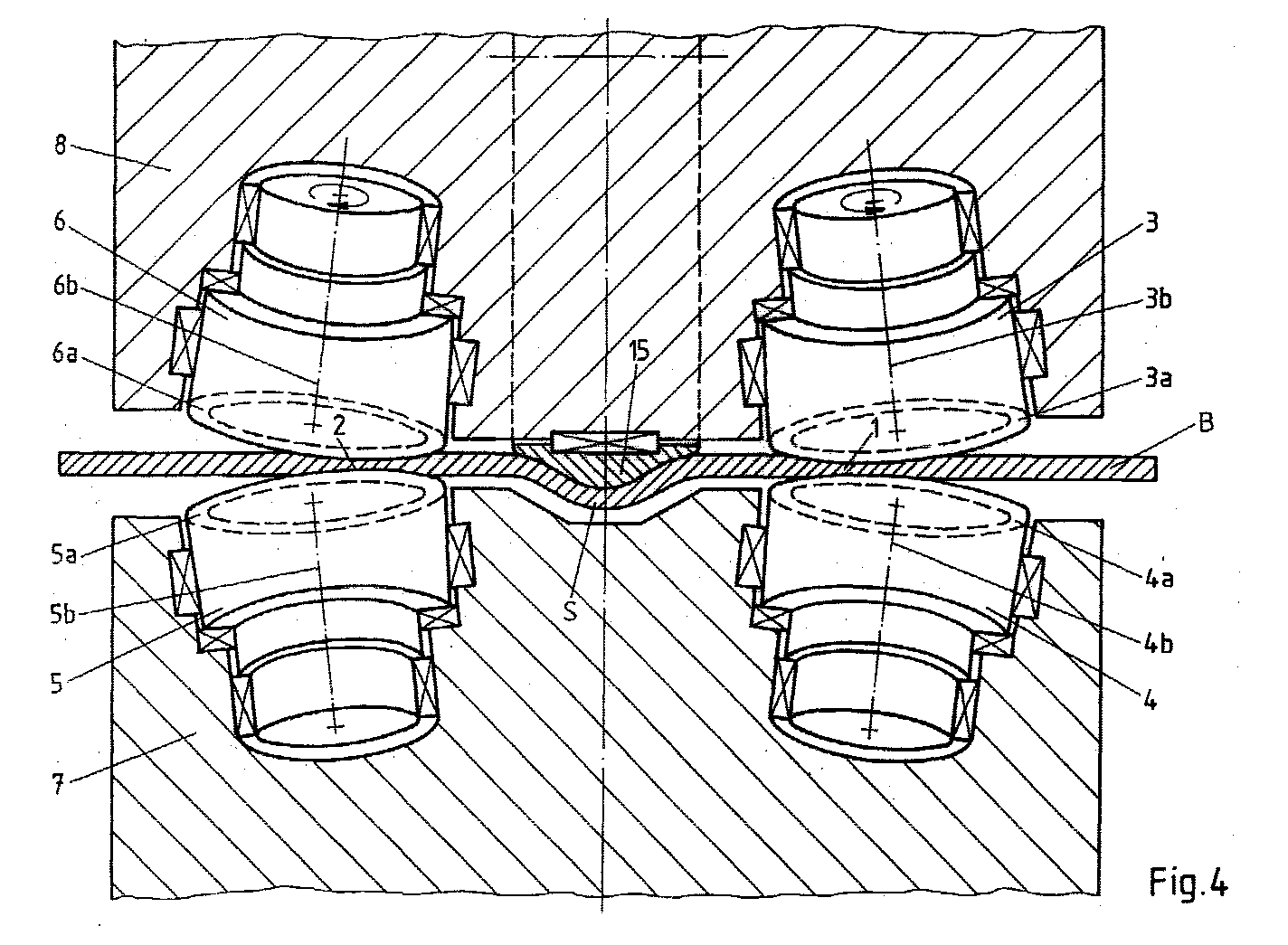

Figure 00000001
The invention relates to the production of a metal strip with molded thinner strips. For this purpose, the band B is drawn through a drawing gap 1, 2, which is formed by the end face of an inclined working roll 3 and a support roll 4, which can be designed as a working roll. When pulling through this working gap 1, 2, a rolling force and at the same time a tensile force is exerted on the belt B transversely to the tensile direction in such a way that the displaced material flows practically exclusively in the areas to be thinned transversely to the tensile direction.
Figure 00000001
EP98118246A 1997-09-30 1998-09-25 Method and apparatus for forming a metal band having areas of different thickness across its width Expired - Lifetime EP0904865B1 (en)
