EP1120862A3 - Steckdose mit Kindersicherung - Google Patents

Steckdose mit Kindersicherung Download PDF

Info

Publication number
EP1120862A3
EP1120862A3 EP00128029A EP00128029A EP1120862A3 EP 1120862 A3 EP1120862 A3 EP 1120862A3 EP 00128029 A EP00128029 A EP 00128029A EP 00128029 A EP00128029 A EP 00128029A EP 1120862 A3 EP1120862 A3 EP 1120862A3
Authority
EP
European Patent Office
Prior art keywords
socket
housing part
receptacle
security function
child security
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP00128029A
Other languages
English (en)
French (fr)
Other versions
EP1120862A2 (de
Inventor
Horst Schneckmann
Peter Dipl.-Ing. Kauf
Erwin Schmitt
Thomas Dipl-Ing. Langenscheid
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Tehalit GmbH
Original Assignee
Tehalit GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Tehalit GmbH filed Critical Tehalit GmbH
Publication of EP1120862A2 publication Critical patent/EP1120862A2/de
Publication of EP1120862A3 publication Critical patent/EP1120862A3/de
Withdrawn legal-status Critical Current

Links

Classifications

    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01R—ELECTRICALLY-CONDUCTIVE CONNECTIONS; STRUCTURAL ASSOCIATIONS OF A PLURALITY OF MUTUALLY-INSULATED ELECTRICAL CONNECTING ELEMENTS; COUPLING DEVICES; CURRENT COLLECTORS
    • H01R13/00—Details of coupling devices of the kinds covered by groups H01R12/70 or H01R24/00 - H01R33/00
    • H01R13/44—Means for preventing access to live contacts
    • H01R13/447—Shutter or cover plate
    • H01R13/453—Shutter or cover plate opened by engagement of counterpart
    • H01R13/4532—Rotating shutter

Landscapes

  • Details Of Connecting Devices For Male And Female Coupling (AREA)
  • Lock And Its Accessories (AREA)
  • Connector Housings Or Holding Contact Members (AREA)
  • Buckles (AREA)
  • Professional, Industrial, Or Sporting Protective Garments (AREA)
  • Seats For Vehicles (AREA)

Abstract

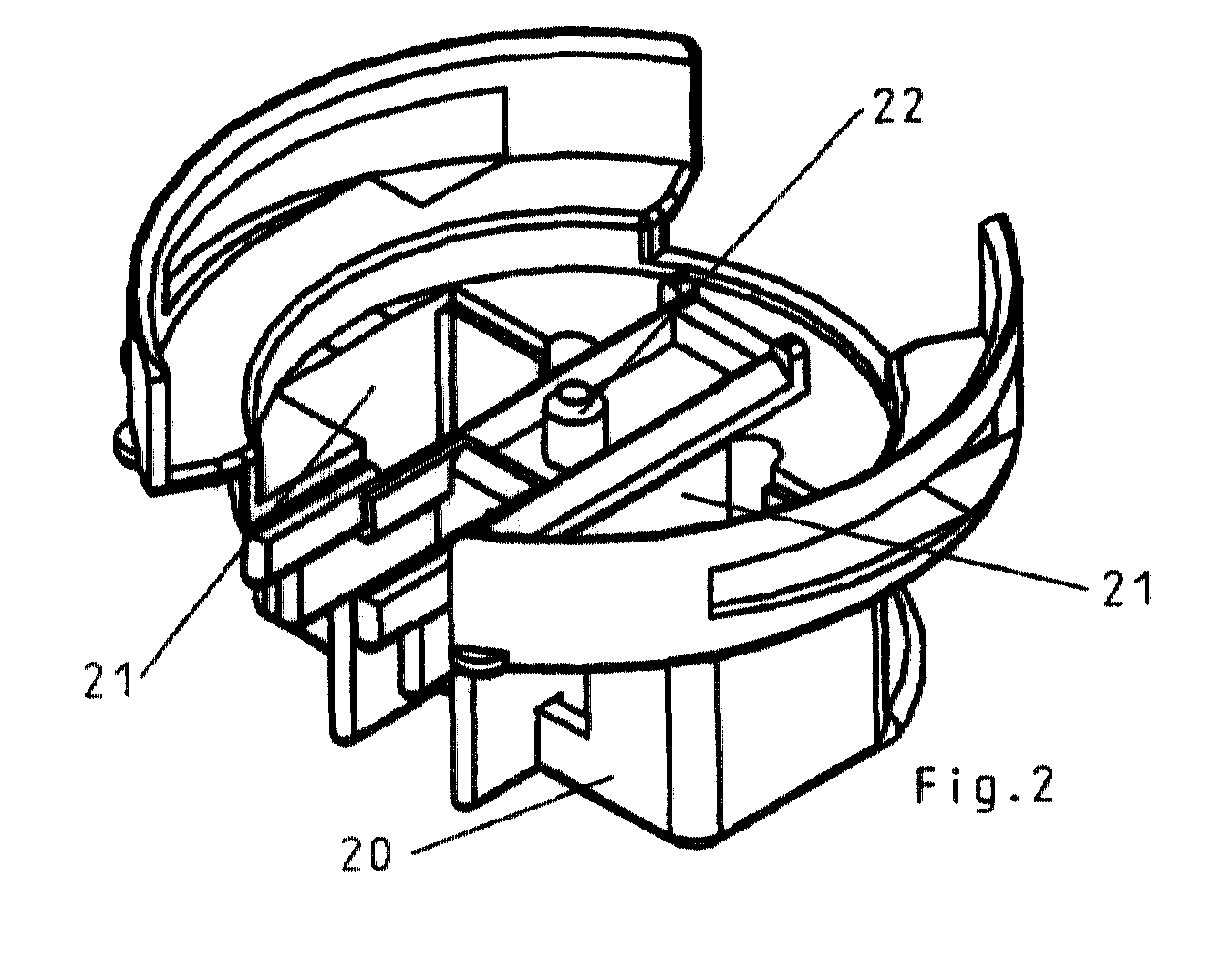

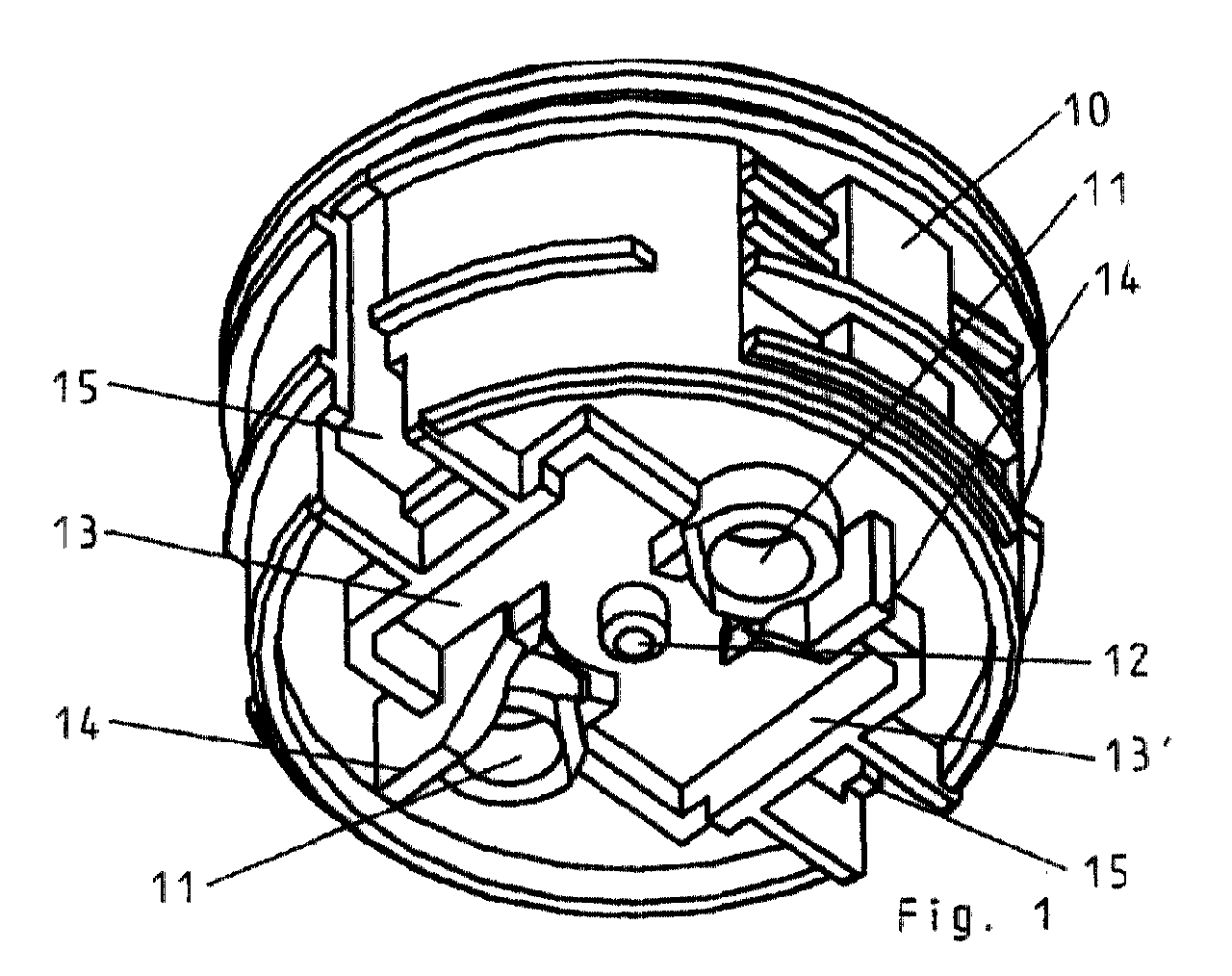

Die erfindungsgemäße Steckdose mit Kindersicherung besteht aus nur vier Teilen: einem Steckdosenoberteil (10), einem Steckdosenunterteil (20), einem zweiflügeligen, drehbar gelagerten Schutzsteg (30) und einer Feder (40), die den Schutzsteg (30) in seine Grundstellung dreht. Schutzsteg (30) und Feder (40) werden durch an das Gehäuseoberteil (10) bzw. das Gehäuseunterteil (20) angeformte Lagerzapfen (12, 22) und Haltekäfige (13) geführt. Nach dem Verrasten von Gehäuseoberteil (10) und Gehäuseunterteil (20) ist die Steckdose mit Kindersicherung fertig.
Figure 00000001
Figure 00000002
EP00128029A 2000-01-27 2000-12-21 Steckdose mit Kindersicherung Withdrawn EP1120862A3 (de)
