EP1239236A3 - Heizeinrichtung zur kombinierten Heiz- und Brauchwassererwärmung - Google Patents

Heizeinrichtung zur kombinierten Heiz- und Brauchwassererwärmung Download PDF

Info

Publication number
EP1239236A3
EP1239236A3 EP01130360A EP01130360A EP1239236A3 EP 1239236 A3 EP1239236 A3 EP 1239236A3 EP 01130360 A EP01130360 A EP 01130360A EP 01130360 A EP01130360 A EP 01130360A EP 1239236 A3 EP1239236 A3 EP 1239236A3
Authority
EP
European Patent Office
Prior art keywords
warm
water
heat exchanger
heat
heating installation
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP01130360A
Other languages
English (en)
French (fr)
Other versions
EP1239236B1 (de
EP1239236A2 (de
EP1239236B8 (de
Inventor
Franz Grammling
Gerhard Rambacher
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Rotex Heating Systems GmbH
Original Assignee
Rotex GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Rotex GmbH filed Critical Rotex GmbH
Publication of EP1239236A2 publication Critical patent/EP1239236A2/de
Publication of EP1239236A3 publication Critical patent/EP1239236A3/de
Publication of EP1239236B1 publication Critical patent/EP1239236B1/de
Application granted granted Critical
Publication of EP1239236B8 publication Critical patent/EP1239236B8/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F24—HEATING; RANGES; VENTILATING
    • F24H—FLUID HEATERS, e.g. WATER OR AIR HEATERS, HAVING HEAT-GENERATING MEANS, e.g. HEAT PUMPS, IN GENERAL
    • F24H1/00—Water heaters, e.g. boilers, continuous-flow heaters or water-storage heaters
    • F24H1/48—Water heaters for central heating incorporating heaters for domestic water
    • F24H1/52—Water heaters for central heating incorporating heaters for domestic water incorporating heat exchangers for domestic water
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F24—HEATING; RANGES; VENTILATING
    • F24H—FLUID HEATERS, e.g. WATER OR AIR HEATERS, HAVING HEAT-GENERATING MEANS, e.g. HEAT PUMPS, IN GENERAL
    • F24H7/00—Storage heaters, i.e. heaters in which the energy is stored as heat in masses for subsequent release
    • F24H7/02—Storage heaters, i.e. heaters in which the energy is stored as heat in masses for subsequent release the released heat being conveyed to a transfer fluid
    • F24H7/04—Storage heaters, i.e. heaters in which the energy is stored as heat in masses for subsequent release the released heat being conveyed to a transfer fluid with forced circulation of the transfer fluid
    • F24H7/045—Storage heaters, i.e. heaters in which the energy is stored as heat in masses for subsequent release the released heat being conveyed to a transfer fluid with forced circulation of the transfer fluid using fluid fuel
    • F24H7/0466—Storage heaters, i.e. heaters in which the energy is stored as heat in masses for subsequent release the released heat being conveyed to a transfer fluid with forced circulation of the transfer fluid using fluid fuel the transfer fluid being water

Landscapes

  • Engineering & Computer Science (AREA)
  • Physics & Mathematics (AREA)
  • Thermal Sciences (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Heat-Pump Type And Storage Water Heaters (AREA)
  • Steam Or Hot-Water Central Heating Systems (AREA)
  • Resistance Heating (AREA)
  • Fluidized-Bed Combustion And Resonant Combustion (AREA)

Abstract

Die Erfindung betrifft Heizeinrichtung zur kombinierten Heiz- und Brauchwassererwärmung mit folgenden Merkmalen:
  • a) einem mit Wärmespeicherflüssigkeit (14) befüllbaren Speicherbehälter (12),
  • b) einem in den Speicherbehälter (12) eintauchenden Tauchkessel (16), welcher einen Brenner (18) zur Erzeugung von Verbrennungsgasen und einen Primärwärmetauscher (20) zur Erwärmung von Heizwasser durch die Verbrennungsgase aufweist,
  • c) einem in dem Speicherbehälter (12) angeordneten, mit Heizwasser aus dem Primärwärmetauscher (20) beaufschlagbaren Ladewärmetauscher (22) zur Erwärmung der Wärmespeicherflüssigkeit (14),
  • d) einem in dem Speicherbehälter (12) angeordneten Brauchwasserwärmetauscher (24) zur Erwärmung von durchlaufendem Brauchwasser unter Wärmeentnahme aus der Wärmespeicherflüssigkeit (14).

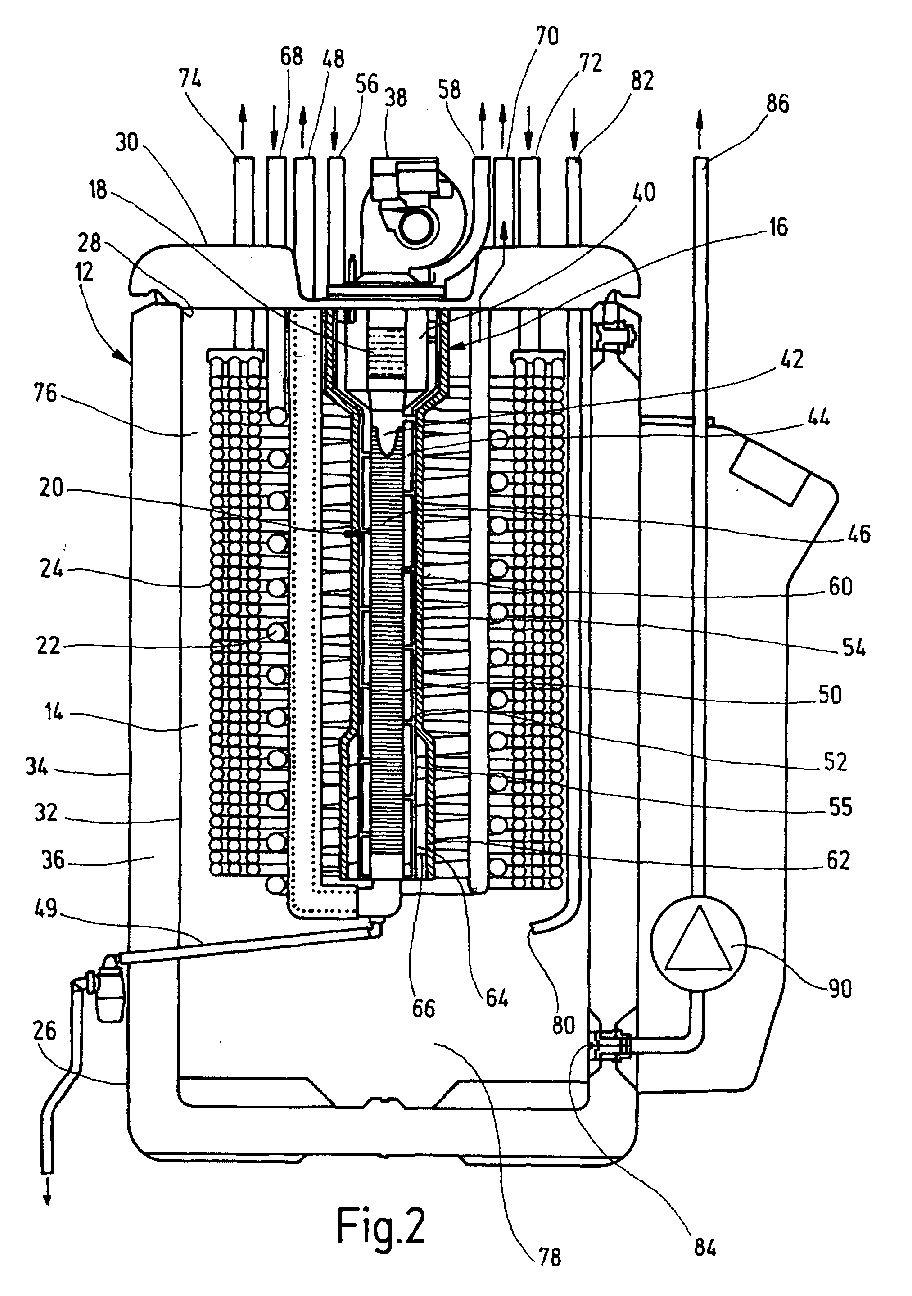

    • Figure 00000001
    EP01130360A 2001-03-05 2001-12-20 Heizeinrichtung zur kombinierten Heiz- und Brauchwassererwärmung Expired - Lifetime EP1239236B8 (de)
