EP1353074A3 - Centrifugal pump with integrated magnetic filter - Google Patents

Centrifugal pump with integrated magnetic filter Download PDF

Info

Publication number
EP1353074A3
EP1353074A3 EP03005993A EP03005993A EP1353074A3 EP 1353074 A3 EP1353074 A3 EP 1353074A3 EP 03005993 A EP03005993 A EP 03005993A EP 03005993 A EP03005993 A EP 03005993A EP 1353074 A3 EP1353074 A3 EP 1353074A3
Authority
EP
European Patent Office
Prior art keywords
pump
impeller
centrifugal pump
magnetic filter
chamber
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP03005993A
Other languages
German (de)
French (fr)
Other versions
EP1353074A2 (en
Inventor
Bernd-Thorsten Stock
Thomas Heese
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Wilo SE
Original Assignee
Wilo AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Wilo AG filed Critical Wilo AG
Publication of EP1353074A2 publication Critical patent/EP1353074A2/en
Publication of EP1353074A3 publication Critical patent/EP1353074A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F04—POSITIVE - DISPLACEMENT MACHINES FOR LIQUIDS; PUMPS FOR LIQUIDS OR ELASTIC FLUIDS
    • F04D—NON-POSITIVE-DISPLACEMENT PUMPS
    • F04D29/00—Details, component parts, or accessories
    • F04D29/70—Suction grids; Strainers; Dust separation; Cleaning
    • F04D29/708—Suction grids; Strainers; Dust separation; Cleaning specially for liquid pumps

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Structures Of Non-Positive Displacement Pumps (AREA)

Abstract

Die Erfindung betrifft eine Kreiselpumpe (1) mit einem Pumpengehäuse (9), in dem ein Pumpenlaufrad (13) in einem Laufradraum (12) umläuft, welcher von einem Spiralraum (15) umgeben ist, wobei in das Pumpengehäuse (9) mindestens ein Magnet (19) integriert ist, der in einem Bereich (20) angeordnet ist, der unmittelbar oder mittelbar an den Laufradraum (12) und/oder an den Spiralraum (15) und/oder an einen zwischen dem Spiralraum (15) und dem Laufradraum (12) befindlichen Ringraum (16) angrenzt. Die Pumpe ist vorzugsweise eine Spaltrohrpumpe (1) und der Magnet (19) kann vorteilhafterweise zugleich Bestandteil einer magnetischen Lagerung (19, 22) des Rotors (3) sein.

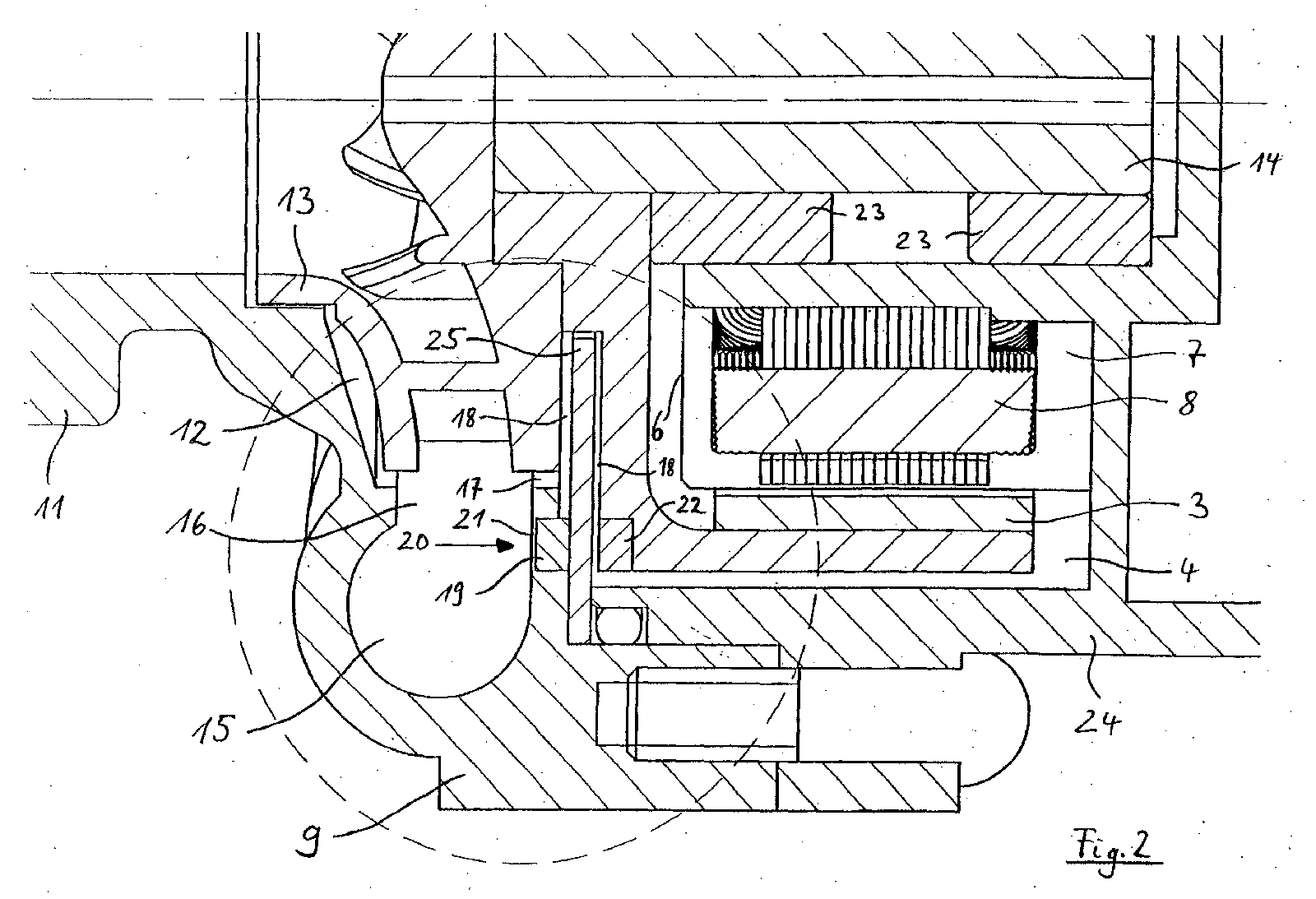

Figure 00000001
The invention relates to a centrifugal pump (1) with a pump housing (9), in which a pump impeller (13) rotates in an impeller space (12) which is surrounded by a spiral space (15), with at least one magnet in the pump housing (9) (19) is integrated, which is arranged in a region (20) which is directly or indirectly connected to the impeller chamber (12) and / or to the spiral chamber (15) and / or to one between the spiral chamber (15) and the impeller chamber ( 12) located annular space (16) adjoins. The pump is preferably a canned pump (1) and the magnet (19) can advantageously also be part of a magnetic bearing (19, 22) of the rotor (3).
Figure 00000001
EP03005993A 2002-04-12 2003-03-18 Centrifugal pump with integrated magnetic filter Withdrawn EP1353074A3 (en)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
DE2002116402 DE10216402A1 (en) 2002-04-12 2002-04-12 Centrifugal pump with integrated magnetic filter
DE10216402 2002-04-12

Publications (2)

Publication Number Publication Date
EP1353074A2 EP1353074A2 (en) 2003-10-15
EP1353074A3 true EP1353074A3 (en) 2004-11-03

Family

ID=28051301

Family Applications (1)

Application Number Title Priority Date Filing Date
EP03005993A Withdrawn EP1353074A3 (en) 2002-04-12 2003-03-18 Centrifugal pump with integrated magnetic filter

Country Status (2)

Country Link
EP (1) EP1353074A3 (en)
DE (1) DE10216402A1 (en)
