Abstract

Ein zu kühlendes Gut, insbesondere ein Lebensmittel, wird in einer Kühlbox (1) aufbewahrt. Die Kühlbox (1) weist einen Innenraum (5), der über ein Verschlussmittel, insbesondere eine Tür (11) verschließbar ist. Eine Sorptionskühleinrichtung umfasst einen Verdampfer (4) und einen ein Sorptionsmittel aufnehmenden Behälter (7). Der Verdampfer (4) ragt in den Innenraum (5) hinein. Der Verdampfer (4) und der Behälter (7) sind über ein Ventil (6) miteinander verbindbar. Das Ventil (6) wird bei Betätigung des Verschlussmittels betätigt.

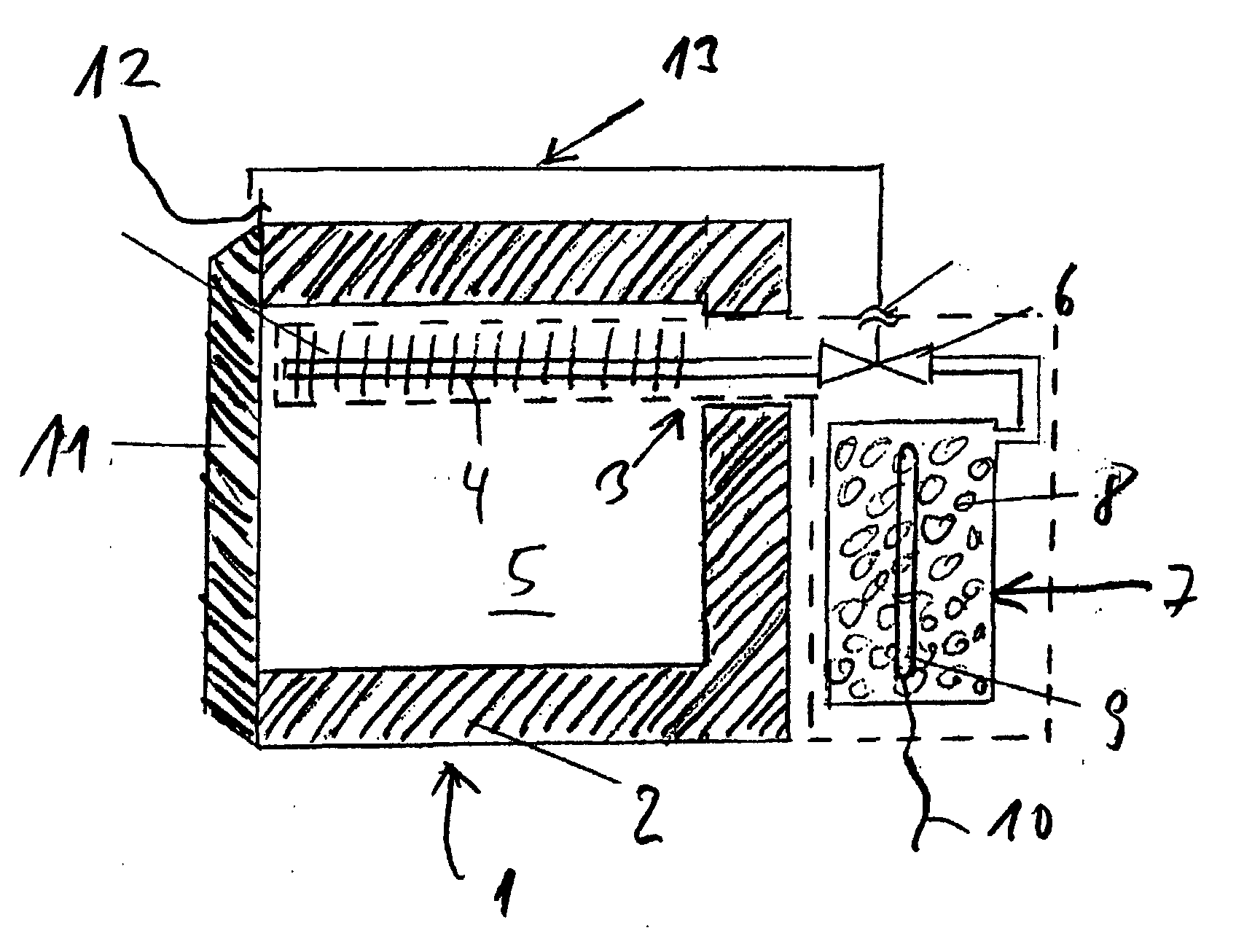

Figure 00000001
A good to be cooled, in particular a foodstuff, is stored in a cool box (1). The cool box (1) has an interior (5) which can be closed by a locking means, in particular a door (11). A sorption cooling device comprises an evaporator (4) and a container (7) holding a sorbent. The evaporator (4) protrudes into the interior (5). The evaporator (4) and the container (7) can be connected to one another via a valve (6). The valve (6) is actuated when the closure means is actuated.
Figure 00000001
EP03010323A 2002-05-07 2003-05-07 Cool box Withdrawn EP1361402A3 (en)
