EP1431236A3 - Verfahren zur Steuerung einer Seilwinde eines Pistenpflegefahrzeugs und Pistenpflegefahrzeug - Google Patents

Verfahren zur Steuerung einer Seilwinde eines Pistenpflegefahrzeugs und Pistenpflegefahrzeug Download PDF

Info

Publication number
EP1431236A3
EP1431236A3 EP03023400A EP03023400A EP1431236A3 EP 1431236 A3 EP1431236 A3 EP 1431236A3 EP 03023400 A EP03023400 A EP 03023400A EP 03023400 A EP03023400 A EP 03023400A EP 1431236 A3 EP1431236 A3 EP 1431236A3
Authority
EP
European Patent Office
Prior art keywords
vehicle
speed
controlling
winch
proportional
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP03023400A
Other languages
English (en)
French (fr)
Other versions
EP1431236A2 (de
EP1431236B1 (de
Inventor
Helmut Kanzler
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Kassbohrer Gelandefahrzeug AG
Kaessbohrer Gelaendefahrzeug AG
Original Assignee
Kassbohrer Gelandefahrzeug AG
Kaessbohrer Gelaendefahrzeug AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Kassbohrer Gelandefahrzeug AG, Kaessbohrer Gelaendefahrzeug AG filed Critical Kassbohrer Gelandefahrzeug AG
Publication of EP1431236A2 publication Critical patent/EP1431236A2/de
Publication of EP1431236A3 publication Critical patent/EP1431236A3/de
Application granted granted Critical
Publication of EP1431236B1 publication Critical patent/EP1431236B1/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B66—HOISTING; LIFTING; HAULING
    • B66D—CAPSTANS; WINCHES; TACKLES, e.g. PULLEY BLOCKS; HOISTS
    • B66D1/00—Rope, cable, or chain winding mechanisms; Capstans
    • B66D1/28—Other constructional details
    • B66D1/40—Control devices
    • B66D1/48—Control devices automatic
    • B66D1/50—Control devices automatic for maintaining predetermined rope, cable, or chain tension, e.g. in ropes or cables for towing craft, in chains for anchors; Warping or mooring winch-cable tension control
    • B66D1/505—Control devices automatic for maintaining predetermined rope, cable, or chain tension, e.g. in ropes or cables for towing craft, in chains for anchors; Warping or mooring winch-cable tension control electrical
    • E—FIXED CONSTRUCTIONS
    • E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
    • E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
    • E01H4/00—Working on surfaces of snow or ice in order to make them suitable for traffic or sporting purposes, e.g. by compacting snow
    • E01H4/02—Working on surfaces of snow or ice in order to make them suitable for traffic or sporting purposes, e.g. by compacting snow for sporting purposes, e.g. preparation of ski trails; Construction of artificial surfacings for snow or ice sports ; Trails specially adapted for on-the-snow vehicles, e.g. devices adapted for ski-trails

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Mechanical Engineering (AREA)
  • Control And Safety Of Cranes (AREA)
  • Road Paving Machines (AREA)
  • Loading Or Unloading Of Vehicles (AREA)
  • Earth Drilling (AREA)
  • Maintenance And Inspection Apparatuses For Elevators (AREA)
  • Jib Cranes (AREA)
  • Suspension Of Electric Lines Or Cables (AREA)

Abstract

Die Erfindung betrifft ein Verfahren zur Seilwindenregelung eines Pistenpflegefahrzeugs. Erfindungsgemäß sind folgende Schritte vorgesehen:
  • Erfassen einer Kettengeschwindigkeit oder einer der Antriebskettengeschwindigkeit proportionalen Größe,
  • Erfassen einer Seilgeschwindigkeit oder einer der Seilgeschwindigkeit proportionalen Größe,
  • Vergleichen der erfassten Kettengeschwindigkeit und erfassten Seilgeschwindigkeit oder der hierzu proportionalen Größen und
  • Bestimmen eines Sollwerts für die Seilgeschwindigkeit oder die hierzu proportionale Größe unter Berücksichtigung des Vergleichsergebnisses für die Seilwindenregelung.

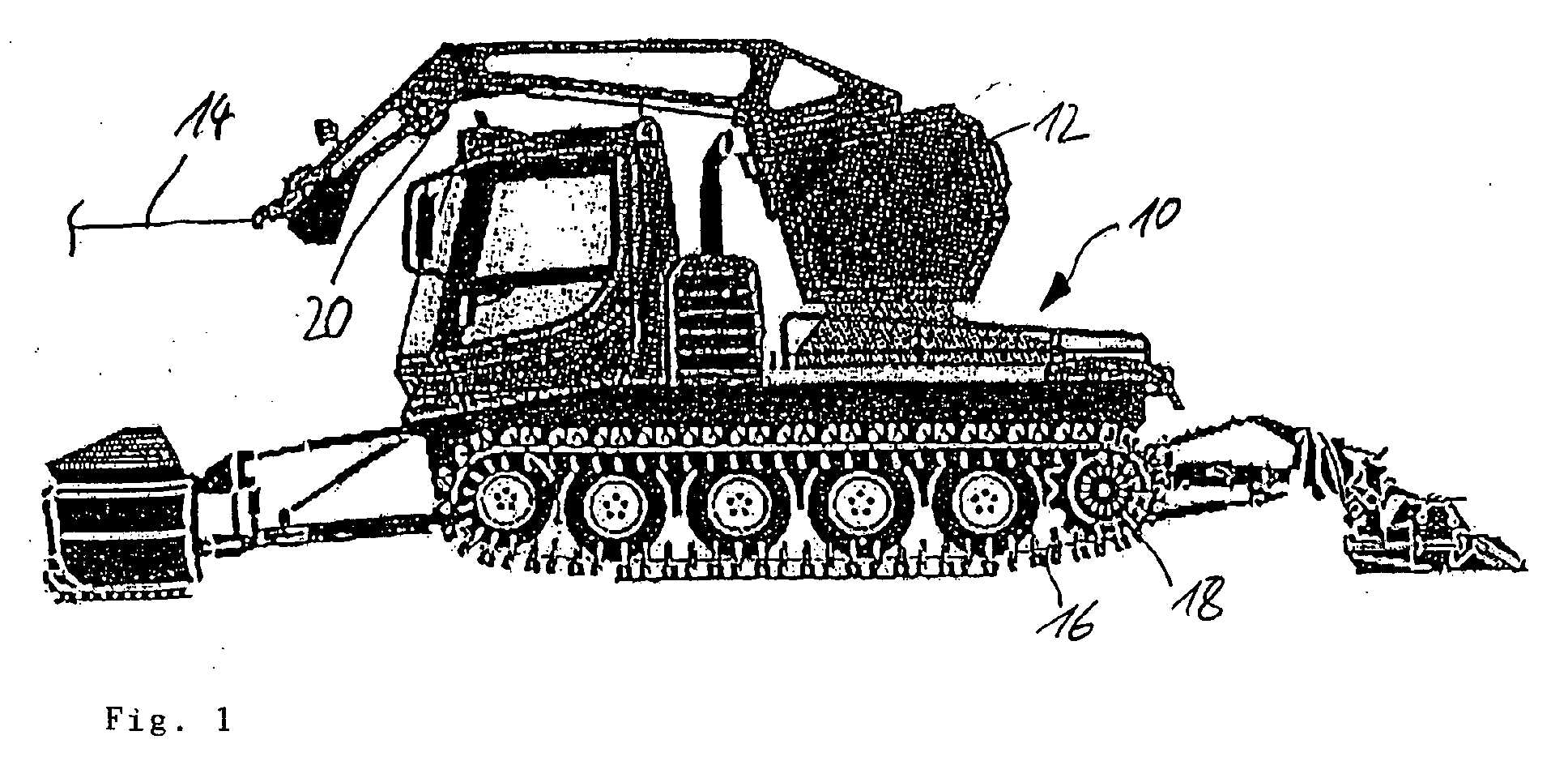

    • Figure 00000001
