EP2180102A3 - Flow regulator - Google Patents

Flow regulator Download PDF

Info

Publication number
EP2180102A3
EP2180102A3 EP09013078A EP09013078A EP2180102A3 EP 2180102 A3 EP2180102 A3 EP 2180102A3 EP 09013078 A EP09013078 A EP 09013078A EP 09013078 A EP09013078 A EP 09013078A EP 2180102 A3 EP2180102 A3 EP 2180102A3
Authority
EP
European Patent Office
Prior art keywords
jet
jet regulator
flow
housing
water
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP09013078A
Other languages
German (de)
French (fr)
Other versions
EP2180102B1 (en
EP2180102A2 (en
Inventor
Georg STÄDTLER
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Neoperl GmbH
Original Assignee
Neoperl GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Neoperl GmbH filed Critical Neoperl GmbH
Publication of EP2180102A2 publication Critical patent/EP2180102A2/en
Publication of EP2180102A3 publication Critical patent/EP2180102A3/en
Application granted granted Critical
Publication of EP2180102B1 publication Critical patent/EP2180102B1/en
Not-in-force legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E03—WATER SUPPLY; SEWERAGE
    • E03C—DOMESTIC PLUMBING INSTALLATIONS FOR FRESH WATER OR WASTE WATER; SINKS
    • E03C1/00—Domestic plumbing installations for fresh water or waste water; Sinks
    • E03C1/02—Plumbing installations for fresh water
    • E03C1/08—Jet regulators or jet guides, e.g. anti-splash devices

Landscapes

  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Hydrology & Water Resources (AREA)
  • Public Health (AREA)
  • Water Supply & Treatment (AREA)
  • Nozzles (AREA)
  • Domestic Plumbing Installations (AREA)
  • Air-Flow Control Members (AREA)
  • Valve Housings (AREA)

Abstract

Die Erfindung betrifft einen Strahlregler (1) mit einem Strahlreglergehäuse (2), das in seinem Gehäuseinneren eine Strahlzerlegeeinrichtung (3) mit einer Mehrzahl von Durchflusslöchern zum Zerlegen des zuströmenden Wasserstromes in eine entsprechende Anzahl von Einzelstrahlen sowie zumindest eine, in Strömungsrichtung davon beabstandete Gitter- und/oder Netzstruktur (6,7,15) aufweist, wobei in dem zwischen der Strahlzerlegeeinrichtung (3) und der benachbarten Gitter- und/oder Netzstruktur (6) angeordneten Gehäuseteilbereich eine Mehrzahl von in Strömungsrichtung orientierter, voneinander beabstandeter und sich im Wesentlichen über den Abstand zwischen der Strahlzerlegeeinrichtung (3) und der benachbarten Gitter- und/oder Netzstruktur (6) erstreckender Stift (13,14) vorgesehen sind. Für den erfindungsgemäßen Strahlregler (1) ist kennzeichnend, dass die Stifte (13,14) jeweils eine außerhalb des von den Einzelstrahlen unmittelbar angestrahlten Bereichs angeordnete, von dem durch das Strahlreglergehäuse durchströmenden Wasser aber benetzbare Verdunstungsoberfläche bilden und dass die Stifte (13,14) dazu seitlich außerhalb der in Durchströmrichtung orientierten Projektion der Durchflusslöcher (13,14) angeordnet sind. Diese vergleichsweise langen und vom durchfließenden Wasser umströmten Stifte (13,14) werden auch nach dem Schließen des Wasserventiles mit einem umhüllenden wasserfilm belegt, der zu einer erhöhten Luftfeuchtigkeit und somit zu einer geringeren Verdunstung im Gehäuseinneren des Strahlreglergehäuses (2) führt. Da somit ein völliges Austrocknen im Inneren des Strahlreglergehäuses (2) vermieden wird, zeichnet sich der erfindungsgemäße Strahlregler (1) durch eine hohe Funktionssicherheit auch über einen längeren Zeitraum aus (vgl. Fig. 17).

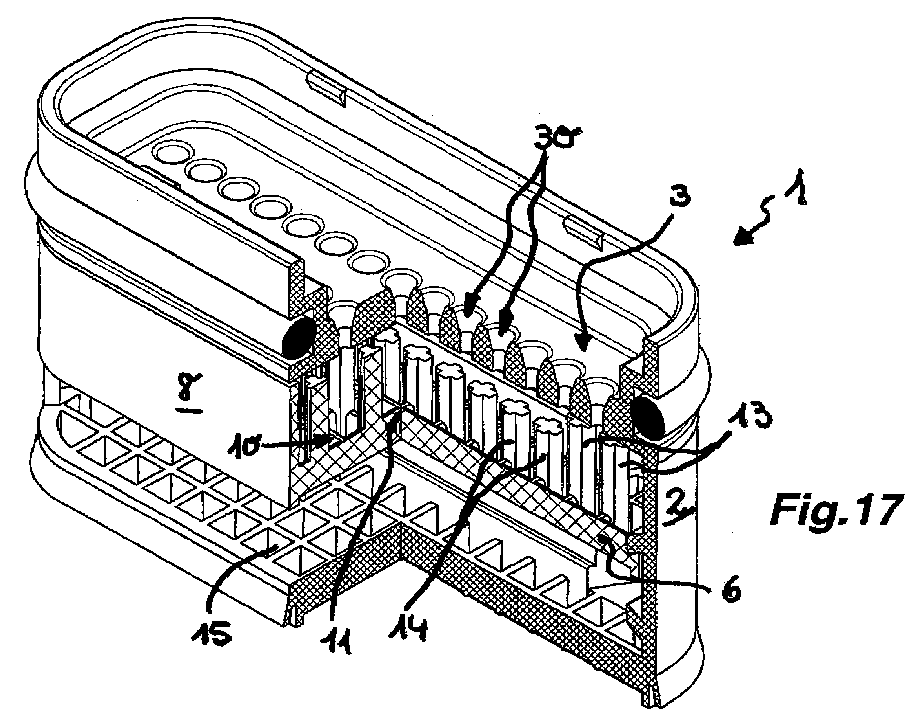

Figure imgaf001
The invention relates to a jet regulator (1) having a jet regulator housing (2) which has a jet decomposing device (3) with a plurality of flow holes for dividing the inflowing water flow into a corresponding number of individual streams and at least one grid spaced away in the flow direction. and / or network structure (6,7,15), wherein in the arranged between the jet disintegrating device (3) and the adjacent grid and / or network structure (6) housing part region a plurality of oriented in the flow direction, spaced from each other and substantially over the distance between the jet disintegrating device (3) and the adjacent grid and / or network structure (6) extending pin (13,14) are provided. For the jet regulator (1) according to the invention, it is characteristic that the pins (13, 14) each form an evaporation surface which is arranged outside the region directly illuminated by the individual beams and wettable by the water flowing through the jet regulator housing, and in that the pins (13, 14) are arranged laterally outside of the flow-oriented projection of the flow holes (13,14). These relatively long and flowed around by the flowing water pins (13,14) are occupied even after closing the water valve with a enveloping water film, which leads to increased humidity and thus lower evaporation inside the radiator housing (2). Since a complete drying out in the interior of the jet regulator housing (2) is thus avoided, the jet regulator (1) according to the invention is distinguished by a high degree of functional reliability even over a relatively long period of time (cf., FIG. 17).
Figure imgaf001
