Abstract

Die Erfindung bezieht sich auf einen Kühlschrank (10) mit einem von einem Schrankkörper (12) umgebenen Kühlraum (14), dessen vertikale Zugriffsöffnung (16) durch mindestens zwei jeweils in einer Vertikalebene versetzt zueinander stehende, transparente Türelemente (201,202) verschlossen ist. Jedes Türelement (201,202) ist jeweils an einem Schieberahmen (241,242) um eine Vertikalachse schwenkbar gelagert, wobei der Schieberahmen (241,242) in Querrichtung verschiebbar an einer Laufschiene (22) des Schrankkörpers (12) gelagert ist. Es ist eine Sperranordnung vorgesehen, die das Türelement (201,202) wahlweise unschwenkbar an dem Schieberahmen (241,242) fixiert oder den Schieberahmen (241,242) unverschiebbar an der Laufschiene (22) fixiert. Hierdurch wird ein gewerblicher Kühlschrank für beengte Platzverhältnisse geschaffen, der einfach und effektiv befüllt werden kann.

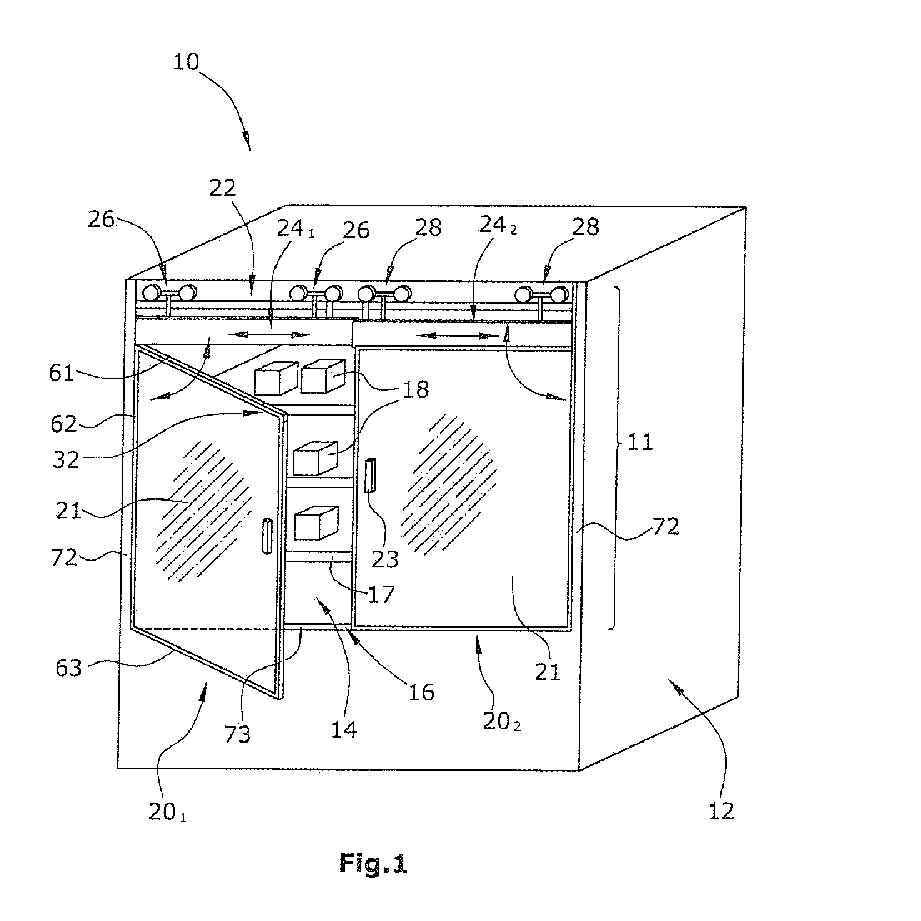

Figure imgaf001
The invention relates to a refrigerator (10) with a cooling space (14) surrounded by a cabinet body (12), the vertical access opening (16) of which is offset by at least two transparent door elements (20 1 , 20 2 ) offset from each other in a vertical plane. is closed. Each door element (20 1 , 20 2 ) is pivotally mounted on a sliding frame (24 1 , 24 2 ) about a vertical axis, wherein the sliding frame (24 1 , 24 2 ) in the transverse direction slidably on a running rail (22) of the cabinet body (12 ) is stored. It is a locking arrangement provided which the door member (20 1 , 20 2 ) either non-pivotally fixed to the sliding frame (24 1 , 24 2 ) or fixed the sliding frame (24 1 , 24 2 ) immovably on the running rail (22). This creates a commercial refrigerator for confined spaces, which can be easily and effectively filled.
Figure imgaf001
