EP3208088A2 - Hot foil stamping device - Google Patents

Hot foil stamping device Download PDF

Info

Publication number
EP3208088A2
EP3208088A2 EP17152360.8A EP17152360A EP3208088A2 EP 3208088 A2 EP3208088 A2 EP 3208088A2 EP 17152360 A EP17152360 A EP 17152360A EP 3208088 A2 EP3208088 A2 EP 3208088A2
Authority
EP
European Patent Office
Prior art keywords
embossing
foil stamping
hot foil
embossing element
counter
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP17152360.8A
Other languages
German (de)
French (fr)
Other versions
EP3208088B1 (en
EP3208088A3 (en
Inventor
Hans Schadl
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Heidelberger Druckmaschinen AG
Original Assignee
Heidelberger Druckmaschinen AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Heidelberger Druckmaschinen AG filed Critical Heidelberger Druckmaschinen AG
Publication of EP3208088A2 publication Critical patent/EP3208088A2/en
Publication of EP3208088A3 publication Critical patent/EP3208088A3/en
Application granted granted Critical
Publication of EP3208088B1 publication Critical patent/EP3208088B1/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Classifications

    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
    • B41F—PRINTING MACHINES OR PRESSES
    • B41F16/00—Transfer printing apparatus
    • B41F16/0006—Transfer printing apparatus for printing from an inked or preprinted foil or band
    • B41F16/002—Presses of the rotary type
    • B41F16/0026—Presses of the rotary type with means for applying print under heat and pressure, e.g. using heat activable adhesive
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
    • B41F—PRINTING MACHINES OR PRESSES
    • B41F16/00—Transfer printing apparatus
    • B41F16/0006—Transfer printing apparatus for printing from an inked or preprinted foil or band
    • B41F16/004—Presses of the reciprocating type
    • B41F16/0053—Presses of the reciprocating type with means for applying print under pressure only, e.g. using pressure sensitive adhesive
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
    • B41F—PRINTING MACHINES OR PRESSES
    • B41F19/00—Apparatus or machines for carrying out printing operations combined with other operations
    • B41F19/02—Apparatus or machines for carrying out printing operations combined with other operations with embossing
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
    • B41P—INDEXING SCHEME RELATING TO PRINTING, LINING MACHINES, TYPEWRITERS, AND TO STAMPS
    • B41P2219/00—Printing presses using a heated printing foil

Definitions

  • the invention relates to a device for hot foil stamping according to the preamble of claim 1.
  • Mirror-smooth surface elements in gold, silver, copper, aluminum and other metallic colors can be transferred to the substrate in hot foil stamping.
  • a carrier film is coated with the coloring layer and a hot-melt adhesive (adhesive layer). Under pressure and heat, the image can be transferred with a heated cliché (high-pressure mold).
  • Suitable machines are either rotary processing stations in printing machines or flat bed punching and / or embossing machines.
  • Hot foil stamping is primarily used in a wide range of sheetfed and roll products, such as packaging for cosmetics, confectionery and beverages, as well as for high-quality brochures.
  • a disadvantage of such devices for hot foil stamping is the high cost and time required for the production of tools, that is the embossing dies for a particular order.
  • the object of the present invention is therefore to provide a device for hot foil stamping which does not have the disadvantages of the prior art and enables hot foil stamping in only one processing station without expensive, job-specific stamping tools.
  • the inventive device for hot foil stamping on substrates such as sheets or sheets, in particular of paper, cardboard or plastic, has an embossing element, this embossing element associated counter-embossing element and means for Provision of stamping foil.
  • the device has a laser unit for partially heating embossing foil in the region of the embossing element, wherein the embossing element is transparent, such that the laser beams of the laser unit penetrate the embossing element and the embossing foil is partially heated at the desired locations.
  • An advantage of this device is that no tools must be created job specific. This makes it possible to change the motif of the hot foil stamping within a very short time. This means that a motif can also be changed during production.
  • the direct heating of the embossing foil ensures that the hot foil embossed motif has a high edge definition.
  • the device according to the invention has a control unit at least for controlling the laser unit.
  • a data transmission technology-related sensor for monitoring the printing material is provided with the control unit, so that accurate register control of the laser unit can be achieved.
  • the hot foil stamping can be applied to the substrate in register with an already pre-printed print image.
  • the embossing element is made of glass.
  • the counter-embossing element may have a rubberized surface.
  • embossing element and counter-embossing element are each designed as a cylinder
  • embossing element and counter-embossing element are each designed as a plate.
  • a cooling device may be provided adjacent to the embossing cylinder.
  • FIG. 3 shows as an example of a processing machine 100, a rotary printing press for printing a substrate web 1.
  • the substrate web 1 is thereby in the transport direction T transported through a plurality of processing plants and edited it.
  • the processing units are conventional printing units 11, a digital printing unit 14, an embossing unit 12 and a stamping and creasing unit 13.

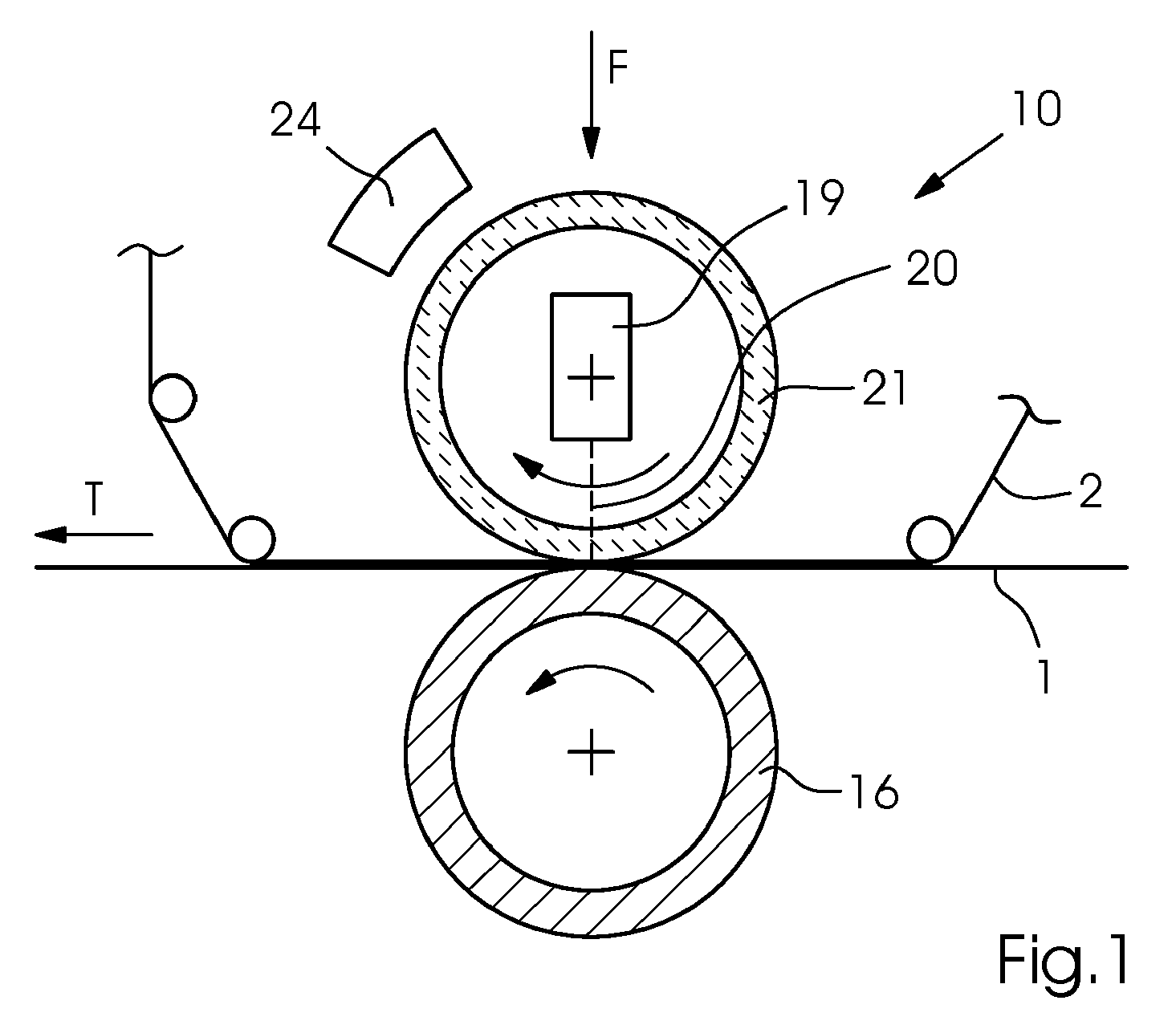

  • FIG. 1 shows a first embodiment of the apparatus for hot foil stamping 10, which provides cylinders as processing tools:
  • the apparatus 10 has a transparent cylinder 21 and a counter-pressure cylinder 16.
  • the impression cylinder 16 may be performed gummed.
  • a transparent cylinder 21 for example, designed as a glass cylinder, and the impression cylinder 16
  • both a substrate web 1 and a film 2 is guided through.
  • Provision and guidance of the film web 2 is effected by a device, not shown, having transport rollers for providing embossing film.
  • a laser unit 19 is arranged, which is controlled by a control unit 3 (not shown here).
  • the laser beams 20 emitted by the laser unit 19 penetrate the transparent cylinder 21 and heat the film 2 selectively and locally. Metal particles can then be transferred from the carrier film 2 to the substrate web 1 at this locally heated point and become transparent between the transparent cylinder 21 due to the contact force F and impression cylinder 16 "ironed" on the substrate web 1, whereby the hot foil stamping is produced.
  • FIG. 2 an alternative embodiment of the hot foil stamping apparatus 10 is shown.
  • the cylinder plates are used here, namely a transparent plate 22 as an embossing element, which may be designed as a glass plate, and a counter-pressure plate 23 as a counter-embossing element.
  • the platen 23 may have a rubberized surface.

Landscapes

  • Engineering & Computer Science (AREA)
  • Mechanical Engineering (AREA)
  • Shaping Of Tube Ends By Bending Or Straightening (AREA)
  • Printing Methods (AREA)
  • Decoration By Transfer Pictures (AREA)

Abstract

Die Erfindung betrifft eine Vorrichtung (10) zum Heißfolienprägen auf Bedruckstoffe (1) mit einem Prägeelement (21, 22), einem Gegenprägeelement (16, 23) und einer Einrichtung zur Bereitstellung von Prägefolie (2). Erfindungsgemäß besitzt die Vorrichtung eine Lasereinheit (19) zum partiellen Erhitzen von Prägefolie (2) im Bereich des Prägeelements (21, 22) und, das Prägeelement (21, 22) ist transparent ausgeführt, derart, dass die Laserstrahlen der Lasereinheit das Prägeelement durchdringen und die Prägefolie an den gewünschten Stellen partiell erhitzt wird.The invention relates to a device (10) for hot foil stamping on substrates (1) with an embossing element (21, 22), a counter embossing element (16, 23) and a device for providing embossing film (2). According to the invention, the device has a laser unit (19) for partial heating of embossing foil (2) in the region of the embossing element (21, 22) and, the embossing element (21, 22) is transparent, such that the laser beams of the laser unit penetrate the embossing element and the embossing film is partially heated at the desired locations.

Vorteilhaft an dieser Vorrichtung ist, dass keine Werkzeuge auftragsspezifisch erstellt werden müssen.

Figure imgaf001
An advantage of this device is that no tools must be created job specific.
Figure imgaf001

Description

Die Erfindung betrifft eine Vorrichtung zum Heißfolienprägen gemäß dem Oberbegriff von Anspruch 1.The invention relates to a device for hot foil stamping according to the preamble of claim 1.

Stand der TechnikState of the art

Zu den bekannten Veredelungsarten in der Druckindustrie gehört unter anderem das sogenannte Heißfolienprägen.One of the known types of finishing in the printing industry is the so-called hot foil stamping.

Spiegelglatte Flächenelemente in Gold, Silber, Kupfer, Aluminium und anderen Metallic-Farben lassen sich im Heißfolienprägedruck auf den Bedruckstoff übertragen. Eine Trägerfolie wird mit der farbgebenden Schicht und einem heißschmelzendem Kleber (Haftschicht) beschichtet. Unter Druck und Wärme kann mit einem beheizten Klischee (Hochdruckform) das Bild übertragen werden. Geeignete Maschinen sind entweder rotative Bearbeitungsstationen in Druckmaschinen oder Flachbettstanz- und/oder -Prägemaschinen. Die Heißfolienprägung wird vorrangig in vielfältigen Bogen- und Rollenprodukten, wie Verpackungen für Kosmetika, Süßwaren und Getränke sowie für hochwertige Broschüren eingesetzt.Mirror-smooth surface elements in gold, silver, copper, aluminum and other metallic colors can be transferred to the substrate in hot foil stamping. A carrier film is coated with the coloring layer and a hot-melt adhesive (adhesive layer). Under pressure and heat, the image can be transferred with a heated cliché (high-pressure mold). Suitable machines are either rotary processing stations in printing machines or flat bed punching and / or embossing machines. Hot foil stamping is primarily used in a wide range of sheetfed and roll products, such as packaging for cosmetics, confectionery and beverages, as well as for high-quality brochures.

In der DE 10 2009 019 590 A1 wird eine rotative Heißfolienprägestation beschrieben und in ihrer Figur 8 dargestellt.In the DE 10 2009 019 590 A1 a rotary hot foil stamping station is described and shown in its FIG.

Nachteilig bei derartigen Vorrichtungen zum Heißfolienprägen ist der hohe Kosten- und Zeitaufwand für die Herstellung der Werkzeuge, das heißt der Prägeklischees für einen jeweiligen Auftrag.A disadvantage of such devices for hot foil stamping is the high cost and time required for the production of tools, that is the embossing dies for a particular order.

Aufgabenstellungtask

Aufgabe der vorliegenden Erfindung ist es daher, eine Vorrichtung zum Heißfolienprägen zu schaffen, welche die Nachteile des Standes der Technik nicht aufweist und ein Heißfolienprägen in nur einer Bearbeitungsstation ohne teure auftragsindividuelle Prägewerkzeuge ermöglicht.The object of the present invention is therefore to provide a device for hot foil stamping which does not have the disadvantages of the prior art and enables hot foil stamping in only one processing station without expensive, job-specific stamping tools.

Gelöst wird diese Aufgabe durch eine Vorrichtung zum Heißfolienprägen mit den Merkmalen von Anspruch 1. Die erfindungsgemäße Vorrichtung zum Heißfolienprägen auf Bedruckstoffe, wie Bogen oder Bahnen, insbesondere aus Papier, Karton oder Kunststoff, besitzt ein Prägeelement, ein diesem Prägeelement zugeordnetes Gegenprägeelement und eine Einrichtung zur Bereitstellung von Prägefolie. Erfindungsgemäß besitzt die Vorrichtung eine Lasereinheit zum partiellen Erhitzen von Prägefolie im Bereich des Prägeelements, wobei das Prägeelement transparent ausgeführt ist, derart, dass die Laserstrahlen der Lasereinheit das Prägeelement durchdringen und die Prägefolie an den gewünschten Stellen partiell erhitzt wird. Vorteilhaft an dieser Vorrichtung ist, dass keine Werkzeuge auftragsspezifisch erstellt werden müssen. Damit ist ein Motivwechsel der Heißfolienprägung innerhalb kürzester Zeit möglich. Das heißt, ein Motiv kann auch während der laufenden Produktion umgestellt werden. Durch das direkte Erhitzen der Prägefolie wird sichergestellt, dass das heißfoliengeprägte Motiv eine hohe Randschärfe aufweist.This object is achieved by a device for hot foil stamping with the features of claim 1. The inventive device for hot foil stamping on substrates, such as sheets or sheets, in particular of paper, cardboard or plastic, has an embossing element, this embossing element associated counter-embossing element and means for Provision of stamping foil. According to the invention, the device has a laser unit for partially heating embossing foil in the region of the embossing element, wherein the embossing element is transparent, such that the laser beams of the laser unit penetrate the embossing element and the embossing foil is partially heated at the desired locations. An advantage of this device is that no tools must be created job specific. This makes it possible to change the motif of the hot foil stamping within a very short time. This means that a motif can also be changed during production. The direct heating of the embossing foil ensures that the hot foil embossed motif has a high edge definition.

Die erfindungsgemäße Vorrichtung besitzt eine Steuereinheit zumindest zur Ansteuerung der Lasereinheit. Es ist zusätzlich ein mit der Steuereinheit datenübertragungstechnisch verbundener Sensor zur Überwachung des Bedruckstoffes vorgesehen, so dass eine passergenaue Ansteuerung der Lasereinheit erreicht werden kann. So kann die Heißfolienprägung passergenau zu einem bereits vorher gedruckten Druckbild auf den Bedruckstoff aufgebracht werden.The device according to the invention has a control unit at least for controlling the laser unit. In addition, a data transmission technology-related sensor for monitoring the printing material is provided with the control unit, so that accurate register control of the laser unit can be achieved. Thus, the hot foil stamping can be applied to the substrate in register with an already pre-printed print image.

In vorteilhafter Weiterbildung der erfindungsgemäßen Vorrichtung ist das Prägeelement aus Glas. Das Gegenprägeelement kann eine gummierte Oberfläche aufweisen.In an advantageous embodiment of the device according to the invention, the embossing element is made of glass. The counter-embossing element may have a rubberized surface.

In einer ersten Ausführungsvariante sind Prägeelement und Gegenprägeelement jeweils als Zylinder ausgeführt, in einer zweiten Ausführungsvariante sind Prägeelement und Gegenprägeelement jeweils als Platte ausgeführt.In a first embodiment, embossing element and counter-embossing element are each designed as a cylinder, in a second embodiment, embossing element and counter-embossing element are each designed as a plate.

Bei der ersten Ausführungsvariante kann angrenzend an den Prägezylinder eine Kühleinrichtung vorgesehen sein.In the first embodiment, a cooling device may be provided adjacent to the embossing cylinder.

Die beschriebene Erfindung und die beschriebenen vorteilhaften Weiterbildungen der Erfindung stellen auch in Kombination miteinander - soweit dies technisch sinnvoll ist - vorteilhafte Weiterbildungen der Erfindung dar.The invention described and the described advantageous developments of the invention are also in combination with each other - as far as is technically feasible - advantageous developments of the invention.

Hinsichtlich weiterer Vorteile und in konstruktiver und funktioneller Hinsicht vorteilhafter Ausgestaltungen der Erfindung wird auf die Unteransprüche sowie die Beschreibung von Ausführungsbeispielen unter Bezugnahme auf die beiliegenden Figuren verwiesen.With regard to further advantages and constructive and functional advantageous embodiments of the invention, reference is made to the dependent claims and the description of exemplary embodiments with reference to the accompanying figures.

Ausführungsbeispielembodiment

Die Erfindung soll anhand beigefügter Figuren noch näher erläutert werden. Einander entsprechende Elemente und Bauteile sind in den Figuren mit gleichen Bezugszeichen versehen. Zugunsten einer besseren Übersichtlichkeit der Figuren wurde auf eine maßstabsgetreue Darstellung verzichtet. Es zeigen in schematischer Darstellung:

Figur 1
eine erste Ausführungsvariante einer erfindungsgemäßen Vorrichtung zum Heißfolienprägen
Figur 2
eine zweite Ausführungsvariante einer erfindungsgemäßen Vorrichtung zum Heißfolienprägen
Figur 3
eine Druckmaschine in einer Übersichtsdarstellung.
The invention will be explained in more detail with reference to accompanying figures. Corresponding elements and components are provided in the figures with the same reference numerals. In favor of a better clarity of the figures was waived a true to scale representation. In a schematic representation:
FIG. 1
a first embodiment of a device according to the invention for hot foil stamping
FIG. 2
a second embodiment of a device according to the invention for hot foil stamping
FIG. 3
a printing press in an overview.

Figur 3 zeigt als Beispiel einer Verarbeitungsmaschine 100 eine Rotationsdruckmaschine zum Bedrucken einer Substratbahn 1. Die Substratbahn 1 wird dabei in Transportrichtung T durch eine Mehrzahl von Bearbeitungswerken hindurch transportiert und dabei bearbeitet. Bei den Bearbeitungswerken handelt es sich um konventionelle Druckwerke 11, ein Digitaldruckwerk 14, ein Prägewerk 12 und ein Stanz- und Rillwerk 13. Angrenzend an den Bahnlauf der Substratbahn 1 kann ein (oder auch mehrere) Inspektionssystem 4 vorgesehen sein, welches beispielsweise als Kamera ausgeführt ist, um kontinuierlich die Substratbahn 1 zu überwachen. FIG. 3 shows as an example of a processing machine 100, a rotary printing press for printing a substrate web 1. The substrate web 1 is thereby in the transport direction T transported through a plurality of processing plants and edited it. The processing units are conventional printing units 11, a digital printing unit 14, an embossing unit 12 and a stamping and creasing unit 13. Adjacent to the web run of the substrate web 1, one (or more) inspection system 4 can be provided, which is designed, for example, as a camera is to continuously monitor the substrate web 1.

Anstelle des konventionellen Prägewerks 12 kann eine Vorrichtung zum Heißfolienprägen 10, wie nachfolgend beschrieben, zum Einsatz gelangen.Instead of the conventional stamping mill 12, a device for hot foil stamping 10, as described below, can be used.

Besonders vorteilhaft ist der Einsatz einer solchen Vorrichtung zum Heißfolienprägen 10 in Bearbeitungsmaschinen 100, welche ausschließlich digitale Bearbeitungsstationen aufweisen.Particularly advantageous is the use of such a device for hot foil stamping 10 in processing machines 100, which have exclusively digital processing stations.

Figur 1 zeigt eine erste Ausführungsvariante der Vorrichtung zum Heißfolienprägen 10, welche als Bearbeitungswerkzeuge Zylinder vorsieht: Die Vorrichtung 10 besitzt einen transparenten Zylinder 21 und einen Gegendruckzylinder 16. Der Gegendruckzylinder 16 kann dabei gummiert ausgeführt sein. Im Druckspalt zwischen dem transparenten Zylinder 21, beispielsweise ausgeführt als Glaszylinder, und dem Gegendruckzylinder 16 wird sowohl eine Substratbahn 1 als auch eine Folie 2 hindurch geführt. Bereitstellung und Führung der Folienbahn 2 erfolgt durch eine nicht näher dargestellte, Transportrollen aufweisende Einrichtung zur Bereitstellung von Prägefolie. Innerhalb des transparenten Zylinders 21 ist eine Lasereinheit 19 angeordnet, welche von einer Steuereinheit 3 (hier nicht dargestellt) angesteuert wird. Die von der Lasereinheit 19 ausgesandten Laserstrahlen 20 durchdringen den transparenten Zylinder 21 und erhitzen gezielt und lokal die Folie 2. An dieser lokal erhitzten Stelle können sodann Metallpartikel von der Trägerfolie 2 auf die Substratbahn 1 übertragen werden und werden aufgrund der Anpresskraft F zwischen transparentem Zylinder 21 und Gegendruckzylinder 16 auf die Substratbahn 1 "aufgebügelt", wodurch die Heißfolienprägung erzeugt wird. FIG. 1 shows a first embodiment of the apparatus for hot foil stamping 10, which provides cylinders as processing tools: The apparatus 10 has a transparent cylinder 21 and a counter-pressure cylinder 16. The impression cylinder 16 may be performed gummed. In the nip between the transparent cylinder 21, for example, designed as a glass cylinder, and the impression cylinder 16, both a substrate web 1 and a film 2 is guided through. Provision and guidance of the film web 2 is effected by a device, not shown, having transport rollers for providing embossing film. Within the transparent cylinder 21, a laser unit 19 is arranged, which is controlled by a control unit 3 (not shown here). The laser beams 20 emitted by the laser unit 19 penetrate the transparent cylinder 21 and heat the film 2 selectively and locally. Metal particles can then be transferred from the carrier film 2 to the substrate web 1 at this locally heated point and become transparent between the transparent cylinder 21 due to the contact force F and impression cylinder 16 "ironed" on the substrate web 1, whereby the hot foil stamping is produced.

In Figur 2 ist eine alternative Ausführungsform der Vorrichtung zum Heißfolienprägen 10 dargestellt. Anstelle der Zylinder werden hierbei Platten verwendet, nämlich eine transparente Platte 22 als Prägeelement, welche ausgeführt sein kann als Glasplatte, und eine Gegendruckplatte 23 als Gegenprägeelement. Auch hier kann die Gegendruckplatte 23 eine gummierte Oberfläche aufweisen.In FIG. 2 an alternative embodiment of the hot foil stamping apparatus 10 is shown. Instead of the cylinder plates are used here, namely a transparent plate 22 as an embossing element, which may be designed as a glass plate, and a counter-pressure plate 23 as a counter-embossing element. Again, the platen 23 may have a rubberized surface.

Während die mit Zylindern 16, 19 versehene Variante gemäß Figur 1 eine kontinuierliche Bearbeitung eines Bedruckstoffs 1 ermöglicht, kann mit der Ausführungsvariante gemäße Figur 2 mit den Platten 22, 23 nur eine diskontinuierliche Bearbeitung des Bedruckstoffs 1 erreicht werden. Das heißt, für jeden Prägeprozess muss der Bedruckstoff 1 kurzzeitig angehalten werden.While provided with cylinders 16, 19 variant according to FIG. 1 enables continuous processing of a printing material 1, can with the embodiment according to FIG. 2 With the plates 22, 23 only a discontinuous processing of the printing material 1 can be achieved. This means that for each embossing process the substrate 1 has to be stopped for a short time.

BezugszeichenlisteLIST OF REFERENCE NUMBERS

11
Substratbahn (Bedruckstoff)Substrate web (substrate)
22
Foliefoil
33
Steuereinheit (Maschinensteuerung mit Interface)Control unit (machine control with interface)
44
Inspektionssysteminspection system
1010
Vorrichtung zum HeißfolienprägenApparatus for hot foil stamping
1111
Druckwerkprinting unit
1212
Prägewerkstamping
1313
Stanz- und RillwerkPunching and Rillwerk
1414
DigitaldruckwerkDigital printing
1515
Druckzylinderpressure cylinder
1616
GegendruckzylinderImpression cylinder
1717
Prägezylinderembossing cylinders
1818
Stanzzylinderpunching cylinder
1919
Lasereinheitlaser unit
2020
Laserstrahllaser beam
2121
Transparenter Zylinder (Glaszylinder)Transparent cylinder (glass cylinder)
2222
Transparente Platte (Glasplatte)Transparent plate (glass plate)
2323
GegendruckplattePlaten
2424
Kühleinrichtungcooling device
100100
Druckmaschinepress
TT
F Anpresskraft BahntransportrichtungF contact pressure rail transport direction

Claims (8)

Vorrichtung (10) zum Heißfolienprägen auf bereits bedruckte, flächige Bedruckstoffe (1) mit einem Prägeelement (21, 22), einem Gegenprägeelement (16, 23) und einer Einrichtung zur Bereitstellung von Prägefolie (2),
wobei die Vorrichtung eine Lasereinheit (19) besitzt zum partiellen Erhitzen von Prägefolie (2) im Bereich des Prägeelements (21, 22), und
wobei das Prägeelement (21, 22) transparent ausgeführt ist,
dadurch gekennzeichnet,
dass die Vorrichtung eine Steuereinheit (3) aufweist zumindest zur Ansteuerung der Lasereinheit (19), und
dass die Vorrichtung einen mit der Steuereinheit (3) datenübertragungstechnisch verbundenen Sensor (4) zur Überwachung des Bedruckstoffs (1) und zur passergenauen Ansteuerung der Lasereinheit (19) aufweist.Device (10) for hot foil stamping on already printed, sheet-like substrates (1) with an embossing element (21, 22), a counter embossing element (16, 23) and a device for providing embossing film (2),
wherein the device has a laser unit (19) for partially heating embossing foil (2) in the region of the embossing element (21, 22), and
wherein the embossing element (21, 22) is made transparent,
characterized,
that the device comprises a control unit (3) at least for controlling the laser unit (19), and
in that the device has a sensor (4) connected to the control unit (3) in terms of data transmission for monitoring the printing substrate (1) and for accurately controlling the laser unit (19). Vorrichtung zum Heißfolienprägen nach Anspruch 1,
dadurch gekennzeichnet,
dass das Prägeelement (21, 22) aus Glas ist.Hot foil stamping apparatus according to claim 1,
characterized,
that the embossing member (21, 22) is made of glass. Vorrichtung zum Heißfolienprägen nach einem der vorangehenden Ansprüche,
dadurch gekennzeichnet,
dass das Gegenprägeelement (16, 23) eine gummierte Oberfläche aufweist.Hot foil stamping device according to one of the preceding claims,
characterized,
that the counter-embossing element (16, 23) has a rubberized surface. Vorrichtung zum Heißfolienprägen nach einem der vorangehenden Ansprüche,
dadurch gekennzeichnet,
dass das Prägeelement (21) und das Gegenprägeelement (16) jeweils als Zylinder ausgeführt ist.Hot foil stamping device according to one of the preceding claims,
characterized,
that the embossing member (21) and the counter-embossing element (16) is in each case designed as cylinders. Vorrichtung zum Heißfolienprägen nach Anspruch 4,
dadurch gekennzeichnet,
dass angrenzend an den Prägezylinder (21) eine Kühleinrichtung vorgesehen ist.Hot foil stamping apparatus according to claim 4,
characterized,
in that a cooling device is provided adjacent to the embossing cylinder (21). Vorrichtung zum Heißfolienprägen nach einem der Ansprüche 1 bis 3,
dadurch gekennzeichnet,
dass das Prägeelement (22) und das Gegenprägeelement (23) jeweils als Platte ausgeführt ist.A hot foil stamping apparatus according to any one of claims 1 to 3,
characterized,
that the embossing element (22) and the counter-embossing element (23) are each designed as a plate. Druckmaschine (100) mit mindestens einem Druckwerk (11) und stromabwärtig dazu mit einer Vorrichtung (10) nach einem der vorangehenden Ansprüche.Printing machine (100) with at least one printing unit (11) and downstream thereof with a device (10) according to one of the preceding claims. Druckmaschine (100) nach Anspruch 7 ausgeführt als DigitaldruckmaschinePrinting machine (100) according to claim 7 designed as a digital printing machine
EP17152360.8A 2016-02-18 2017-01-20 Hot foil stamping device Active EP3208088B1 (en)

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
DE102016202476.0A DE102016202476A1 (en) 2016-02-18 2016-02-18 Apparatus for hot foil stamping

Publications (3)

Publication Number Publication Date
EP3208088A2 true EP3208088A2 (en) 2017-08-23
EP3208088A3 EP3208088A3 (en) 2017-10-11
EP3208088B1 EP3208088B1 (en) 2019-01-02

Family

ID=57860745

Family Applications (1)

Application Number Title Priority Date Filing Date
EP17152360.8A Active EP3208088B1 (en) 2016-02-18 2017-01-20 Hot foil stamping device

Country Status (3)

Country Link
EP (1) EP3208088B1 (en)
DE (1) DE102016202476A1 (en)
DK (1) DK3208088T3 (en)

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN110281312A (en) * 2018-03-19 2019-09-27 海德堡印刷机械股份公司 For processing the machine of printable fabric
IT201800010447A1 (en) * 2018-11-20 2020-05-20 Evolution Tech S R L IRON AND PRESS PRESS
WO2021249885A1 (en) 2020-06-10 2021-12-16 Arcolor Ag Refined product

Families Citing this family (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE102019132140A1 (en) * 2019-11-27 2021-05-27 Bayerische Motoren Werke Aktiengesellschaft Method and device for producing a functional decorative layer

Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE102009019590A1 (en) 2008-05-28 2009-12-03 Gallus Stanz- Und Druckmaschinen Gmbh Printing substrate processing unit for use in hybrid printing machine for e.g. package printing, has cylinder sleeve engaged at embossing cylinder by drive component using eccentric cam in hot foil embossing configuration

Family Cites Families (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
FR2294862A1 (en) * 1974-12-20 1976-07-16 Cit Alcatel PROCESS FOR PRINTING SIGNS ON A SUPPORT
JPS58215394A (en) * 1982-06-10 1983-12-14 Toshiba Corp Printing method
DE3710183A1 (en) * 1987-03-27 1988-10-13 Siemens Ag DEVICE FOR LASER TRANSFER PRINTING
DE4132476A1 (en) * 1991-09-30 1993-04-01 Matthiesen Geb Sievers Gerda Hologram printing on paper or cardboard at high speeds - has varnish layer on web print material to be hardened by UV setting
EP2886360B1 (en) * 2013-12-17 2016-07-20 Braun GmbH Method of laser induced marking of an article
DE102015212279A1 (en) * 2014-08-01 2016-02-04 Heidelberger Druckmaschinen Ag Apparatus and method for embossing a thermally deformable substrate or a thermally deformable material layer on a substrate

Patent Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE102009019590A1 (en) 2008-05-28 2009-12-03 Gallus Stanz- Und Druckmaschinen Gmbh Printing substrate processing unit for use in hybrid printing machine for e.g. package printing, has cylinder sleeve engaged at embossing cylinder by drive component using eccentric cam in hot foil embossing configuration

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN110281312A (en) * 2018-03-19 2019-09-27 海德堡印刷机械股份公司 For processing the machine of printable fabric
IT201800010447A1 (en) * 2018-11-20 2020-05-20 Evolution Tech S R L IRON AND PRESS PRESS
WO2021249885A1 (en) 2020-06-10 2021-12-16 Arcolor Ag Refined product

Also Published As

Publication number Publication date
EP3208088B1 (en) 2019-01-02
DK3208088T3 (en) 2019-03-11
DE102016202476A1 (en) 2017-08-24
EP3208088A3 (en) 2017-10-11

Similar Documents

Publication Publication Date Title
EP1839860A2 (en) Film transfer installation with integrated processing device
EP3208088B1 (en) Hot foil stamping device
EP3431291A1 (en) Printing machine with twin printing unit and method for operating such a printing machine
DE102009007002B4 (en) Operation of a cold foil unit with a printing unit
DE10351305A1 (en) Combined printing machine
EP2902201A2 (en) Device and method of manufacturing a structured surface on a printing substrate
EP2551078B1 (en) Device for stamping with adjustable distance between the rolls
EP2113386A1 (en) Device for punching and finishing
DE69305469T2 (en) Method and printing system for producing multi-part documents
EP2851168A1 (en) Device for punching out labels with counter punch tape
EP2106346B1 (en) Multi-color printing machine having a foil transfer device
EP1843899A1 (en) Stamping tool in a printing mechanism with a matrix and punch
DE102009000445A1 (en) Method and device for coating and embossing a printing substrate in a processing machine
DE102016201747A1 (en) Method for register-accurate processing of a web
DE102015121398A1 (en) Format variable web press
DE102007031001A1 (en) Sheet-
DE102016204072A1 (en) Method for checking a register accuracy of printed images to be printed on two opposite sides of a printing substrate
DE102011108954A1 (en) Punching station for use in in-line narrow web-label printing machine for punching self-adhesive labels, has counter punching cylinder provided with hydrostatic bearing, which is provided with pair of hydrostatic slide bearings
EP2055479A2 (en) Transfer printing procedure
EP3381685B1 (en) Printing machine
DE102009000573A1 (en) Method and device for refining a printing substrate in a processing machine
DE10360187A1 (en) Manufacture of coated wooden board for furniture, by printing colors onto board, coating with synthetic resin and embossing
EP3558689B1 (en) Process and device for producing printed articles
EP1700695A2 (en) Embossing device for product assurance in a sheet-fed printing press and method therefore
DE102022102643B3 (en) Apparatus for embossing substrates, substrate sheet processing machine and method for embossing substrates

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: THE APPLICATION HAS BEEN PUBLISHED

AK Designated contracting states

Kind code of ref document: A2

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

AX Request for extension of the european patent

Extension state: BA ME

PUAL Search report despatched

Free format text: ORIGINAL CODE: 0009013

AK Designated contracting states

Kind code of ref document: A3

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

AX Request for extension of the european patent

Extension state: BA ME

RIC1 Information provided on ipc code assigned before grant

Ipc: B41F 19/02 20060101ALI20170905BHEP

Ipc: B41F 16/00 20060101AFI20170905BHEP

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: REQUEST FOR EXAMINATION WAS MADE

17P Request for examination filed

Effective date: 20180411

RBV Designated contracting states (corrected)

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

GRAP Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOSNIGR1

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: GRANT OF PATENT IS INTENDED

INTG Intention to grant announced

Effective date: 20180907

GRAS Grant fee paid

Free format text: ORIGINAL CODE: EPIDOSNIGR3

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: THE PATENT HAS BEEN GRANTED

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

REG Reference to a national code

Ref country code: GB

Ref legal event code: FG4D

Free format text: NOT ENGLISH

REG Reference to a national code

Ref country code: CH

Ref legal event code: EP

Ref country code: AT

Ref legal event code: REF

Ref document number: 1083847

Country of ref document: AT

Kind code of ref document: T

Effective date: 20190115

RAP2 Party data changed (patent owner data changed or rights of a patent transferred)

Owner name: HEIDELBERGER DRUCKMASCHINEN AG

REG Reference to a national code

Ref country code: IE

Ref legal event code: FG4D

Free format text: LANGUAGE OF EP DOCUMENT: GERMAN

REG Reference to a national code

Ref country code: DE

Ref legal event code: R096

Ref document number: 502017000577

Country of ref document: DE

REG Reference to a national code

Ref country code: DK

Ref legal event code: T3

Effective date: 20190304

REG Reference to a national code

Ref country code: NL

Ref legal event code: MP

Effective date: 20190102

REG Reference to a national code

Ref country code: LT

Ref legal event code: MG4D

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: NL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: ES

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: LT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: FI

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: PL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: SE

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: NO

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190402

Ref country code: PT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190502

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: GR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190403

Ref country code: BG

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190402

Ref country code: IS

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190502

Ref country code: HR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: RS

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: LV

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LU

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20190120

REG Reference to a national code

Ref country code: DE

Ref legal event code: R097

Ref document number: 502017000577

Country of ref document: DE

REG Reference to a national code

Ref country code: BE

Ref legal event code: MM

Effective date: 20190131

REG Reference to a national code

Ref country code: IE

Ref legal event code: MM4A

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: CZ

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: RO

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: SK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: AL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: MC

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: EE

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: IT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SM

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

Ref country code: BE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20190131

26N No opposition filed

Effective date: 20191003

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: IE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20190120

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SI

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: TR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LI

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20200131

Ref country code: CH

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20200131

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: CY

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: HU

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT; INVALID AB INITIO

Effective date: 20170120

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20190102

REG Reference to a national code

Ref country code: AT

Ref legal event code: MM01

Ref document number: 1083847

Country of ref document: AT

Kind code of ref document: T

Effective date: 20220120

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: AT

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20220120

P01 Opt-out of the competence of the unified patent court (upc) registered

Effective date: 20230427

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: GB

Payment date: 20260121

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DE

Payment date: 20260131

Year of fee payment: 10

Ref country code: DK

Payment date: 20260121

Year of fee payment: 10

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 20260125

Year of fee payment: 10
