  • the present invention relates to a wearable danger detection device and a danger notification device, and more particularly, to a device for automatically notifying a danger situation to a predetermined contact network when a danger is detected through a danger detection device worn on a human body.
  • a risk notification service providing system and method Korean Laid-Open Patent Publication No. 2012-0015240
  • a risk notification service providing system and method Korean Laid-Open Patent Publication No. 2012-0015240
  • the prior art requires a user to generate a dangerous signal, so that a criminal may signal a dangerous signal.
  • the present invention automatically detects a dangerous situation worn on the user's body, and by using the paired mobile terminal to notify the emergency contact to the emergency network, the danger that can quickly notify the danger situation in the situation that the perpetrator does not recognize Provide a sensing device.
  • the present invention receives a danger signal from the risk detection device worn on the body and notifies the emergency situation to the emergency contact network, by deferring the notice of the danger situation until the set conditions are satisfied, the possibility of false danger situation transfer according to the error of the situation recognition error
  • a risk notification device that blocks the situation in advance and enables more accurate risk situation determination and notification.
  • a danger signal receiving unit for receiving a danger signal from an external device through short-range communication, when a danger signal is received from the external device, a danger notice to notify the predetermined contact network
  • the external device may include a grace control unit configured to provide a risk occurrence message to the user and to defer the notification of the dangerous situation until the preset condition is satisfied.
  • the grace control unit when the external device detects a danger, the grace control unit provides a user with a risk occurrence message including a menu for selecting whether to transmit a dangerous situation, and then stops the user from transmitting.
  • control is performed so as not to proceed with the risk situation notification to the preset communication network, and if there is no transmission stop selection by the user or the preset time elapses without the user's selection, a risk situation is set in the preset communication network. Can be controlled to notify.
  • the risk notification unit may notify the predetermined contact point of the dangerous situation when the location of the user identified from the external device is outside the preset safety area or within the preset danger area.
  • the risk notification unit may transmit the GPS information of the current location or the last updated value of the GPS information when the danger situation notification.
  • the risk detection apparatus for detecting a user's risk situation, the danger signal transmitter for transmitting a danger signal to the mobile terminal through the short-range communication and the sensitivity to adjust the sensitivity of the risk detection sensor It may include a control unit.
  • the risk sensor using at least one of the acceleration sensor and the position sensor, it can detect at least one of the shake, shock, position of the user.
  • the sensitivity control unit when the user's location enters a predetermined danger zone, it may change the sensitivity for the shaking and / or shock detection to a predetermined value.
  • the dangerous situation by wearing the user's body automatically detects the dangerous situation, and by using the paired mobile terminal to notify the emergency situation to the emergency contact network, the dangerous situation quickly in a situation that the perpetrator does not recognize
  • a risk detection device is provided to alert the public.
  • Hazard notification devices by receiving a danger signal from the danger detection device worn on the body and notifying the emergency situation to the emergency contact network, by deferring the notification of the dangerous situation until the set conditions are satisfied, according to the dangerous situation recognition error
  • Hazard notification devices are provided to prevent potential risk communication in advance and provide more accurate risk assessment and notification.
  • FIG. 1 is a view showing the overall process of detecting a risk and using the wearable danger detection device according to an embodiment of the present invention to notify the emergency contact network.

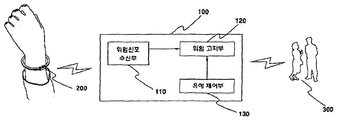

  • Figure 2 is a block diagram showing the configuration of the danger notice device according to an embodiment of the present invention.
  • Figure 3 is a block diagram showing the configuration of the wearable danger detection device according to an embodiment of the present invention.
  • FIG. 4 is a view showing a ring-shaped danger detection device according to an embodiment of the present invention.
  • Figure 5 is a view showing a pendant danger detection device according to an embodiment of the present invention.
  • FIG. 6 is a view showing a configuration for setting the detailed function of the danger detection device and the danger notice device according to an embodiment of the present invention.
  • FIG. 7 is a view showing a ring-shaped danger detection apparatus according to another embodiment of the present invention.
  • FIG. 8 is a view showing an example of wearing a ring-shaped danger detection apparatus according to another embodiment of the present invention.
  • FIG. 1 is a diagram illustrating an overall process of detecting a danger and notifying an emergency contact network using a wearable danger detection device according to an embodiment of the present invention.
  • the risk detection device is configured in the shape of jewelry to be worn on the body, it is possible to accurately recognize the danger situation through the impact detection, and equipped with an emergency button, such as simple operation It is desirable to be able to easily notify the danger situation.
  • a user may wear a risk detecting device 200, and detect a dangerous situation through shaking, impact detection, user location, etc. due to falls, falls, or offenders. If so, the user may notify the danger situation to the emergency contact network 300 through the danger notification device 100 possessed by the user.
  • the guardian, etc. who have received an emergency call, can report the dangerous situation to 112, 119, etc. and take measures to ensure that the user can be immediately remedied.
  • the risk detection device 200 may be configured in the shape of an article that can be worn on the body, it may be in the form of a ring, pendant, watch. That is, when a dangerous situation occurs due to the threat of the perpetrator (criminal), if the perpetrator finds out that the user possesses the dangerous detecting device, the dangerous detecting device 200 may be taken away or may face a larger dangerous situation. Danger detection device 200 preferably has the same shape as the article that can be worn on the body.
  • the risk notification device 100 may be configured as a mobile terminal possessed by the user, the mobile terminal may be installed and driven to detect the danger and to notify the danger to the emergency contact network.
  • Figure 2 is a block diagram showing the configuration of the danger notice device according to an embodiment of the present invention.
  • the danger notice device 100 may include a danger signal receiver 110, a danger notice unit 120, and a grace controller 130.
  • the danger signal receiver 110 may receive a danger signal from an external device through short-range communication.
  • the external device is, for example, a danger detection device 200, may be implemented in the shape of an article (ring, bracelet, necklace, etc.) wearable on the body.
  • the danger notification unit 120 may notify the preset communication of the danger situation.
  • the predetermined contact network can be set arbitrarily by the user, such as parents, guardians, police departments, fire departments, welfare officers, etc., and at least one contact point for emergency contact can be designated in advance.
  • the risk situation can be identified through the impact detected by the external device, the user's movement, etc. In this case, it can be determined that the risk occurred due to the threat of criminals.
  • a dangerous situation when the user leaves the area set as the safe area or enters the area set as the dangerous area, it may be determined that a dangerous situation has occurred.
  • dementia elderly people, children, etc. may wear the risk detection device 200 of the present invention, and immediately dangerous if the safety area (ex. Within 2 km from the address) or the safety route (ex. Recognizing that a situation has occurred, a hazard notice can be made to the guardian.
  • the current location information of the user may be transmitted together, and for this purpose, the GPS information of the current location or the last updated value of the GPS information may be transmitted.
  • the GPS information of the current location is known, the GPS value of the current location is transmitted, and if it is difficult to determine the current location of the user (ex. When entering an area where no GPS signal is detected), The last update value (the area where the GPS value was last detected) can be sent.
  • the grace control unit 130 provides a user (elderly person) with a danger message including a menu for selecting whether to transmit the dangerous situation, and maintains the dangerous situation until the preset condition is satisfied.
  • a danger message including a menu for selecting whether to transmit the dangerous situation, and maintains the dangerous situation until the preset condition is satisfied.
  • various conditions such as a predetermined time elapsed and a specific action of the user may be set as the preset condition.
  • the risk status is not notified to the emergency contact network immediately upon detection of the risk occurrence, but the risk occurrence message is provided to the user (elderly person) through the screen, so that the risk occurrence is true for a predetermined time (ex. 10 seconds). You can be given time to determine. Therefore, the user (elderly person) may cancel the transmission of the dangerous message when it is determined that the dangerous message is displayed on the screen even though it is not a dangerous situation due to a malfunction of the device.
  • the user after the risk occurrence message is provided to the user (elderly person) through the screen, if the user selects to stop transmission, the user does not notify the set danger situation to the emergency contact network, and there is no transmission stop selection of the user, or After a predetermined time (eg 10 seconds) has elapsed without the choice of, the emergency situation can be notified to the established emergency contact network.
  • a predetermined time eg 10 seconds
  • the message is suspended until the condition is satisfied so that an incorrect dangerous situation message due to a device malfunction or a wrong operation is not delivered. Increase the reliability of the identification and message delivery.
  • Figure 3 is a block diagram showing the configuration of a wearable danger detection device according to an embodiment of the present invention.
  • the risk detecting apparatus 200 may include a risk detecting sensor 210, a danger signal transmitter 220, and a sensitivity controller 230.
  • the risk sensor 210 may detect a dangerous situation through a user's shaking, shock, or user's location information.
  • the danger detection sensor 210 may include at least one of an acceleration sensor and a position detection sensor, and through this, may detect at least one of shaking, shock and position of the user.
  • the danger signal transmitter 220 may transmit a danger signal to the mobile terminal through short-range communication when a user's danger situation is detected.
  • the short range communication may include various communication methods such as Bluetooth, Radio Frequency (RF), Zigbee.
  • the sensitivity control unit 230 may adjust the sensitivity of the danger detection sensor 210. To this end, the sensitivity control unit 230 may change the sensitivity for the shaking and / or shock detection to a predetermined value when the user enters the predetermined danger zone. That is, the sensitivity of the risk detection sensor 200 for detecting a user's dangerous situation can be set to operate sensitively or insensitively depending on the user's location or current situation in order to prevent the risk of malfunction or to efficiently use the battery. have.
  • the sensitivity when the user enters the preset danger zone, the sensitivity may be adjusted so that the danger sensor 200 may operate sensitively, and if the user leaves the preset danger zone, the sensitivity may be adjusted again. In comparison, it can be made relatively insensitive. In other words, it is necessary to be sensitive to a small shock, etc. in the danger zone, there is a risk of malfunction, and even if the amount of battery usage increases, it can be set to automatically change to operate with a sensitive sensitivity. On the contrary, in the case of leaving the danger zone, if the sensitivity is set too sensitive, there is a high possibility of malfunction, and since the battery usage increases, the sensitivity may be set to be automatically changed slightly insensitively.
  • the wearable risk detection device automatically detects the occurrence of the dangerous situation, and transmits the dangerous situation through the communication with the dangerous notification device, the risk according to the current situation of the user Since the sensitivity of the sensor for detecting a situation can be set differently, a risk detecting device for detecting a dangerous situation more accurately and efficiently can be provided.
  • FIG. 4 is a view showing a ring-shaped danger detection apparatus according to an embodiment of the present invention
  • Figure 5 is a view showing a pendant risk detection device according to an embodiment of the present invention.
  • the risk sensing device 200 may be embodied in a ring shape, and may be made of a resilient material that can be adjusted in a fine size according to a user's body size.
  • one side of the ring-shaped danger detection device 200 may be provided with a status display lamp 201 for displaying the current danger situation, an emergency call button 202 for emergency call. That is, when a dangerous situation occurs, the dangerous situation may be automatically transmitted by the impact amount detection or the like, or by manually pressing the emergency call button 202, the dangerous situation may be transmitted to the predetermined emergency contact network.
  • FIG. 5 is a danger detection device 200 of the pendant shape.
  • a user may wear a necklace including the pendant, and as shown in FIG. 4, a status display lamp 201 and an emergency call button 202 for emergency call may be provided.
  • the risk detecting device 200 may be configured in a form that can be worn on a body such as a necklace, a bracelet, anklets, and the like. It may be configured to be worn regardless of physical condition.
  • FIG. 6 is a view showing a configuration for setting the detailed function of the danger detection device and the danger notification device according to an embodiment of the present invention. That is, the detailed functions of the risk detection device and the danger notice device may be set to arbitrary values, and the setting menu may be provided through an application program. An example of the detailed function setting menu will be described below.
  • Detailed function setting 600 shown in the example of Figure 6 as a possible configuration emergency contact possible telephone number setting 610, the sensitivity setting of the danger sensor 620, the safety zone or dangerous zone setting (630), alarm method Settings 640, other settings 650, and the like may be provided.
  • the phone number setting (610) menu contact management (611), such as the addition of an emergency contact phone number and the change of the phone number, is possible.
  • the sensitivity setting (620) menu the sensitivity may be set (621) through power selection. have.
  • the safe zone setting (630) menu provides a user with a dangerous situation alarm Method 641 may be set.
  • the other setting menu 650 may provide a grace period setting 651 for deferring a danger situation notification, whether to provide an alarm 652, a menu 653 for setting a period of GPS update, and the like. .
  • a risk detection device and a risk notification device that meets the needs of the user may be provided.
  • FIG. 7 and 8 are diagrams showing a ring-shaped danger detection apparatus and its wearing example according to another embodiment of the present invention.
  • the user can wear a ring-shaped danger detection device on any finger, the ring-shaped danger detection device detects the impact amount when a dangerous situation occurs, the dangerous situation is automatically transmitted or emergency call By manually pressing the button 202, the risk situation can be transmitted to the predetermined emergency contact network.
  • the emergency call button 202 is located in the palm direction, the emergency call signal can be easily transmitted even if the thumb or the like is slightly moved. In addition, it is possible to effectively notify the user of the danger situation.
  • the offender by wearing on the user's body automatically detects the danger situation, and by alerting the emergency situation to the emergency contact network through a paired mobile terminal, the offender quickly recognizes the situation Hazard detection devices can be provided to warn of dangerous situations.
  • Hazard notification devices can be provided that block in advance and provide more accurate risk determination and notification.
  • the risk notification method using the risk detection apparatus described in accordance with an embodiment of the present invention can be recorded in a computer readable medium including program instructions for performing operations implemented by various computers.
  • the computer readable medium may include program instructions, data files, data structures, etc. alone or in combination.
  • the medium or program instructions may be those specially designed and constructed for the purposes of the present invention, or they may be of the kind well-known and available to those having skill in the computer software arts.
  • Examples of computer-readable recording media include magnetic media such as hard disks, floppy disks, and magnetic tape, optical media such as CD-ROMs, DVDs, and magnetic disks, such as floppy disks.
  • Magneto-optical media and hardware devices specifically configured to store and execute program instructions, such as ROM, RAM, flash memory, and the like.
  • program instructions include not only machine code generated by a compiler, but also high-level language code that can be executed by a computer using an interpreter or the like.
