WO2017175261A1 - Appareil de détection de turbidité, procédé de détection de turbidité et appareil d'inspection immergé - Google Patents

Appareil de détection de turbidité, procédé de détection de turbidité et appareil d'inspection immergé Download PDF

Info

Publication number
WO2017175261A1
WO2017175261A1 PCT/JP2016/004654 JP2016004654W WO2017175261A1 WO 2017175261 A1 WO2017175261 A1 WO 2017175261A1 JP 2016004654 W JP2016004654 W JP 2016004654W WO 2017175261 A1 WO2017175261 A1 WO 2017175261A1
Authority
WO
WIPO (PCT)
Prior art keywords
turbidity
region
bright
dark
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2016/004654
Other languages
English (en)
Japanese (ja)
Inventor
武史 島本
信昭 中村
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Panasonic Intellectual Property Management Co Ltd
Original Assignee
Panasonic Intellectual Property Management Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Panasonic Intellectual Property Management Co Ltd filed Critical Panasonic Intellectual Property Management Co Ltd
Priority to JP2017513830A priority Critical patent/JP6145728B1/ja
Publication of WO2017175261A1 publication Critical patent/WO2017175261A1/fr
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • G—PHYSICS
    • G01—MEASURING; TESTING
    • G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
    • G01N21/00—Investigating or analysing materials by the use of optical means, i.e. using sub-millimetre waves, infrared, visible or ultraviolet light
    • G01N21/17—Systems in which incident light is modified in accordance with the properties of the material investigated

Definitions

  • the turbidity detection device includes a measurement member having a dark region and a bright region, a camera that captures the dark region and the bright region of the measurement member through a liquid and generates image data, and an image of the dark region in the image data
  • a turbidity detecting unit for detecting turbidity based on the information and the image information of the bright region.
  • the bright area of the measuring member has a higher brightness than the dark area.
  • the ground unit 200 includes a computer 250 that issues instructions to the underwater inspection apparatus 10, a controller 220 that is operated by a user, and a communication unit 230 that performs communication between the computer 250 and the underwater robot 100.
  • the CPU210 acquires the image image

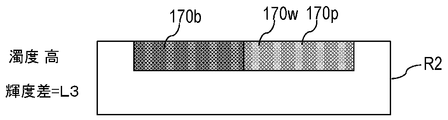

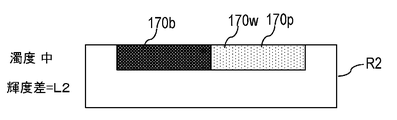

  • the turbidity detection unit 214 of the CPU 210 calculates the brightness of each of the bright area 170w and the dark area 170b based on the image of the portion 170p of the measurement member 170 included in the acquired image (step S22).
  • the turbidity detection unit 214 obtains a normalized luminance difference Nc that is a value obtained by normalizing the obtained luminance difference between the bright region 170w and the dark region 170b based on (Equation 1) (step S23).
  • the turbidity detecting unit 214 refers to the luminance difference-turbidity correspondence information 218a (see FIG. 7) and calculates the turbidity from the obtained normalized luminance difference Nc (step S24).
  • the distance determining unit 216 refers to the turbidity-distance correspondence information 218b (see FIG. 8), and determines the distance from the obtained turbidity to the inspection object 10P (step S25).
  • the memory 218 holds one luminance difference-turbidity correspondence information 218a.
  • the memory 218 holds a plurality of luminance difference-turbidity correspondence information, and may be used by switching according to the application.
  • the memory 218 may hold two types of luminance difference-turbidity correspondence information 1218a and 2218a, each indicating the relationship between turbidity and the subject distance to the inspection object 10P.
  • the luminance difference-turbidity correspondence information 1218a is used when performing a rough inspection
  • the luminance difference-turbidity correspondence information 2218a is used when performing a precise inspection.
  • the underwater robot 100 is separated from the inspection object 10P and the image of the inspection object 10P is taken, but the clarity of the image is deteriorated, but a wide range that is good at once. Therefore, it is possible to shorten the time for capturing an image of the entire inspection range. Such an inspection is effective when it is desired to first obtain an overview of the entire inspection object 10P.
  • the luminance difference-turbidity correspondence information 2218a is used, the range that can be captured at a time becomes narrower by capturing the image of the inspection target 10P by bringing the underwater robot 100 closer to the inspection target 10P, and the inspection range is reduced.
  • the memory 218 holds two types of brightness difference-turbidity correspondence information 1218a and 2218a according to the use for rough inspection and precise inspection, and switches between them. By using it, it becomes possible to perform a suitable inspection according to the application.
  • the turbidity-distance correspondence information 218b shown in FIG. 8 gives the distance to the subject continuously with respect to the turbidity, but the subject distance information is not limited to this.
  • FIG. 11B shows other turbidity-distance correspondence information 1218b in the first embodiment.
  • the turbidity-distance correspondence information 1218b shown in FIG. 11B gives the distance to the inspection object 10P stepwise based on the turbidity, that is, discretely.
  • the CPU 210 of the computer 250 controls the position of the underwater robot 100 so that the distance from the underwater robot 100 to the inspection object 10P is the calculated distance (step S35).
  • the light irradiated on the measurement member 170 is scattered light from the surroundings, or the inspection object 10P, the waterproof container 118, and the measurement from the illumination device 120.
