Abstract
本实用新型涉及一种除尘器，尤其是涉及一种易卸灰脉冲单机袋式除尘器。其主要是解决现有技术所存在的除尘器体积大，安装成本高，潮气易浸湿布袋，影响除尘清灰效果，并且卸灰较为不易等的技术问题。本实用新型包括支架(1)，其特征在于所述的支架(1)上架设有箱体(2)，箱体内设有滤袋及袋笼(3)，箱体上端设有净气室(4)，净气室内设有多个脉冲阀(5)，脉冲阀通过喷吹管(8)连接储气包(7)，箱体下部设有灰斗(9)，灰斗下端设有重力卸灰阀(10)，重力卸灰阀连接有软管(11)，软管上设有喷嘴(12)。
The utility model relates to a dust remover, in particular to a pulse single-machine bag type dust remover which is easy to unload dust. It mainly solves the technical problems existing in the prior art that the dust collector is large in volume, high in installation cost, easy to soak the cloth bag with moisture, affects the effect of dust removal and ash removal, and is difficult to unload ash. The utility model comprises a bracket (1), which is characterized in that a box (2) is mounted on the bracket (1), a filter bag and a bag cage (3) are arranged in the box, and a clean air chamber is arranged at the upper end of the box (4), there are multiple pulse valves (5) in the clean air chamber, the pulse valves are connected to the gas storage bag (7) through the blowing pipe (8), the lower part of the box is provided with an ash hopper (9), and the lower end of the ash hopper is provided with a gravity The ash unloading valve (10) and the gravity ash unloading valve are connected with a hose (11), and the hose is provided with a nozzle (12).
Description
Technical field
The utility model relates to a kind of deduster, especially relates to a kind of grey pulse unit sack cleaner that is prone to unload.
Background technology
Along with development of modern industry, dust is serious day by day to the influence that the pollution and the human beings'health of environment causes, and administers dust pollution, purifies existent environment of people, has become proprietary common recognition.Clean in order to safeguard production environment, in time cleaning is by the place of dust pollution.Deduster can be widely used in clearing up polishing machine, automobile, motorcycle, Spring Industry mill spring machine, chemical industry, cement building material, Wood Processing, grain processing, pharmacy, machining can industry.But the deduster volume that uses at present is big, and installation cost is high, and moisture is prone to soak cloth bag, influences the removing dust and clearing ash effect, and it is comparatively difficult to unload ash.
The utility model content
The utility model provides a kind of grey pulse unit sack cleaner that is prone to unload, and it mainly is that to solve existing in prior technology deduster volume big, and installation cost is high, and moisture is prone to soak cloth bag, influence the removing dust and clearing ash effect, and unloads comparatively difficult etc. the technical problem of ash.
The above-mentioned technical problem of the utility model mainly is able to solve through following technical proposals:
Being prone to of the utility model unloaded grey pulse unit sack cleaner, comprises support, and described support is put on the shelf and is provided with casing; Be provided with filter bag and bag cage in the casing, the casing upper end is provided with air-purifying chamber, is provided with a plurality of pulse valves in the air-purifying chamber; Pulse valve connects the gas storage bag through the winding-up pipe, and lower box is provided with ash bucket, and the ash bucket lower end is provided with the gravity unloading valve; The gravity unloading valve is connected with flexible pipe, and flexible pipe is provided with nozzle.
As preferably, described casing outside is provided with the gas storage bag support, and gas storage is packaged on the gas storage bag support.
Therefore, the utility model has satisfied the miniaturization demand, makes the dust that sticks on the filter bag peeled off, and falls in the ash bucket, has reduced the dedusting resistance, has improved dust removing effects, and it is more or less freely, simple and reasonable for structure to utilize the gravity unloading valve to unload ash.
Description of drawings

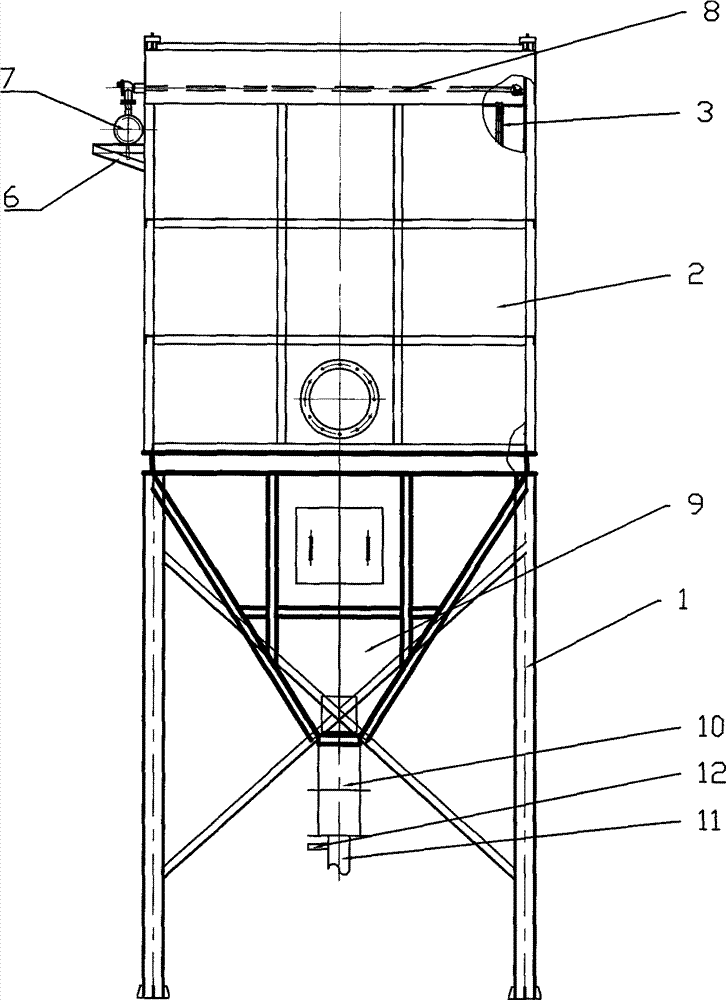

Accompanying drawing 1 is a kind of structural representation of the utility model.
The specific embodiment
Pass through embodiment below, and combine accompanying drawing, do further bright specifically the technical scheme of the utility model.
Embodiment: being prone to of this example unloaded grey pulse unit sack cleaner, like Fig. 1, Fig. 2, comprises support 1; Support is put on the shelf and is provided with casing 2, is provided with filter bag and bag cage 3 in the casing, and the casing upper end is provided with air-purifying chamber 4; Be provided with a plurality of pulse valves 5 in the air-purifying chamber, pulse valve connects gas storage bag 7 through winding-up pipe 8, and lower box is provided with ash bucket 9; The ash bucket lower end is provided with gravity unloading valve 10, and the gravity unloading valve is connected with flexible pipe 11, and flexible pipe is provided with nozzle 12.The casing outside is provided with gas storage bag support 6, and gas storage bag 7 is located on the gas storage bag support.
The above is merely the specific embodiment of the utility model; But the architectural feature of the utility model is not limited thereto; Any those skilled in the art is in the field of the utility model, and variation of being done or modification all are encompassed among the claim of the utility model.
