CN203355893U - Multi-stage dehydrating device for regenerated polypropylene fiber production line - Google Patents

Abstract

The multi-stage dehydration device of the recycled polypropylene production line includes a plurality of dehydration bodies arranged in sequence. Each dehydration body includes a shell, a hollow drum inside the shell, and a transmission motor that drives the drum to rotate. The two shells Both ends of the drum are provided with a feed port and a discharge port. Both ends of the drum are provided with openings. The feed port and the discharge port are respectively connected with the openings at both ends of the drum. There are a plurality of dehydration holes, and a communication pipe is connected between the discharge port and the feed port of two adjacent dehydration bodies, and a fan for absorbing materials is arranged in the communication pipe. The cleaned waste plastics can enter the drum from the feed port, and the drum can rotate at high speed driven by the transmission motor, so that the water can be thrown out from the dehydration hole, and the two adjacent dehydration bodies are separated by connecting pipes and fans. The transportation of waste plastics, after dehydration by multiple dehydration bodies, makes the waste plastics more dry, which can reduce the difficulty of drying and shorten the drying time during drying.

Description

Multi-stage dehydration device for recycled polypropylene fiber production line

technical field

The utility model relates to the field of recycled polypropylene production equipment, in particular to a multi-stage dehydration device for a recycled polypropylene production line.

Background technique

With the development of recycling technology, waste plastics can be recycled for the re-production of polypropylene. At present, the waste plastics required for the production of recycled polypropylene need to be cut and cleaned in order to meet the technical requirements of production, but after cleaning, the waste plastics need to be dehydrated and dried.

The current patent publication number 201308864Y provides a continuous centrifugal dehydration device for dehydrating plastic sheets, which includes an outer cylinder, a centrifugal drum disposed in the outer cylinder, and a transmission motor that drives the centrifugal drum to rotate. The top of the body is provided with a feed inlet, and the bottom is provided with a water outlet. The side wall of the centrifugal drum is provided with mesh holes, the inner wall is provided with dehydration blades, and the top of the side wall is provided with a discharge port.

The continuous centrifugal dehydration device provided above has a relatively complicated structure. The plastic sheet is driven upward to the discharge port by the dehydration blade, and the whole device is vertically arranged, which makes the dehydration efficiency of the plastic sheet low and uneven. Or, the number of dehydration device is only one, so it cannot guarantee that the waste plastics after cutting can reach the drying degree required by production, if drying is required, it will also increase the difficulty of drying.

Utility model content

The utility model provides a multi-stage dehydration device for a recycled polypropylene fiber production line. The main purpose of the utility model is to overcome the problems of low dehydration efficiency and uneven dehydration of the existing dehydration device.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions:

The multi-stage dehydration device of the recycled polypropylene production line includes a plurality of dehydration bodies arranged in sequence. Each dehydration body includes a shell, a hollow drum inside the shell, and a transmission motor that drives the drum to rotate. The two shells Both ends of the drum are provided with a feed port and a discharge port. Both ends of the drum are provided with openings. The feed port and the discharge port are respectively connected with the openings at both ends of the drum. There are a plurality of dehydration holes, and a communication pipe is connected between the discharge port and the feed port of two adjacent dehydration bodies, and a fan for absorbing materials is arranged in the communication pipe.

The dehydration device also includes a drying mechanism, a material pipeline is connected between the drying mechanism and the discharge port of the dehydration body at the end of the arrangement, and a fan for absorbing materials is arranged in the material pipeline.

A water outlet is provided at the bottom of the housing, and a support frame is provided at the bottom.

The number of the dehydrating bodies is two.

The drum is horizontally installed in the casing.

From the above description of the utility model, it can be seen that compared with the prior art, the utility model has the following advantages: the waste plastics after cleaning can enter the drum from the feed port, and the drum can rotate at a high speed driven by the drive motor. In this way, the water is thrown out from the dehydration holes, and the waste plastics are transported between the adjacent two dehydration bodies through connecting pipes and fans. After dehydration by multiple dehydration bodies, the waste plastics are drier, and the drying time can be reduced during drying. Dry difficulty, shorten drying time. In addition, the drum is horizontally installed in the casing, which can make the dehydration of waste plastics more uniform. This dehydration method has higher dehydration efficiency than the existing dehydration method.

Description of drawings

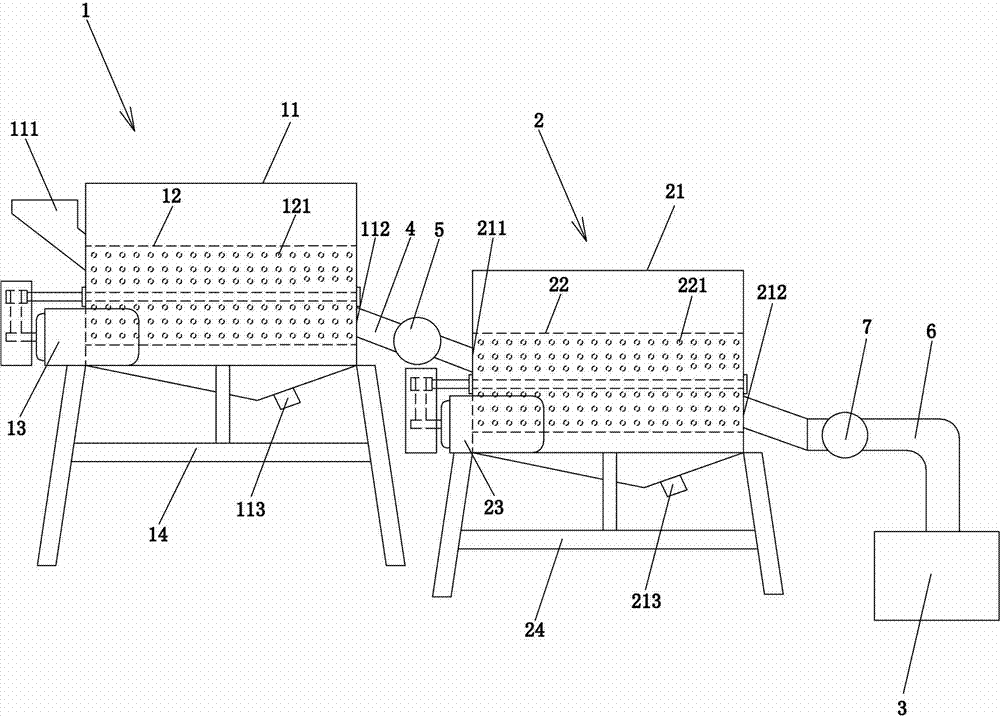

Fig. 1 is the schematic diagram of the utility model.

Detailed ways

Refer to Figure 1. The multi-stage dehydration device of the recycled polypropylene fiber production line includes two sequentially arranged dehydration bodies 1, a dehydration body 2 and a drying mechanism 3. The dehydration body 1 includes a shell 11 and a hollow rotor horizontally installed in the shell 11. The drum 12 and the transmission motor 13 that drives the drum 12 to rotate, the side wall of the drum 12 is provided with a plurality of dehydration holes 121, and its two ends are provided with openings (not marked in the figure), the two sides of the housing 11 The feed port 111 and the discharge port 112 are respectively provided at the end, and the feed port 111 and the discharge port 112 are respectively connected with the openings (not shown in the figure) at both ends of the drum 12, and the bottom of the housing 11 is opened A water outlet 113 is provided, and a support frame 14 is provided at the bottom.

Refer to Figure 1. The dehydration body 2 includes a housing 21, a hollow drum 22 horizontally installed in the housing 21, and a transmission motor 23 that drives the drum 22 to rotate. The side wall of the drum 22 is provided with a plurality of dehydration holes 221. Both ends are provided with openings (not marked in the figure), and the two ends of the housing 21 are respectively provided with a material inlet 211 and a material outlet 212, and the material inlet 211 and the material outlet 212 are connected with the drum 22 respectively. The openings at both ends (not marked in the figure) are connected, the bottom of the housing 21 is provided with a water outlet 213, and the bottom is provided with a support frame 24, the discharge port 112 of the dehydration body 1 and the outlet of the dehydration body 2 A communication pipe 4 is connected between the feed ports 211, and a fan 5 is arranged in the communication pipe 4, and a material pipe 6 is connected between the drying mechanism 3 and the discharge port 212, and a fan 7 is arranged in the material pipe 6. .

Refer to Figure 1. The cleaned waste plastic enters the drum 12 from the feed port 111, and the drum 12 rotates at a high speed driven by the transmission motor 13, and the waste plastic is driven by the drum 12, and the water in it can be thrown out from the dehydration hole 121 , the fan 5 sucks the dehydrated waste plastics in the drum 12 from the discharge port 112 to the feed port 211 through the communication pipe 4, thereby entering the drum 22, and the drum 22 is driven by the transmission motor 23 to the waste plastics in the drum 22. The waste plastics are further dehydrated, and the waste plastics after further dehydration are sucked into the drying mechanism 3 by the fan 7 through the material pipeline 6 for drying, and the water thrown out by the drum 12 and the drum 22 is respectively discharged from the water outlet 113 and the outlet 113. Water port 213 flows out. The drum 21 and drum 22 installed horizontally can make the dehydration of waste plastics more uniform, and the waste plastics after twice dehydration will be drier, and the drying difficulty can be reduced during drying.

In addition, the number of the dehydration bodies is not limited to two, and may also be three, four or other suitable numbers.

The above is only a specific embodiment of the utility model, but the design concept of the utility model is not limited thereto, and any non-substantial modification of the utility model by using this concept should be an act of violating the protection scope of the utility model.

Claims (5)

1. the multistage dewater unit of regeneration polypropylene fibre production line, it is characterized in that: comprise a plurality of dehydration bodies that are arranged in order, each dehydration body comprises housing, be located at the rotary drum of the hollow in housing and drive the driving motor that rotary drum rotates, the two ends of described housing are respectively equipped with charging aperture and discharging opening, the two ends of described rotary drum are equipped with opening, this charging aperture and discharging opening are connected with the opening at rotary drum two ends respectively, the sidewall of this rotary drum is provided with a plurality of dewatering holes, be connected with a connecting pipe road between the discharging opening of adjacent two dehydration bodies and charging aperture, be provided with a blower fan for absorbing material in this connecting pipe.

2. the multistage dewater unit of regeneration polypropylene fibre production line as claimed in claim 1, it is characterized in that: also comprise a drying mechanism, be connected with a material pipe between the discharging opening of the dehydration body of this drying mechanism and align ends, be provided with a blower fan for absorbing material in this material pipe.

3. the multistage dewater unit of regeneration polypropylene fibre production line as claimed in claim 1 or 2, it is characterized in that: the bottom of described housing offers a delivery port, and this bottom is provided with a bracing frame.

4. the multistage dewater unit of regeneration polypropylene fibre production line as claimed in claim 1 or 2, it is characterized in that: the quantity of described dehydration body is two.

5. the multistage dewater unit of regeneration polypropylene fibre production line as claimed in claim 1 or 2, it is characterized in that: described rotary drum flatly is installed in housing.
