EP0000023B1 - Pentyl-urées substituées en omega, leur procédé de préparation et leur application comme fongicides - Google Patents

Pentyl-urées substituées en omega, leur procédé de préparation et leur application comme fongicides Download PDF

Info

Publication number
EP0000023B1
EP0000023B1 EP78100035A EP78100035A EP0000023B1 EP 0000023 B1 EP0000023 B1 EP 0000023B1 EP 78100035 A EP78100035 A EP 78100035A EP 78100035 A EP78100035 A EP 78100035A EP 0000023 B1 EP0000023 B1 EP 0000023B1
Authority
EP
European Patent Office
Prior art keywords
formula
group
carbon atoms
urea
substituted
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired
Application number
EP78100035A
Other languages
German (de)
English (en)
Other versions
EP0000023A1 (fr
Inventor
Wilhelm Dr. Brandes
Werner Dr. Daum
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Bayer AG
Original Assignee
Bayer AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority claimed from DE19772725315 external-priority patent/DE2725315A1/de
Priority claimed from DE19772758108 external-priority patent/DE2758108A1/de
Application filed by Bayer AG filed Critical Bayer AG
Publication of EP0000023A1 publication Critical patent/EP0000023A1/fr
Application granted granted Critical
Publication of EP0000023B1 publication Critical patent/EP0000023B1/fr
Expired legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07D—HETEROCYCLIC COMPOUNDS
    • C07D317/00—Heterocyclic compounds containing five-membered rings having two oxygen atoms as the only ring hetero atoms
    • C07D317/08—Heterocyclic compounds containing five-membered rings having two oxygen atoms as the only ring hetero atoms having the hetero atoms in positions 1 and 3
    • C07D317/44—Heterocyclic compounds containing five-membered rings having two oxygen atoms as the only ring hetero atoms having the hetero atoms in positions 1 and 3 ortho- or peri-condensed with carbocyclic rings or ring systems
    • C07D317/46—Heterocyclic compounds containing five-membered rings having two oxygen atoms as the only ring hetero atoms having the hetero atoms in positions 1 and 3 ortho- or peri-condensed with carbocyclic rings or ring systems condensed with one six-membered ring
    • C07D317/48—Methylenedioxybenzenes or hydrogenated methylenedioxybenzenes, unsubstituted on the hetero ring
    • C07D317/50—Methylenedioxybenzenes or hydrogenated methylenedioxybenzenes, unsubstituted on the hetero ring with only hydrogen atoms, hydrocarbon or substituted hydrocarbon radicals, directly attached to atoms of the carbocyclic ring
    • C07D317/58—Radicals substituted by nitrogen atoms
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01N—PRESERVATION OF BODIES OF HUMANS OR ANIMALS OR PLANTS OR PARTS THEREOF; BIOCIDES, e.g. AS DISINFECTANTS, AS PESTICIDES OR AS HERBICIDES; PEST REPELLANTS OR ATTRACTANTS; PLANT GROWTH REGULATORS
    • A01N47/00—Biocides, pest repellants or attractants, or plant growth regulators containing organic compounds containing a carbon atom not being member of a ring and having no bond to a carbon or hydrogen atom, e.g. derivatives of carbonic acid
    • A01N47/08—Biocides, pest repellants or attractants, or plant growth regulators containing organic compounds containing a carbon atom not being member of a ring and having no bond to a carbon or hydrogen atom, e.g. derivatives of carbonic acid the carbon atom having one or more single bonds to nitrogen atoms
    • A01N47/28—Ureas or thioureas containing the groups >N—CO—N< or >N—CS—N<
    • A01N47/34—Ureas or thioureas containing the groups >N—CO—N< or >N—CS—N< containing the groups, e.g. biuret; Thio analogues thereof; Urea-aldehyde condensation products
    • C—CHEMISTRY; METALLURGY
    • C07—ORGANIC CHEMISTRY
    • C07C—ACYCLIC OR CARBOCYCLIC COMPOUNDS
    • C07C275/00—Derivatives of urea, i.e. compounds containing any of the groups, the nitrogen atoms not being part of nitro or nitroso groups
    • C07C275/46—Derivatives of urea, i.e. compounds containing any of the groups, the nitrogen atoms not being part of nitro or nitroso groups containing any of the groups, X being a hetero atom, Y being any atom, e.g. acylureas
    • C07C275/48—Y being a hydrogen or a carbon atom
    • C07C275/50—Y being a hydrogen or an acyclic carbon atom

Definitions

  • the present invention relates to new ⁇ -substituted pentylurea derivatives, several processes for their preparation and their use as fungicides.
  • the fungicidal activity of some isonitrosocyanacetamide derivatives is also known (cf. DT-OSS 1 693 052, 2118317, 2 312 956, 2350910, 2 436 654, 2 436 655, 2 603 643 and 2 635 697 and the US Pat. PSS 3 625 987, 3 769 423, 3 919 284, 3 954 992 and 3 957 847. Again, the effectiveness is not reliable at low application rates, and plant damage is seen at normal concentrations.
  • the substances according to the invention can exist as oxime derivatives in two different geometric structures:
  • the compounds according to the invention show a good fungicidal action. They are protective, curative and even eradicative, they also have systemic and / or locosystemic properties. Surprisingly, they show better plant tolerance than the isonitrosocyanacetamide derivatives known from the prior art. Compared to the dithiocarbamidates and the N-trichloromethylthio-tetrahydrophthalimide, they have the advantage of curative and eradicative effects.
  • the compounds according to the invention represent a valuable enrichment of the technology because of the many possibilities of their superior biological application.
  • Another essential aspect of this invention is that new active substances with properties that are useful in practice are made available at a time because of signs of resistance of older active substances there is a pronounced need for new fungicides.
  • R preferably represents R '
  • R' preferably represents alkyl having 1 to 6 carbon atoms; furthermore for such alkyl having 1 to 2 carbon atoms, which is represented by a vinyl group, by an alkylcarbonyl group having 2 to 5 carbon atoms, by alkoxycarbonyl having 2 to 5 carbon atoms, by aminocarbonyl, by N-alkylaminocarbonyl or N-cycloalkylaminocarbonyl up to 7 carbon atoms, by N-phenylaminocarbonyl, which may contain lower alkyl substituents and / or chlorine atoms in the phenyl radical, or for benzyl, which in the aromatic part contains methyl, methoxy, methylenedioxy, nitro or trifluoromethyl groups or Can carry 1 to 2 chlorine atoms as substituents.
  • R is particularly preferred for the following structural elements of R ': methyl, ethyl, methoxycarbonylmethyl, 1- (methoxycarbonyl) ethyl-1, tert-butylcarbonylmethyl and aminocarbonylmethyl.
  • An interesting active ingredient is the compound from the general formula 1 in which R represents methyl.
  • the 1- (5-substituted pentyl) -3- (2-cyano-2-oximinoacetyl) ureas of the formula IV required as starting materials according to process variants b) to c) have hitherto not been known. They are prepared by, for example, w-cyanopentyl isocyanate (cf. Liebigs Ann.Chem. 562, 104 (1949), cyanopentyl carbamic acid chloride (DT-OS 2 626 828 [Le A 17 135]), ⁇ -isocyanato-caproic acid alkyl ester (cf. DT -OS 1 913 273), w-phenoxycarbonylamino-caproic acid (cf.
  • DT-OS 1 720606 further Chem. Abstr. 71, 50689 (1969)) or w-isocyanatocaproic acid chloride (DT-AS 1 222 919) dissolved or suspended in one If ⁇ -phenoxycarbonylamino-caproic acid is used as the starting material, 5-carboxypentylurea is obtained as the ammonium salt. Acidification with a mineral acid produces the free ureidopentylcarboxylic acid.
  • the ⁇ -substituted 1-pentylurea is now reacted with excess cyanoacetic acid in the presence of dicarboxylic anhydride to give 1- (5-substituted pentyl) -3- (2-cyanoacetyl) urea, and toluene can be used as the solvent
  • the urea mentioned is dissolved in water or in mixtures of water with methanol .
  • the oximation is complete after about 2 hours.
  • the reaction mixture is brought to a pH of 1.8 to 3.5, preferably of, by adding further mineral acid at a temperature which is between the freezing point of the solution and about 30 ° C., preferably between +2 and 10 ° C. about 2.
  • the 1- (5-substituted pentyl) -3- (2-cyan-2-oximino-acetyl) urea of the formula IV is either separated by diluting the reaction mixture with water and, after the product has been separated off, washed with water and dried, or the compound is taken up in a solvent such as ethyl acetate, methyl acetate, ethyl formate or methyl propionate, the solution of the reaction product obtained is washed with water, dried with sodium sulfate, for example, and product IV is precipitated by adding petroleum ether, or the solution is evaporated.
  • the urea of formula IV can also be treated with an ester of nitrous acid, e.g. Isoamyl nitrite, on a 1- (5-substituted pentyl) -3- (2-cyanoacetyl) urea can be obtained.
  • an ester of nitrous acid e.g. Isoamyl nitrite
  • the alkylating agents of the formula V required for process b) are mostly known compounds customary in the laboratory. If they have not yet been described, they can be obtained by processes which are known in principle.
  • Examples of starting materials of the formula V are: dimethyl sulfate, diethyl sulfate, 2-bromobutane, 1-iodopentane, 1-bromohexane, 1-bromodecane, allyl chloride, methallyl chloride, 1-chlorobutene-2, propargyl chloride, 1-chloroacetone, 1-bromine -3,3-dimethyl-butanone-2, 2-bromo-4,4-dimethyl-pentanone-3, methyl bromoacetate, sec-butyl chloroacetate, butyl 2-bromo-valerate, ethyl 4-chloro-butyrate, chloroacetamide, N- Methyl-chloroacetamide, N-ethylchloroacet
  • the isocyanates of the formula VII or the carbamic acid halides of the formula VIII required for the reaction according to process d) are likewise known compounds; the carbamic acid halides are prepared by addition of hydrogen halide to the isocyanates of the formula VI.
  • the 2-cyano-2-alkoximinoacetamide is dissolved in an inert water-free solvent such as dioxane, tetrahydrofuran or diisopropyl ether with e.g. Sodium hydride or potassium tert-butoxide was converted into the anion of the amide and then reacted with co-substituted pentyl isocyanate at a moderately elevated temperature.
  • an inert water-free solvent such as dioxane, tetrahydrofuran or diisopropyl ether with e.g. Sodium hydride or potassium tert-butoxide was converted into the anion of the amide and then reacted with co-substituted pentyl isocyanate at a moderately elevated temperature.
  • the reaction product according to the invention is precipitated by adding water or the solution of the reaction product in the organic solvent is washed out and carefully washed in. steams.
  • reaction is preferably carried out in the presence of polar solvents such as dimethyl sulfoxide, dimethylformamide, dimethylacetamide, acetone, methyl ethyl ketone, methylene chloride, chloroform, chlorobenzene, toluene, dioxane, Tetrahydrofuran, acetonitrile, benzonitrile or ethyl acetate.
  • polar solvents such as dimethyl sulfoxide, dimethylformamide, dimethylacetamide, acetone, methyl ethyl ketone, methylene chloride, chloroform, chlorobenzene, toluene, dioxane, Tetrahydrofuran, acetonitrile, benzonitrile or ethyl acetate.
  • All customary hydrogen halide acceptors can be used as acid binders in process b). These include alkali hydroxides, alkali carbonates and other suitable alkali salts. Examples include Sodium carbonate, sodium bicarbonate, borax (disodium tetraborate) and trilithium phosphate. If you work in the presence of water, it can be neutralized by adding sodium hydroxide solution.
  • Organic acid binders can also be used, e.g. tertiary amines. These include triethylamine, dimethylbenzylamine, dimethylaniline, pyridine, picoline, quinoline, ethyldiisopropylamine and ethyldicyclohexylamine.
  • reaction temperatures can be varied within a wide range in process b). Generally one works between about -50 and about + 120 ° C, preferably between -5 and + 80 ° C.
  • the reactions can also be carried out in mixtures of water and a water-miscible organic solvent or in heterogeneous systems consisting of water and a water-immiscible or only partially miscible solvent; the temperature range of the reaction here lies between the freezing point of the water or the solidification point of the aqueous solution and approximately 100 ° C., preferably -5 ° to + 80 ° C.
  • the reaction must be carried out at low temperatures, preferably at -30 ° C. to -10 ° C., and weakly acidified after the reaction has ended.
  • Reaction temperatures and reaction time in process b) are determined by the activity of the starting products of the formula V.
  • a small amount of an iodide is added to the mixtures before the reaction, unless a compound of the formula V with iodine is used as the leaving group.
  • the reaction rate is increased and the risk of the formation of compounds with a nitron structure is reduced (cf. Houben-Weyl, "Methods of Organic Chemistry", Volume 10/4, Stuttgart (1968)).
  • Process d) according to the invention is expediently carried out in a diluent.
  • All inert organic solvents are suitable as such.
  • Dimethyl sulfoxide, dimethylformamide, dimethylacetamide and ethyl acetate are preferably used, and also ketones, such as e.g. Acetone, methyl ethyl ketone and diethyl ketone, also ether, such as e.g. Tetrahydrofuran, chlorinated hydrocarbons, e.g. Methylene chloride and chloroform, nitriles such as e.g. Acetonitrile and benzonitrile and aromatics such as e.g. Toluene and chlorobenzene.
  • ketones such as e.g. Acetone, methyl ethyl ketone and diethyl ketone
  • ether such as e.g. Tetrahydrofuran
  • chlorinated hydrocarbons e.g. Methylene chlor
  • reaction temperatures can be varied within a wide range in process d). Generally one works in the range between -20 and + 120 ° C, preferably between +10 and 70 ° C.
  • the active compounds according to the invention precipitate out in crystalline form or remain dissolved in the organic solvent and can then be separated out after washing out the solution with water by carefully concentrating the solution or by adding a few polar organic solvents, such as carbon tetrachloride, cyclohexane or dibutyl ether.
  • the compounds according to the invention are dissolved in a water-miscible solvent, they can also be filled in by adding water. As far as the special conditions of the work-up processes allow, the solutions of the active substances according to the invention or the still solvent-moist suspensions of the active substances should be made weakly acidic.
  • the compounds according to the invention partly decompose at a higher temperature; in these cases the melting points can only be determined with little accuracy or not at all.
  • the presence of certain structural elements can be seen from the NMR spectra.
  • the IR spectra also show characteristic absorption bands.
  • the active substances according to the invention have a strong fungitoxic effect. They do not damage crops in the concentrations necessary to control fungi. For these reasons, they are suitable for use as crop protection agents for combating fungi. Fungitoxic agents in crop protection are used to control Plasmodiophoromycetes, Oomycetes, Chytridiomycetes, Zygomycetes, Ascomycetes, Basidiomycetes, Deuteromycetes.
  • the active compounds according to the invention can be used against parasitic fungi which attack above-ground parts of plants or attack the plants from the ground, and against seed-borne pathogens. They can therefore also be used for soil and seed treatment.
  • the active ingredients in particular show a high protective and curative activity against phycomycetes. There are also good effects against Mycosphaerella and Rhizoctonia species and against rust fungi.
  • the active compounds according to the invention not only have the good properties of excellent commercial preparations, but also have considerable advantages. These lie primarily in the ability of the substances according to the invention to penetrate the plant. They can be absorbed by the seed surface, by the roots and also by aerial plant organs after external applications. They also have the advantageous ability to act locosystemically, i.e. exert a deep effect in the plant tissue and thereby eliminate fungal pathogens that have already penetrated into the tissue of the host plant.
  • some of the substances according to the invention are also effective as growth regulators for plants.
  • the active compounds according to the invention can be converted into the customary formulations, such as solutions, emulsions, suspensions, powders, pastes and granules. These are made in a known manner, e.g. by mixing the active ingredients with extenders, that is to say liquid solvents, pressurized liquefied gases and / or solid carriers, if appropriate using surface-active agents, that is to say emulsifiers and / or dispersants and / or foam-generating agents. If water is used as an extender, e.g. organic solvents can also be used as auxiliary solvents.
  • aromatics such as xylene, toluene, benzene or alkylnaphthalenes
  • chlorinated aromatics or chlorinated aliphatic hydrocarbons such as chlorobenzenes, chloroethylene or methylene chloride
  • aliphatic hydrocarbons such as cyclohexane or paraffins, e.g.
  • Petroleum fractions oil fractions, alcohols, such as butanol or glycol, and their ethers and esters, ketones, such as acetone, methyl ethyl ketone, methyl isobutyl ketone or cyclohexanone, strongly polar solvents, such as dimethylformamide and dimethyl sulfoxide, and water; liquefied gaseous extenders or carriers mean liquids which are gaseous at normal temperature and pressure, e.g.
  • Aerosol propellants such as dichlorodifluoromethane or trichlorofluoromethane; as solid carriers: natural rock flour, such as kaolin, clay, talc, chalk, quartz, attapulgite, montmorillonite or diatomaceous earth and synthetic rock powder, such as highly disperse silica, aluminum oxide and silicates; as an emulsifier; nonionic and anionic emulsifiers such as polyoxyethylene fatty acid esters, polyoxyethylene fatty alcohol ethers, e.g.
  • the substances according to the invention together with sucrose, dextrose, dextrins, with anhydrous calcium sulfate or calcium sulfate hemihydrate, and with carboxylic acids, e.g. Fumaric acid or 4-hydroxylbenzoic acid, or can also be formulated together with weakly acidic ion exchangers.
  • carboxylic acids e.g. Fumaric acid or 4-hydroxylbenzoic acid
  • the active compounds according to the invention can be present in the formulations in mixtures with other known active compounds, such as fungicides, insecticides, acaricides, nematicides, herbicides, bird repellants, growth agents, plant nutrients and agents which improve soil structure.
  • active compounds such as fungicides, insecticides, acaricides, nematicides, herbicides, bird repellants, growth agents, plant nutrients and agents which improve soil structure.
  • the formulations generally contain between 0.1 and 95 percent by weight of active compound, preferably between 0.5 and 90%.
  • the active compounds can be used as such, in the form of their formulations or in the use forms prepared therefrom by further dilution, such as ready-to-use solutions, emulsions, suspensions, powders, pastes and granules. They are used in the usual way, e.g. by pouring, spraying, spraying, dusting, scattering, dry pickling, wet pickling, wet pickling, slurry pickling or incrusting.
  • the active compound concentrations in the use forms can be varied within a substantial range. They are generally between 0.5 and 0.0005 percent by weight, preferably between 0.2 and 0.001.
  • amounts of active ingredient of 0.01 to 50 g per kilogram of seed preferably 0.5 to 5 g, are generally required.
  • active ingredient For soil treatment, amounts of active ingredient from 1 to 1000 g per cbm of soil, preferably from 10 to 200 g, are required.
  • the amount of active ingredient required for the desired active ingredient concentration in the spray liquid is mixed with the stated amount of solvent and the concentrate is diluted with the stated amount of water which contains the additives mentioned.
  • the spray liquid is used to spray young tomato plants with 2 to 4 leaves until they drip wet.
  • the plants remain in the greenhouse for 24 hours at 20 ° C. and a relative humidity of 70%.
  • the tomato plants are then inoculated with an aqueous spore suspension of Phytophthora infestans.
  • the plants are placed in a humid chamber with 100% humidity and a temperature of 18 to 20 ° C.
  • the infestation of the tomato plants is determined after 5 days.
  • the rating values received are converted to percent infestation. 0% means no infection, 100 96 means that the plants are completely infected.
  • the quantity of active substance required for the desired concentration of active substance in the spray liquid is mixed with the specified quantity of solvent and the concentrate is diluted with the specified quantity of water which contains the additives mentioned.
  • Young tomato plants with 2 to 4 leaves are inoculated with an aqueous spore suspension of Phytophthora infestans. The plants remain 7 hours at 20 ° C and a relative humidity of 100%.
  • the plants are sprayed to runoff point with the spray liquid which has been prepared in the above-mentioned manner and then placed in a humid chamber with 100% atmospheric humidity and a temperature of 18 to 20 ° C.
  • the infestation of the tomato plants is determined after 5 days.
  • the rating values received are converted to percent infestation. 0% means no infection, 100% means that the plants are completely infected.
  • the active ingredient is spread with a mixture of equal parts by weight of talc and kieselguhr to a fine powdery mixture with the desired active ingredient concentration.
  • Wheat seed is contaminated with 5 g of Tilletia caries chlamydospores per kg of seed.
  • For dressing shake the seed with the dressing in a sealed glass bottle.
  • the seeds are exposed to moist clay under a covering layer of a layer of gauze and 2 cm of moderately moist compost soil in the refrigerator at 10 ° C for 10 days under optimal germination conditions for the spores.
  • the germination of the spores on the wheat grains is determined microscopically, each of which contains around 100,000 spores. The fewer spores have sprouted, the more effective the active ingredient will be.
  • the amount of active ingredient required for the desired active ingredient concentration in the spray liquid is mixed with the stated amount of solvent and the concentrate is diluted with the stated amount of water which contains the additives mentioned.
  • the spray liquid is used to spray young tomatoes to the point of dripping wet. After drying, the plants are placed in a greenhouse at a temperature of + 20 ° C and approx. 70% relative humidity.
  • a second crystal fraction (approx. 70 g) can be obtained from the mother liquor by concentration.
  • the product can be recrystallized from water, diethyl ketone or ethyl acetate.
  • the compound can also be prepared from 5-aminocapronitrile and potassium cyanate).
  • the compound is prepared in accordance with production process b) by methylation of the corresponding hydroxy compound, which is described below. Mp 155 ° C.
  • Preliminary product 72 g of 1- (5-aminocarbonylpentyl) -3- (2-cyanoacetyl) urea, 125 ml of water, 125 ml of dioxane, 23.2 g of sodium nitrite and 1 ml of acetic acid are added at 50 ° C. by slowly adding 15% sulfuric acid adjusted to pH 4.5 to 5. The mixture is stirred at 50 ° C. for 2 hours, diluted with 600 ml of water and 600 ml of ethyl acetate, then cooled to 20 ° C. and the reaction mixture is adjusted to a pH of 2. The crystals are separated, washed with water and dried in vacuo. This gives 61.3 g of 1- (5-aminocarbonyl-pentyl) -3- (2-cyano-2-oximino-acetyl) urea, mp. 187-189 0 C.
  • This intermediate is prepared analogously to the intermediate specified in Example 1, starting from 1- (5-aminocarbonylpentyl) urea. Mp 164 ° C.
  • connection is produced by method b). Mp 172 ° C.
  • Preliminary product 48.2 g (0.2 mol) of 1- (5-carboxypentyl) -3- (2-cyanoacetyl) urea, 50 ml of water, 50 ml of dioxane and 15.2 g of sodium nitrite are heated to 50 ° C. So much of a mixture of 13 g of sulfuric acid and 90 g of water is then added dropwise that a pH of 4.6 results. The mixture is kept at 50 ° C. for a further 2 hours, then cooled to approx. 1 ° C., 400 ml of water are added and the pH is reduced to 2.5 by further dropwise addition of dilute sulfuric acid. The crystals are separated off, washed with water and dried at 60 ° C. in vacuo. The yield is 51.7 g of 1- (5-carboxypentyl) -3- (2-cyan-2-oximino-acetyl) urea of mp. 201 ° C.
  • the intermediate product is prepared starting from 1- (5-carboxypentyl) urea in accordance with the information for the intermediate product according to Example 1. Mp 158 ° C.

Landscapes

  • Organic Chemistry (AREA)
  • Chemical & Material Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Dentistry (AREA)
  • Health & Medical Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Plant Pathology (AREA)
  • General Health & Medical Sciences (AREA)
  • Wood Science & Technology (AREA)
  • Zoology (AREA)
  • Environmental Sciences (AREA)
  • Pest Control & Pesticides (AREA)
  • Agronomy & Crop Science (AREA)
  • Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
  • Agricultural Chemicals And Associated Chemicals (AREA)

Claims (5)

1. Dérivés de pentyl-urée w-substitués de formule générale:
Figure imgb0064
dans laquelle
R représente R', CO-R2, CO-NH-R3 ou CO―OR4,
R' représente un alcoyle non substitué ayant 1 à 10 atomes de carbone, en outre un alcoyle substitué ayant 1 à 4 atomes de carbone qui contient comme substituants un groupe vinyle, un groupe alcinyle ayant jusqu'à 4 atomes de carbone, un groupe alcoylcarbonyle ayant 2 à 5 atomes de carbone, un groupe alcoxycarbonyle ayant 2 à 5 atomes de carbone, un groupe alcénoxycarbonyle ou alcinoxy- carbonyle ayant 4 à 5 atomes de carbone, un groupe aminocarbonyle, N-alcoylaminocarbonyle ou N-cycloalcoylaminocarbonyle ayant chaque fois jusqu'à 7 atomes de carbone, ou un groupe N-phényl- aminocarbonyle qui peut contenir sur le radical phényle éventuellement des groupes alcoyle inférieurs et/ou des atomes de chlore comme autres substituants, en outre benzyle qui peut être substitué dans la partie aromatique par des groupes méthyle, méthoxy, méthylènedioxy, nitro, trifluorométhyle, benzoyle, mono- ou dichlorobenzoyle, phényle ou phénoxy ou par 1 à 4 atomes de chlore et
R2 représente un radical hydrocarboné à chaîne droite ou ramifiée, saturé ou non saturé, ayant jusqu'à 8 atomes de carbone, qui peut être substitué par des atomes de chlore ou de brome ou par un groupe cyano, et
R3 représente un radical alcoyle à chaîne droite ou ramifiée ayant jusqu'à 11 atomes de carbone, qui peut être substitué par un groupe cyano ou par un radical carbonyloxyalcoyle ayant jusqu'à 5 atomes de carbone, ou un radical phényle qui peut être substitué par des groupes méthyle, nitro ou trifluorométhyle ou par des atomes de chlore, et
R4 représente un groupe aliphatique saturé ou non saturé ayant jusqu'à 4 atomes de carbone et
Q représente CN, CO-NHZ, COOH ou CO-OR5
RI signifiant un groupe alcoyle ayant 1 à 4 atomes de carbone.
2. Procédé de préparation de dérivés de pentyl-urée w-substitués, caractérisé en ce que
a) on fait réagir une 2-cyano-2-alcoxyimino-acétamide de formule
Figure imgb0065
dans laquelle
R' possède la signification indiquée à la revendication 1,

en présence d'une base forte avec un pentyl-isocyanate ω-substitué de formule
Figure imgb0066
dans laquelle
Q possède la signification indiquée dans la revendication 1, ou
b) on fait réagir la 1-(pentyl 5-substitué)-3-(2-cyano-2-oximino-acétyl)-urée de formule:
Figure imgb0067
dans laquelle
Q possède la signification indiquée à la revendication 1,

en présence d'un agent fixateur d'acide ou un sel alcalin, alcalino-terreux ou ammonique de l'urée de formule IV avec un agent d'alcoylation de formule:
Figure imgb0068
dans laquelle
R' possède la signification indiquée à la revendication 1 et
X représente un "groupe clivable" tel que chlore, brome, iode, alcoxy, alcoyl- ou arylsulfonyle et en outre représente le groupe (CH3O―)2PO―O lorsque R' représente un méthyle, ou
c) on fait réagir l'urée de formule (IV) avec un dérivé acide de formule:
Figure imgb0069
dans laquelle
R2 possède la signification indiquée à la revendication 1 et
T représente du chlore, du brome, de l'iode ou le groupe R2―CO―O, ou
d) on fait réagir l'urée de formule IV avec un isocyanate de formule:
Figure imgb0070
ou avec un halogénure de carbamyle de formule:
Figure imgb0071
formules dans lesquelles
R3 possède la signification indiquée à la revendication 1 et
Y représente du chlore, du brome ou de l'iode, ou
e) on fait réagir l'urée de formule IV avec un ester d'acide carbonique de formule:
Figure imgb0072
dans laquelle
R4 possède la signification indiquée à la revendication 1 et
Z représente du chlore ou le radical R4―O―CO―O et en ce qu'en outre on obtient éventuellement les composés de formule I où R représente R' et Q le groupe CO―OR5 quand on fait réagir selon une autre variante opératoire

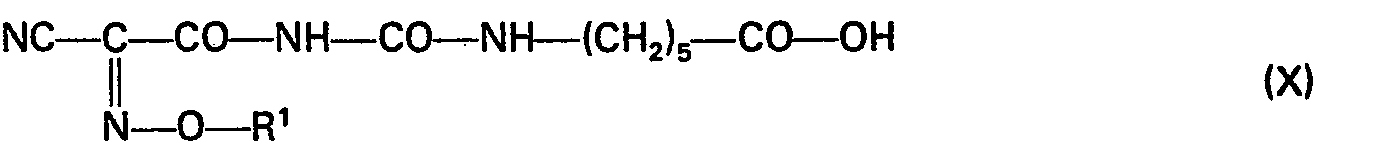

f) un acide carboxylique synthétisé salon le procédé b), de formule:
Figure imgb0073
dans laquelle
R' possède la signification indiquée à la revendication 1,

en presénce d'un agent fixateur d'acide, ou d'un ion alcalin, alcalino-terreux ou ammonium, avec un agent d'alcoylation de formule:
Figure imgb0074
dans laquelle
X possède la signification indiquée plus haut et R5 celle indiquée à la revendication 1.
3. Agents fongicides, caractérisés par une teneur en au moins un dérivé de pentyl-urée ω-substitué selon la revendication 1.
4. Utilisation de dérivés de pentyl-urée w-substitués selon la revendication 1 pour combattre les champignons.
5. Procédé de fabrication d'agents fongicides, caractérisé en ce qu'on mélange des dérivés de pentyl-urée ω-substitués selon la revendication 1 avec des agents de dilution et/ou des agents tensionactifs.
EP78100035A 1977-06-04 1978-06-01 Pentyl-urées substituées en omega, leur procédé de préparation et leur application comme fongicides Expired EP0000023B1 (fr)

Applications Claiming Priority (4)

Application Number Priority Date Filing Date Title
DE2725315 1977-06-04
DE19772725315 DE2725315A1 (de) 1977-06-04 1977-06-04 Neue cyanpentyl-harnstoff-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE19772758108 DE2758108A1 (de) 1977-12-24 1977-12-24 Neue omega-substituierte pentyl-harnstoff-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE2758108 1977-12-24

Publications (2)

Publication Number Publication Date
EP0000023A1 EP0000023A1 (fr) 1978-12-20
EP0000023B1 true EP0000023B1 (fr) 1980-07-23

Family

ID=25772107

Family Applications (1)

Application Number Title Priority Date Filing Date
EP78100035A Expired EP0000023B1 (fr) 1977-06-04 1978-06-01 Pentyl-urées substituées en omega, leur procédé de préparation et leur application comme fongicides

Country Status (10)

Country Link
US (1) US4188401A (fr)
EP (1) EP0000023B1 (fr)
JP (1) JPS543011A (fr)
BR (1) BR7803554A (fr)
DD (1) DD137319A5 (fr)
DE (1) DE2860036D1 (fr)
DK (1) DK248478A (fr)
IL (1) IL54839A0 (fr)
IT (1) IT7824170A0 (fr)
PT (1) PT68101A (fr)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US10918107B2 (en) 2015-05-20 2021-02-16 Conopco, Inc. Encapsulated lactams

Families Citing this family (12)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE3041998A1 (de) * 1980-11-07 1982-06-09 Bayer Ag, 5090 Leverkusen Pyrazolsubstituierte oximino-cyan-acetamid-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE3206235A1 (de) * 1982-02-20 1983-09-01 Bayer Ag, 5090 Leverkusen Substituierte oximinoacetanilide, verfahren zu ihrer herstellung sowie ihre verwendung als schaedlingsbekaempfungsmittel
DE3222961A1 (de) * 1982-06-19 1983-12-22 Bayer Ag, 5090 Leverkusen Azolsubstituierte oximino-cyan-acetamid-derivate
DE3602243A1 (de) * 1985-06-13 1986-12-18 Bayer Ag, 5090 Leverkusen E-isomere von n(pfeil hoch)(alpha)(pfeil hoch)-(2-cyan-2-alkoximino-acetyl)-aminosaeurederivaten und -peptiden
DE3625460A1 (de) * 1986-07-28 1988-02-04 Bayer Ag N-(2-cyan-2-oximinoacetyl)-aminonitrile
DE3727728A1 (de) * 1987-08-20 1989-03-02 Bayer Ag 2-cyano-2-oximino-acetamide
DE3728277A1 (de) * 1987-08-25 1989-03-09 Bayer Ag N,n'-diacylaminale
US5177214A (en) * 1987-08-25 1993-01-05 Bayer Aktiengesellschaft Aminal and isocyanate intermediates for fundicidal N,N'-diacylaminals
DE102015210500B4 (de) * 2015-06-09 2021-07-01 Jost-Werke Deutschland Gmbh Luftführungselement zum Reduzieren des Luftwiderstandes eines Lastfahrzeuges
KR102186732B1 (ko) 2019-07-17 2020-12-04 한국생산기술연구원 전자 수송 재료 및 이를 이용한 유기 광전 소자
US11930701B2 (en) 2019-08-29 2024-03-12 Semiconductor Energy Laboratory Co., Ltd. Compound, light-emitting device, light-emitting apparatus, electronic device, and lighting device
JP7857729B2 (ja) 2019-12-27 2026-05-13 株式会社半導体エネルギー研究所 化合物、発光デバイス、発光装置、電子機器、および照明装置

Family Cites Families (19)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE1693052U (de) 1954-12-11 1955-02-10 Felten & Guilleaume Carlswerk Selbsttragendes luftkabel.
CH484604A (de) * 1966-11-10 1970-01-31 Ciba Geigy Schädlingsbekämpfungsmittel
CH496395A (de) * 1968-07-24 1970-09-30 Agripat Sa Schädlingsbekämpfungsmittel
US3621049A (en) * 1969-04-01 1971-11-16 American Cyanamid Co Cyanoalkylaldoxime carbamates
US3694482A (en) 1970-04-15 1972-09-26 Exxon Research Engineering Co Malononitrile oxime derivatives
ZA731111B (en) 1972-03-15 1974-03-27 Du Pont 2-cyano-2-hydroxyiminoacetamides and acetates as plant disease control agents
IE38344B1 (en) 1972-10-13 1978-02-15 Ciba Geigy Ag Cyano-hydroxyimino-acetamide derivatives as plant growth regulants and fungicides
US3979518A (en) * 1975-09-11 1976-09-07 E. I. Du Pont De Nemours And Company Fungicidal alkoxy substituted 2-cyanoacetamide derivatives
US3984568A (en) * 1975-09-11 1976-10-05 E. I. Du Pont De Nemours And Company Fungicidal cyclopropyl substituted 2-cyanoacetamide derivatives
US3954992A (en) * 1973-07-02 1976-05-04 E. I. Du Pont De Nemours And Company 2-Cyano-2-hydroxyiminoacetamides as plant disease control agents
DE2436655A1 (de) 1973-08-02 1975-02-20 Ciba Geigy Ag (carbamoyl-oximino)-cyanacetyl-harnstoffe
DE2436654A1 (de) 1973-08-02 1975-02-20 Ciba Geigy Ag Oximinocyanacetamid-derivate
US3957847A (en) * 1974-03-21 1976-05-18 E. I. Du Pont De Nemours And Company 2-cyano-2-hydroxyiminoacetamides as plant disease control agents
US3919284A (en) * 1974-06-13 1975-11-11 Du Pont Process for making 2-cyano-2-hydroxyiminoacetamide salts
US4053612A (en) * 1975-01-30 1977-10-11 E. I. Du Pont De Nemours And Company Stabilized formulations of 2-alkoxyimino-n-carbamoyl-2-cyanoacetamides
ZA757990B (en) 1975-01-30 1976-12-29 Du Pont Stabilized formulations of 2-alkoxyiminon-carbamoyl-2-cyanoacetamides
DK333276A (da) 1975-09-11 1977-03-12 Du Pont Fungicide, substituerede 2-cyanoacet-amidderivater
DE2623847A1 (de) 1976-05-28 1977-12-08 Bayer Ag Neue oximaether, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE2626828A1 (de) * 1976-06-15 1977-12-22 Bayer Ag Neue carbamidsaeureoximester, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US10918107B2 (en) 2015-05-20 2021-02-16 Conopco, Inc. Encapsulated lactams

Also Published As

Publication number Publication date
PT68101A (en) 1978-06-01
DE2860036D1 (en) 1980-11-13
IL54839A0 (en) 1978-08-31
DD137319A5 (de) 1979-08-29
BR7803554A (pt) 1979-02-13
DK248478A (da) 1978-12-05
JPS543011A (en) 1979-01-11
EP0000023A1 (fr) 1978-12-20
US4188401A (en) 1980-02-12
IT7824170A0 (it) 1978-06-02

Similar Documents

Publication Publication Date Title
EP0000023A1 (fr) Pentyl-urées substituées en omega, leur procédé de préparation et leur application comme fongicides
DE2712630A1 (de) 1,3,4-thiadiazol-2-yl-harnstoffe, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
EP0037971B1 (fr) Cyanoguanidines trisubstituées, procédé pour leur préparation et leur utilisation comme fongicides
EP0010673B1 (fr) N-Propargyl-anilines substituées, procédé pour leur préparation et leur utilisation comme fongicides
EP0072970A1 (fr) Anilinomethylène-oximes substituées, leur méthode de préparation et leur emploi comme herbicide
EP0002679B1 (fr) 1-Halogéno-1-propyn-3-ols, leur procédé de préparation et leur emploi comme fongicides
EP0144895B1 (fr) Thiolan-2,4-dion-3-carboxamides
DE2626828A1 (de) Neue carbamidsaeureoximester, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
EP0154273B1 (fr) Compositions fongicides
DE3041998A1 (de) Pyrazolsubstituierte oximino-cyan-acetamid-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
CH628025A5 (de) Verfahren zur herstellung von neuen oximaethern des isonitrosocyanacetamids.
EP0046931A2 (fr) N-oxiamides, procédé de préparation et utilisation comme fongicides
EP0097280B1 (fr) Dérivés azolyles substitués d&#39;oximino-cyano-acetamides
DE3625460A1 (de) N-(2-cyan-2-oximinoacetyl)-aminonitrile
EP0087048B1 (fr) Oximinoacétamilides substituées, leur méthode de préparation ainsi que leur utilisation comme pesticide
DE2758108A1 (de) Neue omega-substituierte pentyl-harnstoff-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
EP0066771B1 (fr) 1-Iodo-1-propyn-3-ols, procédé pour leur préparation et leur utilisation comme agent de protection des plantes
EP0003975B1 (fr) Diamides de l&#39;acide dichloromaléique, procédé pour les préparer et leur utilisation comme fongicides
DE2725315A1 (de) Neue cyanpentyl-harnstoff-derivate, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE2657145A1 (de) Neue oximaether, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
EP0018509A1 (fr) N-Allényl-acétanilides, procédé pour leur préparation ainsi que leur utilisation comme fongicides
DE2623847A1 (de) Neue oximaether, verfahren zu ihrer herstellung sowie ihre verwendung als fungizide
DE2529648A1 (de) Carbamidsaeureester der gallussaeure, verfahren zu ihrer herstellung und ihre verwendung als fungizide
DD147611A5 (de) Fungizide mittel
EP0043488A1 (fr) Dérivés de l&#39;acide tétrachlorophtalamique, procédé pour leur préparation et leur application comme bactéricides

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): BE CH DE FR GB NL SE

17P Request for examination filed
GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): BE CH DE FR GB NL SE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: NL

Effective date: 19800723

Ref country code: BE

Effective date: 19800723

REF Corresponds to:

Ref document number: 2860036

Country of ref document: DE

Date of ref document: 19801113

NLV1 Nl: lapsed or annulled due to failure to fulfill the requirements of art. 29p and 29m of the patents act
PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 19810526

Year of fee payment: 4

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: DE

Effective date: 19820501

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: FR

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 19820526

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: CH

Effective date: 19820630

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: SE

Payment date: 19820630

Year of fee payment: 5

REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

GBPC Gb: european patent ceased through non-payment of renewal fee
PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SE

Effective date: 19830602

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: GB

Effective date: 19881117

EUG Se: european patent has lapsed

Ref document number: 78100035.1

Effective date: 19850610

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT
