Abstract

Device for receiving dog excrement, from a floor surface with a flat foldable bag (1), the opposite and mutually closable opening edges (2,3) are stiffened by means of reinforcement strips and with a holder (10), which is from the outside at the opening edge of the bag (1) can be attached and moved to pick up the waste by hand. The holder (10) is designed like pliers and has two mutually movable, outwardly curved legs (11, 12) encompassing a bag (1), the free ends of which can be attached to the bag (1) and the bag (1) has on the outer sides of the two stiffened opening edges (2, 3) gripping loops (4, 5) into which gripping mandrels (13, 14; 13 ', 14') arranged at the free ends of the legs (11, 12) can be used, so that the opening of the bag (1) can be opened and closed by opening and closing the tong-like holder (10).

In order to hold dog excrement covered with a film, the pliers-like holder (21) has gripping strips (22, 23) at the free ends of the legs (25, 26), which are oriented essentially at right angles to the pivoting plane and which are closed when the legs (25, 26) are closed issue.

Description

The invention is based on a device for holding waste, in particular dog droppings, on a bottom surface with a bag which can be folded flat, the opposite and closable opening edges of which are stiffened by means of reinforcement strips, and with a holder which can be attached from the outside to the opening edge of the bag and is movable by hand to pick up the waste.

Devices of this type are known from European publication 0 176 814. In the known device, the holder engages the upper opening edge of the bag by means of a clamping device which is arranged at the lower end of the holder. A projection, a rag or a fold, which is arranged in the middle of the upper edge of the opening on the outside, is used to grasp the bag by means of the clamping device.

With the help of this and other known devices, dog feces can only be taken up with the help of an additional slide.

The present invention has for its object to provide a device that is easy to handle, that can be manufactured as simply and inexpensively as possible and that enables quick and easy removal of faeces.

This object is achieved in that the holder is designed like pliers and has two mutually movable legs encompassing the bag, the free ends of which can be attached to the bag and the bag has gripping loops on the outside of the two stiffened opening edges, into which the free End of the legs arranged gripping mandrels can be used so that the opening of the bag can be opened and closed by opening and closing the pliers-like holder.

With the aid of this device, the opening of the bag is placed over the waste to be picked up and the waste is taken up into the bag by closing the opening edges. This bag filled with waste can then be removed from the holder and placed in a tightly closed container, e.g. a paper bag with self-adhesive closure.

Both the bag that can be plugged onto the holder and the second, tightly sealable bag can be made from moisture-proof paper or from a rotten plastic.

The holder with the two pliers-like legs and their gripping pins can be made of plastic, pressed cardboard or metal. The two mutually movable and outwardly curved legs of the holder can be connected to one another in an articulated manner at one end, but it is also possible to produce the two mutually movable legs of the holder in one piece from a spring steel wire.

Because the bag with the stiffened edges must be thrown away after each use, a stock of such special bags is necessary when using this device.

The further invention is based on the object of avoiding the use of such special bags and of creating a reusable, easy-to-transport and clean-to-use device which enables inexpensive and hygienic quick removal of faeces. This preferred embodiment of the invention relates to a device for receiving dog excrement which has been covered with a film for this purpose.

This object is achieved, starting from the pliers-like holder, according to the invention in that gripping strips are arranged at right angles to the pivoting plane at the free ends of the pivotable legs of the pliers-like holder and rest against one another when the legs are closed.

With the help of this device, every dog owner can eliminate his dog's feces in the most economical way. Film of suitable size for covering the dog droppings is nowadays available in any quantity from used shopping bags or similar packaging, but also cut plastic blown films that can be added when the device is sold are extremely inexpensive. The device according to the invention enables hygienic recording. By swiveling the legs of the bracket apart, the gripping bars are spaced apart and can be placed on the cover film on both sides of the droppings; when the legs of the bracket are closed, the gripping bars are brought into contact with each other, thereby lifting the manure from the floor and allowing transportation to a waste container, where the device is emptied by spreading the legs apart. The film covering the dog droppings is taken away by the gripping strips when the device is closed and also closed under the droppings, so that the device is not soiled and can be packaged and emptied again after being emptied.

For transport, it is advantageous if the gripping strips can be removed from the legs of the holder. In another advantageous embodiment, the gripping strips are rotatably mounted on the free ends of the legs and can be folded into the pivoting plane of the pliers-type holder.

Further features of the invention emerge from the patent claims.

• Fig. 1 eine Seitenansicht einer in Öffnungsstellung befindlichen Tüte mit Halterung;
• Fig. 2 eine Seitenansicht des unteren Teiles dieser Vorrichtung in Schließstellung;
• Fig. 3 eine Draufsicht auf die in Fig. 1 dargestellte Vorrichtung;
• Fig. 4 eine Teilansicht eines Schenkels mit Greifdorn;
• Fig. 5 eine Draufsicht auf eine abgewandelte Halterung mit dazuge­höriger Tüte;
• Fig. 6 eine Seitenansicht des unteren Teiles der in Fig. 5 darge­stellten Vorrichtung;
• Fig. 7 eine Seitenansicht der geöffneten erfindungsgemäßen Vorrich­tung mit Greifleisten;
• Fig. 8 eine Teilansicht der Vorrichtung nach Fig. 7 in geschlossenem Zustand;
• Fig. 9 die geöffnete Vorrichtung in Ansicht von oben;
• Fig. 10 eine Ausbildungsvariante der Greifleisten;
• Fig. 11 und 12 eine andere Ausführungsform der Befestigung der Greif­leisten in zwei Ansichten.

In the following description, four exemplary embodiments of the invention are explained in more detail with reference to the drawings. The drawings show in

• Figure 1 is a side view of a bag with holder in the open position.
• Figure 2 is a side view of the lower part of this device in the closed position.
• Fig. 3 is a plan view of the device shown in Fig. 1;
• 4 shows a partial view of a leg with a gripping mandrel;
• Figure 5 is a plan view of a modified holder with associated bag.
• Fig. 6 is a side view of the lower part of the device shown in Fig. 5;

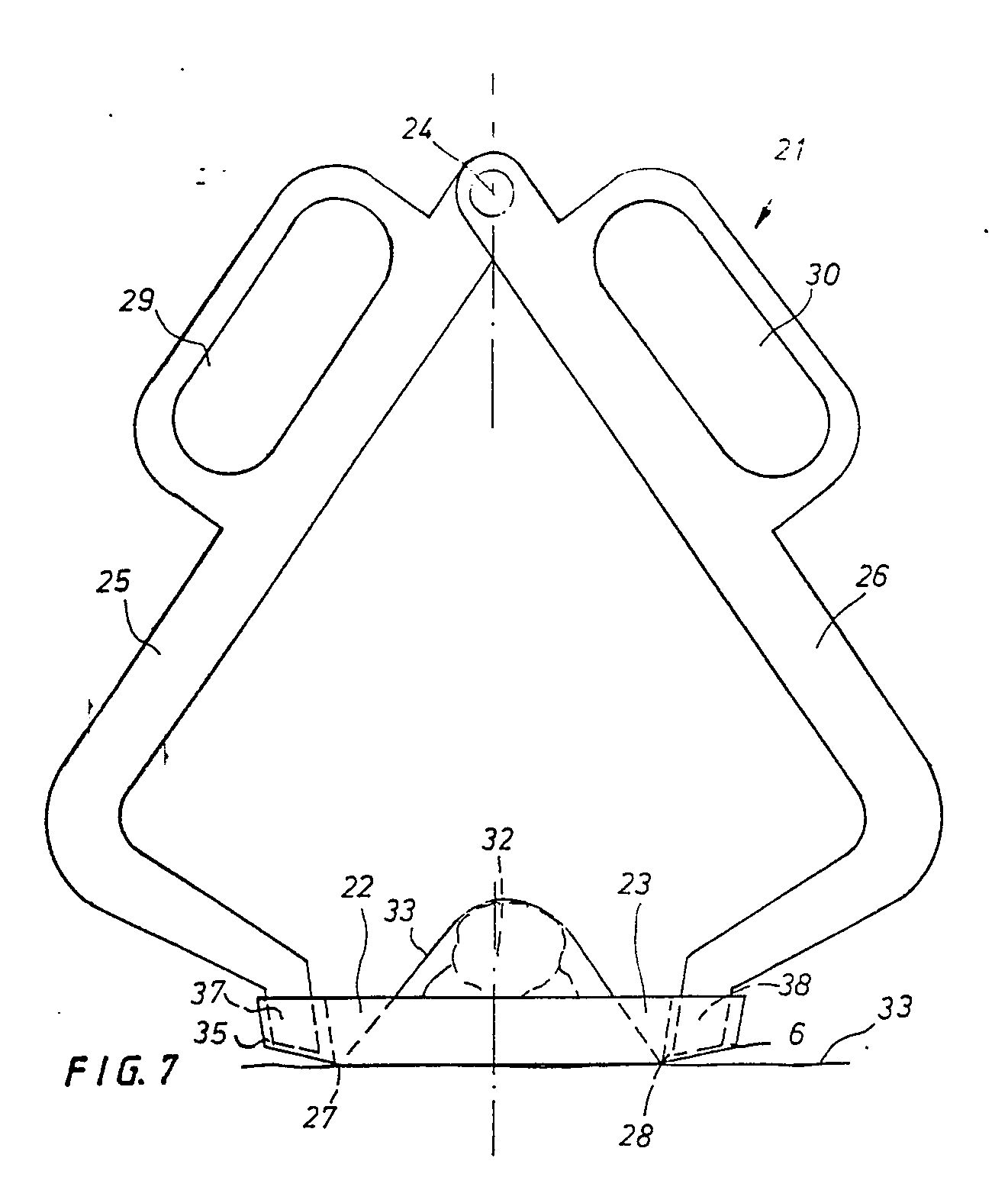

• 7 shows a side view of the opened device according to the invention with gripping strips;
• FIG. 8 is a partial view of the device according to FIG. 7 in the closed state;
• 9 shows the opened device in a view from above;
• 10 shows a variant of the gripping bars;
• 11 and 12 another embodiment of the attachment of the gripping bars in two views.

1 to 4 is composed of a bag 1 made of moisture-proof paper, the opposite and closable opening edges 2 and 3 of which are stiffened by means of reinforcement strips, for example made of cardboard, and of a holder 10 which is designed like pliers and has two mutually movable, outwardly curved legs 11 and 12 encompassing the bag 1, the free ends of which are designed as gripping pins 13 and 14. In Fig. 1 the bag 1 and the holder 10 is shown in the open position. Fig. 2 shows the lower part of the bag 1 and the legs 11 and 12 in the closed position. The legs 11 and 12 are provided with gripping holes 15 and 16 to facilitate opening and closing of the legs 11 and 12. The gripping pins 13 and 14 are inserted in gripping loops 4 and 5, which are arranged in the middle of the two opening edges 2 and 3 on their outer sides. These gripping loops 4 and 5 are open towards the bottom 6 of the bag, that is to say upwards, so that the gripping pins 13 and 14 of the holder 10 can be inserted from the bottom 6 of the bag into gripping loops 4 and 5. By spreading the legs 11 and 12, the opening of the bag 1 is opened so that the bag 1 can be put over the waste to be picked up. By pressing the legs 11 and 12, the opening edges 2 and 3 close, so that the waste is taken up in the bag. The two mutually movable legs 11 and 12 of the bracket 10 can be made of pressed cardboard or Be made of plastic or sheet metal and be articulated to one another by means of a rivet 17.

4, the gripping pins 13 and 14 taper in the insertion direction, so that these gripping pins can be inserted into the gripping loops 4 and 5 quickly and without any problems.

1 and 2 show, the gripping pins 13 and 14 are arranged so that they are inclined at an angle of 30 to 60 ° to each other in the closed position of the legs 11 and 12. This tendency ensures that the waste to be picked up is pressed up into the bag when the opening edges are closed.

In the embodiment of FIGS. 5 and 6, the gripping loops 4 'and 5' are arranged along the opening edges and the gripping pins 13, 14 run parallel to each other and at right angles to the legs 11 ', 12' of the bracket. The two legs 11 'and 12' of the bracket are integrally connected and are formed by a resilient wire. 5 shows, in extension of the gripping pins 13 'and 14' counterholders 18, 19, which come into contact with one another in the closed position of the legs 11 'and 12' and press the gripping pins 13 'and 14' in the parallel position.

After taking up the waste or dog waste with the help of this device, the bag 1 or 1 'is stripped from the gripping thorns and placed in a sealable bag made of moisture-proof paper or rotten plastic film.

In FIGS. 7 to 9, the device according to the invention is composed of a pliers-like holder 21 and gripping strips 22 and 23. The holder 21 consists of two legs 25, 26 which are curved outwards and can be pivoted relative to one another about an axis 24. At the free ends of these legs 25 and 26, the gripping bars 22 and 23 are arranged essentially at right angles to the pivoting plane. As shown in FIG. 8, after the legs 25, 26 have been closed, the gripping strips 22 and 23 lie against one another with their edges 27 and 28 removed from the axis 24. Around to facilitate the pivoting of the legs 25, 26, these can be provided with engagement openings 29, 30 in a known manner. It is advantageous if the two gripping strips 22, 23 are made of elastic material, for example, are made as injection molded parts from cheap plastic, and are connected at their ends in an articulated manner such that they temporarily close the pliers-like holder 21 by spreading the legs 25, 26 an elongated receiving opening 31 are deformable, as shown in Fig. 9.

To accommodate dog excrement 32, this is first covered with a film 33 which protects the gripping strips 22 and 23 against soiling when the receiving opening 31 is fitted, as shown in FIGS. 7 and 9. By closing the legs 25 and 26 of the pliers-like holder 21, the gripping strips 22, 23 are moved towards one another until their edges 27 and 28 abut one another. The film 33 is taken along and pushed under the manure 32, which is so wrapped in film, taken up and turned into a waste bin or the like. can be transported.

Lifting and enveloping the dog droppings is facilitated if the gripping strips 22 and 23, as shown in FIG. 8, are inclined in the closed position such that their opposite surfaces enclose an angle α of 40 to 60 °. In another embodiment, for more convenient lifting, as shown in FIG. 10, at least one of the gripping strips 22, 23, at least in its central region on both sides of the leg 25 or 26 holding it, can have an edge directed towards the opposite gripping strip and projecting at an angle of at least 90 ° 34 have, which engages under the edge of the opposite gripping bar in the closed position.

In order to be able to accommodate the device in a bag, bag or the like in a space-saving manner before and after use, the gripping strips 22, 23 can be removed from the legs 25, 26 of the tong-like holder. They have receiving pockets 35, 36 which are arranged in the middle and protrude outwards, into which the appropriately designed insertion ends 37, 38 of the legs 25, 26 can be inserted in a slightly clamping manner for assembly.

The insertion ends 37, 38 of the legs 25, 26 have an oblique position and the undersides of the receiving pockets 15, 16 have a bevel which corresponds to half the opening angle of 40 to 60 ° between the opposite surfaces of the gripping strips 22, 23.

In another embodiment, the space-saving packaging is made possible by a pin connection, as shown in FIGS. 11 and 12. A hinge eye 40 provided at the end of the leg 25 or 26 is pushed over a pin 39 arranged in the middle of the gripping bar 22 or 23. With this connection, the gripping strips 22, 23 can be folded into the pivoting plane of the pliers-like holder 21 by pivoting, or the gripping strips can be removed from the holder, similarly to the plug-in connection described above.

The articulated connection of the ends of the elastic gripping strips 22, 23 to form the elongated receiving opening 29 when the pliers-like holder 21 is spread is most easily achieved by pushed-over elastic hose pieces 41, 42.

However, the gripping strips can also be injection molded in one piece from plastic and connected to one another at their ends by molded thin walls.

It is also possible to use rigid gripping strips which are not connected at their ends and which are moved away from one another and towards one another when the dog droppings are picked up in parallel. In this case, an inclination of the gripping strips is such that their opposite surfaces form an angle of 40 to 60 ° when the device is closed.

Reference symbol list

• 1.1 ′ bag
• 2.2 ′ opening edge
• 3.3 ′ opening edge
• 4.4 'grip loop
• 5.5 'grip loop
• 6 bottom
• 7 mounting bar
• 10 bracket
• 11.11 ′ leg
• 12.12 ′ leg
• 13,13 ′ gripping mandrel
• 14,14 ′ gripping mandrel
• 15 gripping hole
• 16 gripping hole
• 17 rivet
• 18 counterholders
• 19 counterholders
• 21 pliers-like holder
• 22 gripping bar
• 23 gripping bar
• 24 axis
• 25 legs
• 26 legs
• 27 edge of the gripping strip 22
• 28 edge of the gripping bar 23
• 29 engagement opening
• 30 engagement opening
• 31 receiving opening
• 32 dog droppings
• 33 slide
• 34 edge
• 35 storage bag
• 36 storage bag
• 37 male end
• 38 insertion ends
• 39 cones
• 40 joint eye
• 41 piece of hose
• 42 hose piece

Claims (12)

1. Device for receiving waste, in particular dog droppings, from a floor surface with a flat foldable bag (1), the opposite and mutually closable opening edges (2,3) are stiffened by means of reinforcement strips and with a holder (10) from the outside forth at the opening edge of the bag (1) and can be moved by hand to pick up the waste,
characterized in that the holder (10) is designed like pliers and has two mutually movable, outwardly curved legs (11, 12) encompassing a bag (1), the free ends of which can be attached to the bag (1) and the bag ( 1) on the outer sides of the two stiffened opening edges (2, 3) has gripping loops (4, 5) into which gripping mandrels (13, 14; 13 ', 14') arranged at the free ends of the legs (11, 12) can be used , so that the opening of the bag (1) can be opened and closed by opening and closing the tong-like holder (10). 2. Device according to claim 1, characterized in that the gripping loops (4, 5) are arranged approximately in the middle of the two opening edges (2, 3) and are open towards the bag bottom (6), and the gripping mandrels (13, 14) are in lie on the plane of the legs (11, 12) and taper in the direction of insertion. 4. Apparatus according to claim 3, characterized in that in extension of the gripping mandrels (13 ', 14') beyond the legs (11 ', 12') counterholders (18, 19) are arranged, which in the closed position of the legs (11 ', 12 ') come together to the system. 5. Device for receiving dog excrement covered with a film, characterized by a tong-like holder (21), consisting of two legs (25, 26) that can be pivoted against one another about an axis (24), and on the free ends of the legs ( 25, 26) gripping bars (22, 23) directed essentially at right angles to the swivel plane, which rest against one another when the legs (25, 26) are closed. 6. The device according to claim 5, characterized in that the closed gripping bars (25,26) parallel gripping strips (22,23) with their from the axis (24) distant edges (27,28) lie against each other and are inclined so that their form an angle (α) of 40 - 60 ° on opposite surfaces. 7. The device according to claim 5 or 6, characterized in that at least one of the gripping bars (22,23) at least in its central region on both sides of the leg holding it (25 or 26) one facing the opposite gripping bar, at an angle (β) of has at least 90 ° projecting edge (34) which, in the closed position, engages under the edge of the opposite gripping bar. 8. Device according to one of claims 5 to 7, characterized in that the gripping strips (22,23) from the legs (25,26) of the pliers-like holder (21) are removable and arranged in the middle, outwardly projecting receiving pockets (35 , 36), in which the correspondingly designed insertion ends (37, 38) of the legs (25, 26) can be inserted in a slightly clamping manner for assembly. 9. The device according to claim 8, characterized in that the insertion ends (37,38) of the legs (25,26) have an inclined position and the underside of the receiving pockets (35,36) have a bevel which is half the opening angle (α) of 40 correspond to 60 ° between the opposite surfaces of the gripping strips (22, 23). 10. Device according to one of claims 5 to 9, characterized in that the gripping strips (22, 23) consist of elastic material and are articulated at their ends in such a way that they are temporarily elongated by spreading the pliers-like holder (21) Receiving opening (31) are deformable. 11. The device according to one of claims 5 to 10, characterized in that the gripping strips (22, 23) are injection-molded in one piece from plastic and are connected to one another at their ends by molded thin walls. 12. Device according to one of claims 5 to 7 and 10 and 11, characterized in that the gripping strips (22,23) at the free ends of the legs (25,26) are rotatably mounted such that they are in the pivoting plane of the pliers-like holder (21) can be folded. 13. The apparatus according to claim 12, characterized in that on the outside of the gripping strips (22, 23) at right angles to the longitudinal extent of the gripping strips, pins (39) are arranged, which are located at the lower ends of the legs (25, 26), articulated eyes (40 ) can be inserted.
