Verfahren zum Aufbereiten von Bodenaushub Download PDF

Info

Publication number
EP0959184A3
EP0959184A3 EP99106406A EP99106406A EP0959184A3 EP 0959184 A3 EP0959184 A3 EP 0959184A3 EP 99106406 A EP99106406 A EP 99106406A EP 99106406 A EP99106406 A EP 99106406A EP 0959184 A3 EP0959184 A3 EP 0959184A3
Authority
EP
European Patent Office
Prior art keywords
excavated material
preparing
excavator
loader
silo
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP99106406A
Other languages
English (en)
French (fr)
Other versions
EP0959184B1 (de
EP0959184A2 (de
Inventor
Rainer Schrode
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Rainer Schrode GmbH
Original Assignee
Rainer Schrode GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Rainer Schrode GmbH filed Critical Rainer Schrode GmbH
Publication of EP0959184A2 publication Critical patent/EP0959184A2/de
Publication of EP0959184A3 publication Critical patent/EP0959184A3/de
Application granted granted Critical
Publication of EP0959184B1 publication Critical patent/EP0959184B1/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E02—HYDRAULIC ENGINEERING; FOUNDATIONS; SOIL SHIFTING
    • E02F—DREDGING; SOIL-SHIFTING
    • E02F5/00—Dredgers or soil-shifting machines for special purposes
    • E—FIXED CONSTRUCTIONS
    • E02—HYDRAULIC ENGINEERING; FOUNDATIONS; SOIL SHIFTING
    • E02F—DREDGING; SOIL-SHIFTING
    • E02F3/00—Dredgers; Soil-shifting machines
    • E02F3/04—Dredgers; Soil-shifting machines mechanically-driven
    • E02F3/96—Dredgers; Soil-shifting machines mechanically-driven with arrangements for alternate or simultaneous use of different digging elements
    • E02F3/963—Arrangements on backhoes for alternate use of different tools
    • E—FIXED CONSTRUCTIONS
    • E02—HYDRAULIC ENGINEERING; FOUNDATIONS; SOIL SHIFTING
    • E02F—DREDGING; SOIL-SHIFTING
    • E02F5/00—Dredgers or soil-shifting machines for special purposes
    • E02F5/22—Dredgers or soil-shifting machines for special purposes for making embankments; for back-filling
    • E02F5/223—Dredgers or soil-shifting machines for special purposes for making embankments; for back-filling for back-filling

Landscapes

  • Engineering & Computer Science (AREA)
  • Mining & Mineral Resources (AREA)
  • Mechanical Engineering (AREA)
  • Civil Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Structural Engineering (AREA)
  • Preparation Of Clay, And Manufacture Of Mixtures Containing Clay Or Cement (AREA)
  • Consolidation Of Soil By Introduction Of Solidifying Substances Into Soil (AREA)
  • Excavating Of Shafts Or Tunnels (AREA)
  • Earth Drilling (AREA)

Abstract

Ein Verfahren zum Aufbereiten von Bodenaushub unter Beimischung von Zuschlagstoffen, mit den Schritten:
  • a) ein transportables mit einem Zuschlagstoff oder Zuschlagstoffgemisch gefülltes Silo mit einem Bagger oder einem Lader aufnehmen,
  • b) das gefüllte Silo über Aushubmaterial halten und den Zuschlagstoff oder das Zuschlagstoffgemisch ausstreuen,
  • c) das Silo vom Bagger oder Lader abbauen und einen Schaufelmischer, für dessen Funktion vorzugsweise ein Schaufelseparator verwendet wird, anbauen bzw. einen zweiten Bagger oder Lader mit Schaufelmischer bereitstellen,
  • d) das Aushubmaterial mit dem Schaufelmischer aufnehmen, mischen und an einer gewünschten Stelle, beispielsweise in einen Rohrgraben, einbringen.
    • Figure 00000001

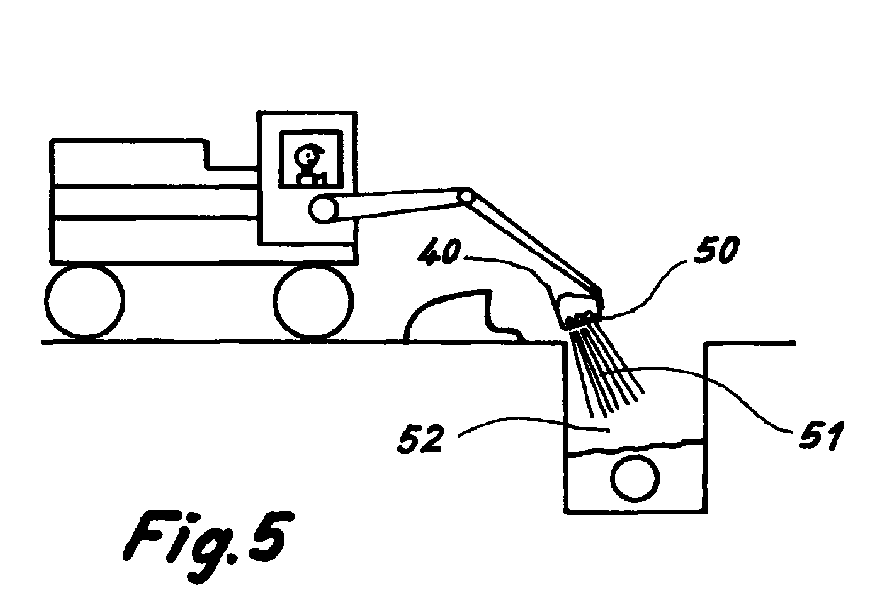

    Figure 00000002
