Abstract

Es wird ein Präsentationssystem (10) mit mindestens einem Paar Pfosten (12), einem unteren und einem oberen Querelement (14, 16), die dem Paar Pfosten (12) zugeordnet sind, mindestens einem Fußelement (18), das mit einem der Pfosten (12) verbunden ist, und einem sich zwischen den Pfosten (12) und den zugeordneten Querelementen (14, 16) erstreckenden, flexiblen Präsentationsabschnitt (20) offenbart, der mit seinem oberen Ende (22) an dem oberen Querelement (16) befestigt ist. Erfindungsgemäß sind die Pfosten (12) und die Querelemente (14, 16) rahmenartig lösbar miteinander verbunden, wobei am unteren Ende (24) des Präsentationsabschnitts (20) ein stabförmiges Spannelement (26) befestigt ist, dessen Enden (28) in Längserstreckungsrichtung der Pfosten (12) relativ zu den Pfosten (12) verschiebbar angeordnet und senkrecht zu den Pfosten (12) formschlüssig an den Pfosten (12) festgelegt sind. Im Ergebnis wird ein einfach ausgebildetes Präsentationssystem (10) geschaffen, welches sehr flexibel ist und sich leicht und sicher auf- und abbauen läßt.

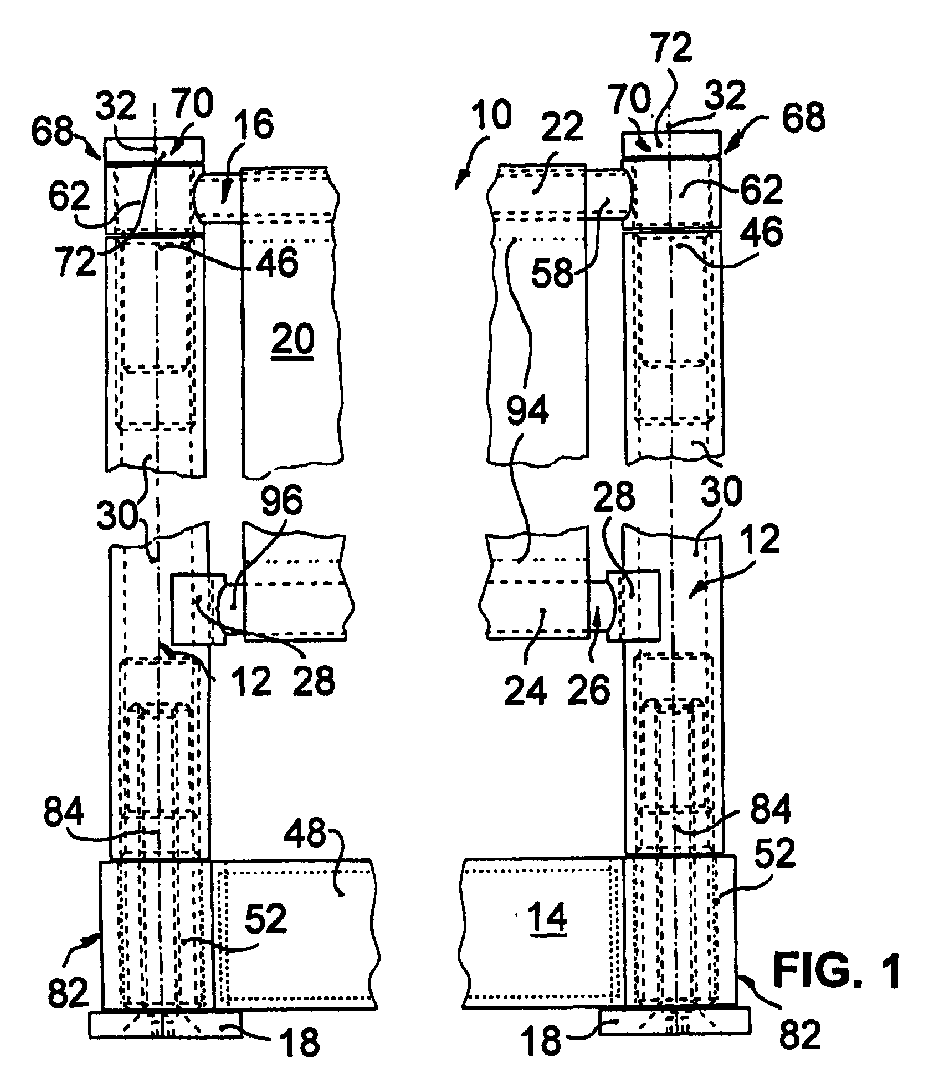

Figure 00000001
There is a presentation system (10) with at least one pair of posts (12), a lower and an upper cross element (14, 16), which are assigned to the pair of posts (12), at least one foot element (18), which with one of the posts (12), and a flexible presentation section (20) extending between the posts (12) and the associated cross members (14, 16) is disclosed, which is attached with its upper end (22) to the upper cross member (16) . According to the invention, the posts (12) and the transverse elements (14, 16) are detachably connected to one another in a frame-like manner, a rod-shaped tensioning element (26) being attached to the lower end (24) of the presentation section (20), the ends (28) of which in the longitudinal direction of the posts (12) are arranged to be displaceable relative to the posts (12) and are positively fixed to the posts (12) perpendicular to the posts (12). As a result, a simply designed presentation system (10) is created which is very flexible and can be assembled and disassembled easily and safely.
Figure 00000001
