EP1999314B1 - Procédé de fabrication de papier et de carton présentant une grande résistance à sec - Google Patents

Procédé de fabrication de papier et de carton présentant une grande résistance à sec Download PDF

Info

Publication number
EP1999314B1
EP1999314B1 EP07712497.2A EP07712497A EP1999314B1 EP 1999314 B1 EP1999314 B1 EP 1999314B1 EP 07712497 A EP07712497 A EP 07712497A EP 1999314 B1 EP1999314 B1 EP 1999314B1
Authority
EP
European Patent Office
Prior art keywords
units
cationic polymer
process according
acid
paper
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Not-in-force
Application number
EP07712497.2A
Other languages
German (de)
English (en)
Other versions
EP1999314A1 (fr
Inventor
Martin Rübenacker
Norbert Schall
Ellen KRÜGER
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
BASF SE
Original Assignee
BASF SE
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by BASF SE filed Critical BASF SE
Priority to EP07712497.2A priority Critical patent/EP1999314B1/fr
Publication of EP1999314A1 publication Critical patent/EP1999314A1/fr
Application granted granted Critical
Publication of EP1999314B1 publication Critical patent/EP1999314B1/fr
Not-in-force legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Classifications

    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H21/00—Non-fibrous material added to the pulp, characterised by its function, form or properties; Paper-impregnating or coating material, characterised by its function, form or properties
    • D21H21/14—Non-fibrous material added to the pulp, characterised by its function, form or properties; Paper-impregnating or coating material, characterised by its function, form or properties characterised by function or properties in or on the paper
    • D21H21/18—Reinforcing agents
    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H17/00—Non-fibrous material added to the pulp, characterised by its constitution; Paper-impregnating material characterised by its constitution
    • D21H17/20—Macromolecular organic compounds
    • D21H17/21—Macromolecular organic compounds of natural origin; Derivatives thereof
    • D21H17/23—Lignins
    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H17/00—Non-fibrous material added to the pulp, characterised by its constitution; Paper-impregnating material characterised by its constitution
    • D21H17/20—Macromolecular organic compounds
    • D21H17/33—Synthetic macromolecular compounds
    • D21H17/34—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds
    • D21H17/41—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds containing ionic groups
    • D21H17/42—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds containing ionic groups anionic
    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H17/00—Non-fibrous material added to the pulp, characterised by its constitution; Paper-impregnating material characterised by its constitution
    • D21H17/20—Macromolecular organic compounds
    • D21H17/33—Synthetic macromolecular compounds
    • D21H17/34—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds
    • D21H17/41—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds containing ionic groups
    • D21H17/42—Synthetic macromolecular compounds obtained by reactions only involving carbon-to-carbon unsaturated bonds containing ionic groups anionic
    • D21H17/43—Carboxyl groups or derivatives thereof

Definitions

  • the invention relates to a process for the production of paper, paperboard and cardboard with high dry strength by separately adding a polymer containing vinylamine units and a polymeric anionic compound to a pulp, dewatering the pulp and drying the paper products.
  • a method for the production of paper with high dry strength is known in which the paper stock is first a water-soluble cationic polymer, z. As polyethyleneimine, and then adding a water-soluble anionic polymer, eg. As a hydrolyzed polyacrylamide, added and dehydrated the pulp on the paper machine with sheet formation.
  • the anionic polymers contain up to 30 mol% of copolymerized acrylic acid.
  • From the DE-A 35 06 832 discloses a process for the production of paper with high dry strength, in which one adds to the stock first a water-soluble cationic polymer and then a water-soluble anionic polymer.
  • Suitable anionic polymers are, for example, homopolymers or copolymers of ethylenically unsaturated C 3 -C 5 -carboxylic acids.
  • the copolymers contain at least 35% by weight of an ethylenically unsaturated C 3 -C 5 -carboxylic acid (for example acrylic acid) in copolymerized form.
  • polyethyleneimine polyvinylamine, polydiallyldimethylammonium chloride and epichlorohydrin crosslinked condensation products of adipic acid and diethylenetriamine are described.
  • the use of partially hydrolyzed homo- and copolymers of N-vinylformamide has also been considered.
  • the degree of hydrolysis The N-vinylformamide polymer is at least 30 mol% and is preferably 50 to 100 mol%.
  • the JP-A 1999-140787 relates to a process for the production of corrugated board, wherein to improve the strength properties of a paper product to the pulp 0.05 to 0.5 wt .-%, based on dry pulp, of a polyvinylamine obtained by hydrolysis of polyvinylformamide having a degree of hydrolysis of 25 to 100 %, in combination with an anionic polyacrylamide, the pulp is then dewatered and dried.
  • WO 03/052206 discloses a paper product having improved strength properties obtainable by applying to the surface of a paper product a polyvinylamine and a polymeric anionic compound which can form a polyelectrolyte complex with polyvinylamine, or a polymeric compound having aldehyde functions such as aldehyde group-containing polysaccharides. Not only does the paper improve its dry and wet strength, it also observes a sizing effect of the treating agents.
  • the EP 672 212 discloses the sole use of hydrolyzed copolymers of N-vinylcarboxamides and monoethylenically unsaturated carboxylic acids as an additive to the paper stock.
  • EP 362 770 and EP 723,047 each disclose combinations of polyacrylamides and lignosulfonate, which are previously prepared as a polyelectrolyte complex and added as such to the stock.
  • both documents each disclose the addition of alum, which causes an increase in pH. It is known to the person skilled in the art that alum is used as fixing agent in order to fix the polyelectrolyte and lignosulphonate polyelectrolyte complex on the fiber.
  • EP-A 438 744 is the use of copolymers of, for example, N-vinylformamide and acrylic acid, methacrylic acid and / or maleic acid having a K value of 8 to 50 (determined according to H. Fikentscher in 1% aqueous solution at pH 7 and 25 ° C) and the from them by partial or complete removal of formyl groups from the copolymerized vinylformamide with the formation of vinylamine units polymers available as anti-scale agents in water-bearing systems such as boilers or pipes, known.
  • copolymers obtained by copolymerizing N-vinylcarboxamides, monoethylenically unsaturated carboxylic acids and optionally other ethylenically unsaturated monomers and subsequent hydrolysis of the vinylcarboxylic acid units contained in the copolymers to the corresponding Amine or ammonium units are available, can be used in papermaking as an additive to the paper stock to increase the rate of dewatering and retention and the dry and wet strength of the paper, see.
  • EP-B 672 212
  • the present invention has for its object to provide a further process for the production of paper with high dry strength and lowest possible wet strength available.
  • the dry strength in particular in packaging papers (for example, wave from waste paper, Fluting) should be further improved compared to the previously known methods.
  • a polymer comprising vinylamine units is added to the paper stock as the polymeric cationic component.
  • These compounds are preferably used as the sole cationic component. However, they may optionally be substituted by up to 50% by weight of other cationic polymers such as cationic poly (meth) acrylamides, polydiallyldimethylammonium chlorides, condensates of dimethylamine and epichlorohydrin or polydialkyl (meth) acrylamides.
  • Suitable cationic polymers containing vinylamine units are all polymers which are cited, for example, in the prior art WO 04/061235 , Page 12, line 28 to page 13, line 21 and in Figure 1 are indicated.
  • the molecular weight M w of the polymers containing vinylamine units is, for example, 1000 to 5 million, and is usually in the range of 5,000 to 500,000, preferably 40,000 D to 400,000 D.
  • the indication of vinylamine units comprises the sum of vinylamine and amidine units in the polymer.
  • a polymer containing at least 1 mol% of N-vinylformamide homopolymer is used as the polymer containing vinylamine units.
  • Polyvinylamine and / or at least 50 mol% of hydrolyzed homopolymers of N-vinylformamide are preferably used in the inventive method as a cationic component.
  • This group of polymers which are amphoteric and which have a total of more cationic than anionic groups contains, for example, up to a maximum of 35 mol%, preferably up to 10 mol%, of at least one acid group-containing monomer of group (b) in copolymerized form.
  • lignosulfonic acid and / or a lignosulfonate into consideration. Further details of these products can be found for example in the above reference Römpp, 9th edition, G. Thieme Verlag Stuttgart, 1990, page 2511 and in Ullmann's Encyclopedia of Industrial Chemistry, 5th Completely Revised Edition, Volume A15, pages 311-314 , Lignosulfonic acid is formed in cellulose production by sulphite digestion of wood, whereby lignin reacts with sulphurous acid. It is sulfonated here on the C 3 side chains of the phenylpropane units.
  • lignin sulphonic acid or lignin sulphonates are formed, for example, the sodium, potassium, ammonium, magnesium or calcium salts of lignosulphonic acid.
  • Lignosulfonic acid and the salts of lignosulfonic acid mentioned are soluble in water.
  • the molecular weight of the lignosulfonic acid is, for example 10,000 to 200,000 g / mol.
  • Lignosulfonates are z. B. obtained from the sulfite waste liquors (black liquor) of cellulose production.
  • Lignosulfonic acid and / or lignin sulfonate are used, for example, in an amount of from 0.1 to 10% by weight, preferably from 0.2 to 5% by weight and in particular from 0.5 to 2% by weight, based on dry paper stock.
  • Vinylamine units containing polymer and lignosulfonic acid and / or lignin sulfonate be used in the inventive method, for example in a weight ratio of 5: 1 to 1: 5, preferably in a weight ratio of 2: 1 to 1: 2.
  • Examples of monomers of group (a) are N-vinylformamide, N-vinyl-N-methylformamide, N-vinylacetamide, N-vinyl-N-methylacetamide, N-vinyl-N-ethylacetamide, N-vinyl-N-methylpropionamide and N -Vinylpropionamid.
  • the monomers of group (a) may be used alone or in admixture in the copolymerization with the monomers of the other groups.
  • Suitable monomers of group (b) are, in particular, monoethylenically unsaturated carboxylic acids having 3 to 8 carbon atoms and the water-soluble salts of these carboxylic acids.
  • This group of monomers includes, for example, acrylic acid, methacrylic acid, dimethacrylic acid, ethacrylic acid, maleic acid, fumaric acid, itaconic acid, mesaconic acid, citraconic acid, methylenemalonic acid, allylacetic acid, vinylacetic acid and crotonic acid.
  • monomers of group (b) are monomers containing sulfo groups, such as vinylsulfonic acid, acrylamido-2-methylpropanesulfonic acid and styrenesulfonic acid and also vinylphosphonic acid.
  • the monomers of this group can be used alone or in admixture with each other, in partially or completely neutralized form in the copolymerization.
  • neutralization for example, alkali metal or alkaline earth metal bases, ammonia, amines and / or alkanolamines are used.
  • the monomers of group (b) are preferably used in the copolymerization in partially neutralized form.
  • the copolymers may optionally contain monomers of group (c) in copolymerized form, for example esters of ethylenically unsaturated C 3 to C 5 carboxylic acids such as methyl acrylate, ethyl acrylate, n-butyl acrylate, isobutyl acrylate, isobutyl methacrylate, methyl methacrylate, ethyl methacrylate and vinyl esters such as vinyl acetate or Vinyl propionate, or other monomers such as N-vinylpyrrolidone, N-vinylimidazole, acrylamide and / or methacrylamide.
  • esters of ethylenically unsaturated C 3 to C 5 carboxylic acids such as methyl acrylate, ethyl acrylate, n-butyl acrylate, isobutyl acrylate, isobutyl methacrylate, methyl methacrylate, ethyl methacrylate and vinyl est
  • a further modification of the copolymers is possible by using in the copolymerization monomers (d) which contain at least two double bonds in the molecule, for.
  • monomers (d) which contain at least two double bonds in the molecule
  • methylenebisacrylamide glycol diacrylate, glycol dimethacrylate, Gylcerintriacrylat, triallylamine, Pentaerythrittriallylether, at least twice with acrylic acid and / or methacrylic acid esterified polyalkylene glycols or polyols such as pentaerythritol, soba or glucose.
  • the amounts used are up to 2 mol%, z. B. 0.001 to 1 mol%.
  • the copolymerization of the monomers is carried out in a known manner in the presence of free-radical polymerization initiators and optionally in the presence of polymerization regulators, cf. EP-B 672 212 , Page 4, lines 13 - 37 or EP-A 438 744 , Page 2, line 26 to page 8, line 18.
  • the average molecular weights M W of the anionic polymers (ii) are, for example, 30,000 D to 10 million D, preferably 100,000 D to 1 million D.
  • These polymers have, for example, K values (determined according to H. Fikentscher in 5% aqueous sodium chloride solution pH 7, a polymer concentration of 0.5% by weight and a temperature of 25 ° C) in the range of 20 to 250, preferably 50 to 150.
  • the invention further provides the use of a polymeric anionic compound according to the invention as an additive to the paper stock in the production of paper, paperboard and cardboard in the presence of at least one vinylamine units containing cationic polymers to increase the dry strength.
  • Wood pulp includes, for example, groundwood, thermomechanical pulp (TMP), chemo-thermo-mechanical pulp (CTMP), pressure groundwood, semi-pulp, high yield pulp, and refiner mechanical pulp (RMP).
  • TMP thermomechanical pulp
  • CMP chemo-thermo-mechanical pulp
  • RMP refiner mechanical pulp
  • pulp for example, sulphate, sulphite and soda pulps come into consideration.
  • unbleached pulp also referred to as unbleached kraft pulp, or a waste paper pulp.
  • Suitable annual plants for the production of pulps are, for example, rice, wheat, sugar cane and kenaf.
  • waste paper is usually used, which is used either alone or in admixture with other fibers or it is based on fiber blends of a primary material and recycled coated Committee, z. Bleached pine sulfate in admixture with recycled coated broke.
  • the dewatering of the stock usually takes place on the wire of a paper machine.
  • the method according to the invention has particular significance for the production of paper and board from waste paper, because it significantly increases the strength properties of the recycled fibers.
  • the pH of the stock suspension is, for example, in the range of 4.5 to 8, most 6 to 7.5.
  • an acid such as sulfuric acid or aluminum sulphate.
  • the vinylamine unit-containing polymer i. the cationic component of the polymer to be metered to the paper stock is added in the inventive method, for example to the thick material or preferably to a thin material.
  • the point of addition is preferably in front of the screens, but may also be between a shearing stage and a screen or afterwards.
  • the anionic component is preferably dosed to the thin.
  • first lignosulfonic acid or lignin sulfonate is metered in, thereafter as the sole cationic component a polymer containing vinylamine groups and subsequently an anionic polymer of vinylformamide.
  • the sole cationic component a polymer containing vinylamine groups and subsequently an anionic polymer of vinylformamide.
  • the cationic component (vinylamine units-containing polymer as the sole cationic component) to the paper stock and to meter the anionic component simultaneously but separately from the cationic component to the paper stock.
  • the vinylamine units-containing polymer is used, for example, in an amount of 0.05 to 2.0 wt .-%, preferably 0.1 to 1 wt .-%, based on dry pulp.
  • the ratio of cationic component (polymer containing vinylamine units) to polymeric anionic component (ligninsulfonic acid and / or ligninsulfonate or combination of ligninsulfonic acid and / or ligninsulfonate with at least one anionic polymer of vinylformamide) is for example 5: 1 to 1: 5 and is preferably in in the range of 2: 1 to 1: 2.
  • the process according to the invention gives paper products which, compared with the processes of the prior art, have a higher level of dry strength with simultaneously low wet strength.
  • these papers have a high CMT value compared with known paper products.
  • the parts given in the following examples are parts by weight, the percentages are based on the weight of the substances.
  • the K value of the polymers was after H. Fikentscher, Cellulose Chemistry, Vol. 13, 58-64 and 71-74 (1932 ) at a temperature of 20 ° C in 5 wt .-% aqueous saline solutions at a pH of 7 and a polymer concentration of 0.5%.
  • K k * 1000.
  • Example 1 in each case one sample of the above-described paper stock was first metered into the quantities of lignosulfonate indicated in Table 1, the sample was mixed, then the cationic polymer (PVAm 1) was added after a residence time of 20 seconds and the mixture was mixed In turn, after a 20 second residence time, the anionic polymer 1 was added, the mixed stock was mixed, and then dewatered on a Rapid-Kothen sheet former.
  • the values for the dry burst pressure, the SCT value and the CMT value converted to sheets having a basis weight of 120 g / m 2 are given in Table 1. Table 1 Comp.

Landscapes

  • Paper (AREA)

Claims (13)

  1. Procédé de fabrication de papier et de carton présentant une grande résistance à sec par ajout séparé d'un polymère cationique contenant des unités vinylamine et d'un composé anionique polymère à une pâte à papier, déshydratation de la pâte à papier et séchage des produits de papier, caractérisé en ce qu'on utilise en tant que composé anionique polymère
    (i) de l'acide ligninesulfonique et/ou un sulfonate de lignine et
    (ii) au moins un copolymère, qui peut être obtenu par copolymérisation de
    (a) au moins un amide d'acide N-vinylcarboxylique de formule
    Figure imgb0015
     dans laquelle R1, R2 = H ou alkyle en C1 à C6,
    (b) au moins un monomère monoéthyléniquement insaturé contenant des groupes acides et/ou ses sels de métaux alcalin, de métaux alcalino-terreux ou d'ammonium, et éventuellement
    (c) d'autres monomères monoéthyléniquement insaturés, et éventuellement
    (d) des composés qui comprennent au moins deux doubles liaisons éthyléniquement insaturées par molécule.
  2. Procédé selon la revendication 1, caractérisé en ce qu'on utilise en tant que polymère cationique contenant des unités vinylamine au moins un composé qui peut être obtenu par polymérisation d'au moins un monomère de formule
    Figure imgb0016
     dans laquelle R1, R2 = H ou alkyle en C1 à C6,
    puis clivage partiel ou total des groupes -CO-R1 des unités du monomère I polymérisées dans le polymère avec formation de groupes amino.
  3. Procédé selon la revendication 1 ou 2, caractérisé en ce qu'on utilise en tant que polymère cationique contenant des unités vinylamine un homopolymère de N-vinylformamide hydrolysé à hauteur d'au moins 1 % en moles.
  4. Procédé selon l'une quelconque des revendications 1 à 3, caractérisé en ce qu'on utilise en tant que polymère cationique contenant des unités vinylamine un copolymère qui peut être obtenu par copolymérisation de
    (a) au moins un amide d'acide N-vinylcarboxylique de formule
    Figure imgb0017
     dans laquelle R1, R2 = H ou alkyle en C1 à C6,
    (b) au moins un monomère monoéthyléniquement insaturé contenant des groupes acides et/ou ses sels de métaux alcalin, de métaux alcalino-terreux ou d'ammonium, et éventuellement
    (c) d'autres monomères monoéthyléniquement insaturés, et éventuellement
    (d) des composés qui comprennent au moins deux doubles liaisons éthyléniquement insaturées par molécule,
    puis clivage partiel ou total des groupes -CO-R1 des unités du monomère I polymérisées dans le polymère avec formation de groupes amino, la proportion des groupes amino dans le copolymère étant supérieure d'au moins 10 % en moles à la proportion des unités de monomères monoéthyléniquement insaturés contenant des groupes acides.
  5. Procédé selon l'une quelconque des revendications 1 à 4, caractérisé en ce qu'on utilise en tant que polymère cationique contenant des unités vinylamine de la polyvinylamine et/ou un homopolymère de N-vinylformamide hydrolysé à hauteur d'au moins 50 % en moles.
  6. Procédé selon l'une quelconque des revendications 1 à 5, caractérisé en ce qu'on utilise en tant que sulfonate de lignine les sels de sodium, de potassium, d'ammonium, de calcium, de magnésium solubles dans l'eau ou leurs mélanges.
  7. Procédé selon l'une quelconque des revendications 1 à 6, caractérisé en ce que le polymère cationique contenant des unités vinylamine est utilisé en une quantité de 0,05 à 2,0 % en poids, par rapport à la pâte à papier sèche.
  8. Procédé selon l'une quelconque des revendications 1 à 7, caractérisé en ce que le polymère cationique contenant des unités vinylamine et l'acide ligninesulfonique et/ou le sulfonate de lignine sont utilisés en un rapport en poids de 5:1 à 1:5.
  9. Procédé selon l'une quelconque des revendications 1 à 8, caractérisé en ce que le polymère cationique contenant des unités vinylamine et l'acide ligninesulfonique et/ou le sulfonate de lignine sont utilisés en un rapport en poids de 2:1 à 1:2.
  10. Procédé selon l'une quelconque des revendications 1 à 9, caractérisé en ce que l'acide ligninesulfonique et/ou le sulfonate de lignine sont tout d'abord ajoutés à la pâte à papier, puis le polymère cationique contenant des unités vinylamine est ajouté, et la pâte à papier est enfin déshydratée.
  11. Procédé selon l'une quelconque des revendications 1 à 9, caractérisé en ce que le polymère cationique contenant des unités vinylamine est tout d'abord ajouté à la pâte à papier, puis l'acide ligninesulfonique et/ou le sulfonate de lignine sont ajoutés, et la pâte à papier est enfin déshydratée.
  12. Procédé selon la revendication 10, caractérisé en ce qu'après l'ajout de l'acide ligninesulfonique et/ou du sulfonate de lignine et d'au moins un polymère cationique contenant des unités vinylamine à la pâte à papier, un copolymère anionique contenant des unités amide d'acide vinylcarboxylique est encore ajouté, qui peut être obtenu par copolymérisation de

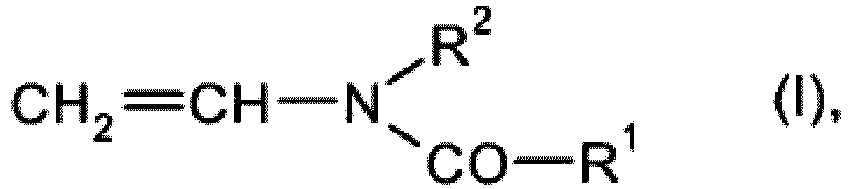

    (a) au moins un amide d'acide N-vinylcarboxylique de formule
    Figure imgb0018
     dans laquelle R1, R2 = H ou alkyle en C1 à C6,
    (b) au moins un monomère monoéthyléniquement insaturé contenant des groupes acides et/ou ses sels de métaux alcalin, de métaux alcalino-terreux ou d'ammonium, et éventuellement
    (c) d'autres monomères monoéthyléniquement insaturés, et éventuellement
    (d) des composés qui comprennent au moins deux doubles liaisons éthyléniquement insaturées par molécule.
  13. Utilisation d'un composé anionique polymère selon la revendication 1 en tant qu'additif pour pâte à papier lors de la fabrication de papier et de carton en présence d'au moins un polymère cationique contenant des unités vinylamine pour augmenter la résistance à sec.
EP07712497.2A 2006-03-16 2007-03-09 Procédé de fabrication de papier et de carton présentant une grande résistance à sec Not-in-force EP1999314B1 (fr)

Priority Applications (1)

Application Number Priority Date Filing Date Title
EP07712497.2A EP1999314B1 (fr) 2006-03-16 2007-03-09 Procédé de fabrication de papier et de carton présentant une grande résistance à sec

Applications Claiming Priority (3)

Application Number Priority Date Filing Date Title
EP06111267 2006-03-16
EP07712497.2A EP1999314B1 (fr) 2006-03-16 2007-03-09 Procédé de fabrication de papier et de carton présentant une grande résistance à sec
PCT/EP2007/052238 WO2007104716A1 (fr) 2006-03-16 2007-03-09 Procédé de fabrication de papier et de carton présentant une grande résistance à sec

Publications (2)

Publication Number Publication Date
EP1999314A1 EP1999314A1 (fr) 2008-12-10
EP1999314B1 true EP1999314B1 (fr) 2017-02-22

Family

ID=38325364

Family Applications (1)

Application Number Title Priority Date Filing Date
EP07712497.2A Not-in-force EP1999314B1 (fr) 2006-03-16 2007-03-09 Procédé de fabrication de papier et de carton présentant une grande résistance à sec

Country Status (8)

Country Link
US (1) US7922867B2 (fr)
EP (1) EP1999314B1 (fr)
JP (1) JP5156650B2 (fr)
CN (1) CN101405457B (fr)
CA (1) CA2644348C (fr)
ES (1) ES2625622T3 (fr)
PT (1) PT1999314T (fr)
WO (1) WO2007104716A1 (fr)

Families Citing this family (17)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE102004056551A1 (de) * 2004-11-23 2006-05-24 Basf Ag Verfahren zur Herstellung von Papier, Pappe und Karton mit hoher Trockenfestigkeit
PT2288750E (pt) * 2008-05-15 2012-09-26 Basf Se Processo para a produção de papel, de papelão e de cartão com elevada resistência a seco
CN102459760A (zh) 2009-06-16 2012-05-16 巴斯夫欧洲公司 提高纸张、纸板和卡纸板干强度的方法
JP5571014B2 (ja) * 2011-02-21 2014-08-13 Ｋｊ特殊紙株式会社 電磁波抑制シート
TWI511999B (zh) * 2011-07-11 2015-12-11 Ind Tech Res Inst 電子元件、導電高分子組合物以及其製備方法
CN103930619B (zh) 2011-08-25 2016-12-07 索理思科技开曼公司 增加强度助剂在制造纸和纸板中的优势的方法
US9908680B2 (en) 2012-09-28 2018-03-06 Kimberly-Clark Worldwide, Inc. Tree-free fiber compositions and uses in containerboard packaging
US9816233B2 (en) 2012-09-28 2017-11-14 Kimberly-Clark Worldwide, Inc. Hybrid fiber compositions and uses in containerboard packaging
US9562326B2 (en) * 2013-03-14 2017-02-07 Kemira Oyj Compositions and methods of making paper products
CN104452463B (zh) 2013-09-12 2017-01-04 艺康美国股份有限公司 造纸方法以及组合物
CN104452455B (zh) 2013-09-12 2019-04-05 艺康美国股份有限公司 造纸助剂组合物以及增加成纸灰分保留的方法
PL3122937T3 (pl) 2014-03-28 2019-07-31 Basf Se Sposób wytwarzania tektury falistej
CN106930142B (zh) * 2015-12-31 2020-03-24 艺康美国股份有限公司 干强剂组合物以及提高纸张干强度的方法
JP6999162B2 (ja) * 2017-12-22 2022-02-10 国立研究開発法人産業技術総合研究所 リグニンスルホン酸とカチオン性高分子を成分とするイオン複合材料
US12553189B2 (en) 2019-05-03 2026-02-17 First Quality Tissue, Llc Absorbent structures with high strength and low MD stretch
JP7563724B2 (ja) * 2019-06-04 2024-10-08 国立研究開発法人産業技術総合研究所 リグニンスルホン酸、カチオン性高分子およびアルデヒド基を有する化合物を成分とするイオン複合材料
US20240344271A1 (en) * 2021-08-30 2024-10-17 Ecolab Usa Inc. Use of modified lignin as a wet end strength additive

Family Cites Families (19)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US2721140A (en) * 1952-09-19 1955-10-18 Hercules Powder Co Ltd Paper of high wet strength and process therefor
US3448005A (en) 1965-01-04 1969-06-03 Weyerhaeuser Co Process of forming wet strength paper containing a cationic resin and fumarated unsaturated oil
SE443818B (sv) 1978-04-24 1986-03-10 Mitsubishi Chem Ind Forfarande for framstellning av papper med forbettrad torrstyrka
JPS57191394A (en) * 1981-05-19 1982-11-25 Rei Tech Inc Papermaking method using lignin like substance and cationic polymer
DE3506832A1 (de) 1985-02-27 1986-08-28 Basf Ag, 6700 Ludwigshafen Verfahren zur herstellung von papier mit hoher trockenfestigkeit
DE3534273A1 (de) * 1985-09-26 1987-04-02 Basf Ag Verfahren zur herstellung von vinylamin-einheiten enthaltenden wasserloeslichen copolymerisaten und deren verwendung als nass- und trockenverfestigungsmittel fuer papier
JPH01183598A (ja) * 1988-01-18 1989-07-21 Showa Denko Kk 紙・板紙の抄造方法
KR0159921B1 (ko) * 1988-10-03 1999-01-15 마이클 비. 키한 양이온성 및 음이온성 중합체의 혼합물, 그 제법 및 종이용 건조강도 개선 첨가제로서의 용도
DE4001808A1 (de) 1990-01-23 1991-07-25 Basf Ag Verwendung von wasserloeslichen copolymerisaten aus monoethylenisch ungesaettigten carbonsaeuren und n-vinylamiden als wasserbehandlungsmittel
US5630907A (en) 1992-12-07 1997-05-20 Basf Aktiengesellschaft Use of hydrolyzed copolymers of N-vinylcarboxamides and monoethylenically unsaturated carboxylic acids in papermaking
DE4241117A1 (de) * 1992-12-07 1994-06-09 Basf Ag Verwendung von hydrolysierten Copolymerisaten aus N-Vinylcarbonsäureamiden und monoethylenisch ungesättigten Carbonsäuren bei der Papierherstellung
JPH06184983A (ja) * 1992-12-21 1994-07-05 Sumitomo Chem Co Ltd 紙および板紙の製造方法
US6228217B1 (en) * 1995-01-13 2001-05-08 Hercules Incorporated Strength of paper made from pulp containing surface active, carboxyl compounds
DE19537088A1 (de) 1995-10-05 1997-04-10 Basf Ag Verfahren zur Herstellung von trockenfest und naßfest ausgerüstetem Papier
US6315824B1 (en) * 1996-02-02 2001-11-13 Rodrigue V. Lauzon Coacervate stabilizer system
JP3151427B2 (ja) 1997-11-06 2001-04-03 株式会社トキワ 段ボール原紙の製造方法
US6824650B2 (en) 2001-12-18 2004-11-30 Kimberly-Clark Worldwide, Inc. Fibrous materials treated with a polyvinylamine polymer
US20040118540A1 (en) 2002-12-20 2004-06-24 Kimberly-Clark Worlwide, Inc. Bicomponent strengtheninig system for paper
DE102004056551A1 (de) 2004-11-23 2006-05-24 Basf Ag Verfahren zur Herstellung von Papier, Pappe und Karton mit hoher Trockenfestigkeit

Non-Patent Citations (1)

* Cited by examiner, † Cited by third party
Title
None *

Also Published As

Publication number Publication date
JP2009530504A (ja) 2009-08-27
US20100108279A1 (en) 2010-05-06
ES2625622T3 (es) 2017-07-20
CA2644348C (fr) 2014-06-10
CN101405457A (zh) 2009-04-08
EP1999314A1 (fr) 2008-12-10
US7922867B2 (en) 2011-04-12
CA2644348A1 (fr) 2007-09-20
WO2007104716A1 (fr) 2007-09-20
PT1999314T (pt) 2017-05-26
JP5156650B2 (ja) 2013-03-06
CN101405457B (zh) 2011-08-17

Similar Documents

Publication Publication Date Title
EP1999314B1 (fr) Procédé de fabrication de papier et de carton présentant une grande résistance à sec
EP1819877B1 (fr) Procede pour produire du papier, du carton, du carton blanchi presentant une resistance elevee a sec
EP2443284B1 (fr) Procédé de fabrication pour augmenter la résistance à sec de papier et de carton présentant
EP2315875B1 (fr) Procédé pour améliorer la résistance à sec du papier, du carton-pâte et du carton
EP2304106B1 (fr) Production de papier
EP2288750B1 (fr) Procédé de production de papier, de carton-pâte, et de carton présentant une résistance à sec élevée
DE69224063T2 (de) Verfahren zur herstellung von papier
WO2011048000A1 (fr) Procédé de production de papier, carton et carton blanchi de grande résistance à la traction à l'état sec
EP2393982A1 (fr) Procédé de fabrication de papier, de carton-pâte et de carton présentant une grande résistance à sec
DE3506832A1 (de) Verfahren zur herstellung von papier mit hoher trockenfestigkeit
DE2263089B2 (de) Papier mit einem Gehalt an einem Copolymeren mit Acrylamid- und N-(DialkylaminomethyDacrylamideinheiten sowie Verfahren zu seiner Herstellung
EP2443282A1 (fr) Procédé de réduction de dépôts dans la partie sèche lors de la fabrication de papier et carton
EP3122937B1 (fr) Procédé de fabrication de carton ondulé
EP2723943B1 (fr) Procédé de fabrication de papier, de papier-carton et de carton compact
EP1727938B1 (fr) Procede de fabrication de papier, de carton-pate et de carton
EP3207178A1 (fr) Composition de durcissement pour papier et carton
DE69515016T2 (de) Verfahren zur Herstellung von Tissuepapier, Zeitungsdruckpapier, Papier oder Karton
WO2006136556A2 (fr) Procede de fabrication de papier et de carton
DE3613651A1 (de) Verfahren zur herstellung von papier mit hoher trockenfestigkeit
DE2117682A1 (en) Alpha-olefin/acrylic copolymers - used in soln as a paper size

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

17P Request for examination filed

Effective date: 20081016

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IS IT LI LT LU LV MC MT NL PL PT RO SE SI SK TR

17Q First examination report despatched

Effective date: 20090116

DAX Request for extension of the european patent (deleted)
REG Reference to a national code

Ref country code: DE

Ref legal event code: R079

Ref document number: 502007015455

Country of ref document: DE

Free format text: PREVIOUS MAIN CLASS: D21H0021180000

Ipc: D21H0017430000

GRAP Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOSNIGR1

RIC1 Information provided on ipc code assigned before grant

Ipc: D21H 21/18 20060101ALI20160406BHEP

Ipc: D21H 17/43 20060101AFI20160406BHEP

Ipc: D21H 17/23 20060101ALI20160406BHEP

Ipc: D21H 17/42 20060101ALI20160406BHEP

INTG Intention to grant announced

Effective date: 20160420

GRAJ Information related to disapproval of communication of intention to grant by the applicant or resumption of examination proceedings by the epo deleted

Free format text: ORIGINAL CODE: EPIDOSDIGR1

GRAS Grant fee paid

Free format text: ORIGINAL CODE: EPIDOSNIGR3

GRAP Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOSNIGR1

INTC Intention to grant announced (deleted)
INTG Intention to grant announced

Effective date: 20160922

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IS IT LI LT LU LV MC MT NL PL PT RO SE SI SK TR

REG Reference to a national code

Ref country code: GB

Ref legal event code: FG4D

Free format text: NOT ENGLISH

REG Reference to a national code

Ref country code: CH

Ref legal event code: EP

REG Reference to a national code

Ref country code: AT

Ref legal event code: REF

Ref document number: 869387

Country of ref document: AT

Kind code of ref document: T

Effective date: 20170315

REG Reference to a national code

Ref country code: IE

Ref legal event code: FG4D

Free format text: LANGUAGE OF EP DOCUMENT: GERMAN

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 11

REG Reference to a national code

Ref country code: DE

Ref legal event code: R096

Ref document number: 502007015455

Country of ref document: DE

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 20170327

Year of fee payment: 11

Ref country code: NL

Payment date: 20170327

Year of fee payment: 11

Ref country code: FI

Payment date: 20170322

Year of fee payment: 11

Ref country code: CH

Payment date: 20170327

Year of fee payment: 11

REG Reference to a national code

Ref country code: NL

Ref legal event code: FP

REG Reference to a national code

Ref country code: PT

Ref legal event code: SC4A

Ref document number: 1999314

Country of ref document: PT

Date of ref document: 20170526

Kind code of ref document: T

Free format text: AVAILABILITY OF NATIONAL TRANSLATION

Effective date: 20170516

REG Reference to a national code

Ref country code: SE

Ref legal event code: TRGR

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: BE

Payment date: 20170328

Year of fee payment: 11

Ref country code: AT

Payment date: 20170328

Year of fee payment: 11

Ref country code: GB

Payment date: 20170330

Year of fee payment: 11

REG Reference to a national code

Ref country code: LT

Ref legal event code: MG4D

REG Reference to a national code

Ref country code: ES

Ref legal event code: FG2A

Ref document number: 2625622

Country of ref document: ES

Kind code of ref document: T3

Effective date: 20170720

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: GR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170523

Ref country code: LT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DE

Payment date: 20170531

Year of fee payment: 11

Ref country code: CZ

Payment date: 20170308

Year of fee payment: 11

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: BG

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170522

Ref country code: LV

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: ES

Payment date: 20170425

Year of fee payment: 11

Ref country code: IT

Payment date: 20170322

Year of fee payment: 11

Ref country code: PT

Payment date: 20170601

Year of fee payment: 11

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: RO

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

Ref country code: SK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

Ref country code: EE

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

REG Reference to a national code

Ref country code: DE

Ref legal event code: R097

Ref document number: 502007015455

Country of ref document: DE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: PL

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

Ref country code: DK

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

Ref country code: MC

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: SE

Payment date: 20170324

Year of fee payment: 11

REG Reference to a national code

Ref country code: IE

Ref legal event code: MM4A

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

26N No opposition filed

Effective date: 20171123

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: LU

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20170309

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SI

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

Ref country code: IE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20170309

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: MT

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

REG Reference to a national code

Ref country code: DE

Ref legal event code: R119

Ref document number: 502007015455

Country of ref document: DE

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: SE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180310

Ref country code: FI

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180309

REG Reference to a national code

Ref country code: CH

Ref legal event code: PL

REG Reference to a national code

Ref country code: NL

Ref legal event code: MM

Effective date: 20180401

REG Reference to a national code

Ref country code: AT

Ref legal event code: MM01

Ref document number: 869387

Country of ref document: AT

Kind code of ref document: T

Effective date: 20180309

GBPC Gb: european patent ceased through non-payment of renewal fee

Effective date: 20180309

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: CZ

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180309

REG Reference to a national code

Ref country code: BE

Ref legal event code: MM

Effective date: 20180331

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: NL

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180401

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: DE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20181002

Ref country code: PT

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20181211

Ref country code: AT

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180309

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: BE

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180331

Ref country code: GB

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180309

Ref country code: LI

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180331

Ref country code: CH

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180331

Ref country code: IT

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180309

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: FR

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180331

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: HU

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT; INVALID AB INITIO

Effective date: 20070309

REG Reference to a national code

Ref country code: ES

Ref legal event code: FD2A

Effective date: 20190904

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: ES

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20180310

Ref country code: CY

Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES

Effective date: 20170222

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: TR

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170222

PG25 Lapsed in a contracting state [announced via postgrant information from national office to epo]

Ref country code: IS

Free format text: LAPSE BECAUSE OF FAILURE TO SUBMIT A TRANSLATION OF THE DESCRIPTION OR TO PAY THE FEE WITHIN THE PRESCRIBED TIME-LIMIT

Effective date: 20170622
