EP2827049A3 - Scheinwerfer für ein blendungsfreies Fernlicht - Google Patents

Scheinwerfer für ein blendungsfreies Fernlicht Download PDF

Info

Publication number
EP2827049A3
EP2827049A3 EP14177370.5A EP14177370A EP2827049A3 EP 2827049 A3 EP2827049 A3 EP 2827049A3 EP 14177370 A EP14177370 A EP 14177370A EP 2827049 A3 EP2827049 A3 EP 2827049A3
Authority
EP
European Patent Office
Prior art keywords
light
entrance surface
adjacent
headlight
glare
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP14177370.5A
Other languages
English (en)
French (fr)
Other versions
EP2827049A2 (de
Inventor
Matthias Brendle
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Marelli Germany GmbH
Original Assignee
Automotive Lighting Reutlingen GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Family has litigation
First worldwide family litigation filed litigation Critical https://patents.darts-ip.com/?family=51211586&utm_source=google_patent&utm_medium=platform_link&utm_campaign=public_patent_search&patent=EP2827049(A3) "Global patent litigation dataset” by Darts-ip is licensed under a Creative Commons Attribution 4.0 International License.
Application filed by Automotive Lighting Reutlingen GmbH filed Critical Automotive Lighting Reutlingen GmbH
Publication of EP2827049A2 publication Critical patent/EP2827049A2/de
Publication of EP2827049A3 publication Critical patent/EP2827049A3/de
Withdrawn legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/141—Light emitting diodes [LED]
    • F21S41/143—Light emitting diodes [LED] the main emission direction of the LED being parallel to the optical axis of the illuminating device
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/141—Light emitting diodes [LED]
    • F21S41/147—Light emitting diodes [LED] the main emission direction of the LED being angled to the optical axis of the illuminating device
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/141—Light emitting diodes [LED]
    • F21S41/151—Light emitting diodes [LED] arranged in one or more lines
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/14—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source characterised by the type of light source
    • F21S41/141—Light emitting diodes [LED]
    • F21S41/151—Light emitting diodes [LED] arranged in one or more lines
    • F21S41/153—Light emitting diodes [LED] arranged in one or more lines arranged in a matrix
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/10—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by the light source
    • F21S41/19—Attachment of light sources or lamp holders
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F21S41/25—Projection lenses
    • F21S41/255—Lenses with a front view of circular or truncated circular outline
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F21S41/285—Refractors, transparent cover plates, light guides or filters not provided in groups F21S41/24 - F21S41/2805
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/20—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by refractors, transparent cover plates, light guides or filters
    • F21S41/29—Attachment thereof
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/30—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by reflectors
    • F21S41/32—Optical layout thereof
    • F21S41/33—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature
    • F21S41/331—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature the reflector consisting of complete annular areas
    • F21S41/333—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature the reflector consisting of complete annular areas with discontinuity at the junction between adjacent areas
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/30—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by reflectors
    • F21S41/32—Optical layout thereof
    • F21S41/33—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature
    • F21S41/334—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature the reflector consisting of patch like sectors
    • F21S41/336—Multi-surface reflectors, e.g. reflectors with facets or reflectors with portions of different curvature the reflector consisting of patch like sectors with discontinuity at the junction between adjacent areas
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/40—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by screens, non-reflecting members, light-shielding members or fixed shades
    • F21S41/43—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by screens, non-reflecting members, light-shielding members or fixed shades characterised by the shape thereof
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/40—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by screens, non-reflecting members, light-shielding members or fixed shades
    • F21S41/47—Attachment thereof
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S45/00—Arrangements within vehicle lighting devices specially adapted for vehicle exteriors, for purposes other than emission or distribution of light
    • F21S45/40—Cooling of lighting devices
    • F21S45/49—Attachment of the cooling means
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S41/00—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps
    • F21S41/60—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution
    • F21S41/65—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution by acting on light sources
    • F21S41/663—Illuminating devices specially adapted for vehicle exteriors, e.g. headlamps characterised by a variable light distribution by acting on light sources by switching light sources
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21S—NON-PORTABLE LIGHTING DEVICES; SYSTEMS THEREOF; VEHICLE LIGHTING DEVICES SPECIALLY ADAPTED FOR VEHICLE EXTERIORS
    • F21S45/00—Arrangements within vehicle lighting devices specially adapted for vehicle exteriors, for purposes other than emission or distribution of light
    • F21S45/40—Cooling of lighting devices
    • F21S45/47—Passive cooling, e.g. using fins, thermal conductive elements or openings

Landscapes

  • Engineering & Computer Science (AREA)
  • General Engineering & Computer Science (AREA)
  • Physics & Mathematics (AREA)
  • Microelectronics & Electronic Packaging (AREA)
  • Optics & Photonics (AREA)
  • Mathematical Physics (AREA)
  • Non-Portable Lighting Devices Or Systems Thereof (AREA)

Abstract

Vorgestellt wird ein Kraftfahrzeugscheinwerfer (10), mit einem einander paarweise benachbart angeordnete Lichtquellen (16.1, 16.2, 16.3) aufweisenden Lichtquellenfeld (16), wobei jede der Lichtquellen dazu eingerichtet ist und mit einem Sammellinsenfeld (22), das für jede der wenigstens drei Lichtquellen genau eine Sammellinse (22.1, 22.2, 22.3) aufweist, die der jeweiligen Lichtquelle dadurch zugeordnet ist, dass eine Lichteintrittsfläche dieser Sammellinse in dem von dieser Lichtquelle ausgehenden Lichtbündel liegt. Der Scheinwerfer zeichnet sich dadurch aus, dass er wenigstens eine Blende (24) aufweist, die auf der Lichteintrittsflächenseite von zwei einander direkt benachbart angeordneten Sammellinsen so angeordnet ist, dass sie die Lichteintrittsfläche der einen der zwei Sammellinsen gegen Licht abschattet, die der anderen der zwei einander direkt benachbart angeordneten Sammellinsen zugeordnet ist.

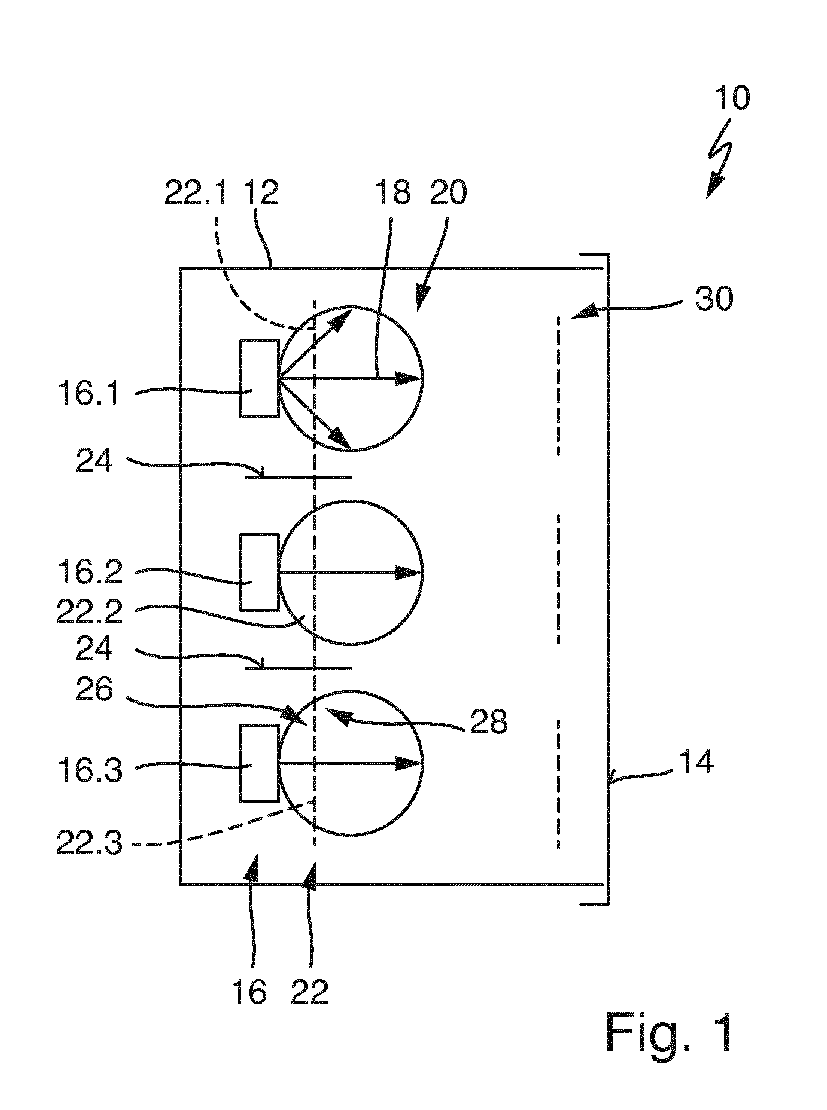

Figure imgaf001
EP14177370.5A 2013-07-18 2014-07-17 Scheinwerfer für ein blendungsfreies Fernlicht Withdrawn EP2827049A3 (de)

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
DE102013214116.5A DE102013214116C5 (de) 2013-07-18 2013-07-18 Scheinwerfer für ein blendungsfreies Fernlicht

Publications (2)

Publication Number Publication Date
EP2827049A2 EP2827049A2 (de) 2015-01-21
EP2827049A3 true EP2827049A3 (de) 2015-10-21

Family

ID=51211586

Family Applications (1)

Application Number Title Priority Date Filing Date
EP14177370.5A Withdrawn EP2827049A3 (de) 2013-07-18 2014-07-17 Scheinwerfer für ein blendungsfreies Fernlicht

Country Status (2)

Country Link
EP (1) EP2827049A3 (de)
DE (1) DE102013214116C5 (de)

Families Citing this family (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
FR3048059B1 (fr) * 2016-02-22 2022-08-05 Valeo Vision Dispositif de projection de faisceau lumineux muni d'une matrice de sources de lumiere, module d'eclairage et projecteur muni d'un tel dispositif
FR3048060B1 (fr) * 2016-02-22 2019-04-05 Valeo Vision Dispositif de projection de faisceau lumineux muni de sous-matrices de sources de lumiere, module d'eclairage et projecteur muni d'un tel dispositif
DE102016125420A1 (de) * 2016-12-22 2018-06-28 HELLA GmbH & Co. KGaA Beleuchtungsvorrichtung für ein Fahrzeug
WO2018172140A1 (en) * 2017-03-21 2018-09-27 Lumileds Holding B.V. Optical module and automotive frontlighting system for motor vehicle
JP6571734B2 (ja) 2017-09-04 2019-09-04 トヨタ自動車株式会社 車両用照明装置
EP3492804A1 (de) * 2017-12-04 2019-06-05 ZKW Group GmbH Kraftfahrzeugscheinwerfer und verfahren
DE102018106035A1 (de) * 2018-03-15 2019-09-19 HELLA GmbH & Co. KGaA Beleuchtungsvorrichtung für Fahrzeuge
FR3085739B1 (fr) * 2018-09-12 2021-06-25 Valeo Vision Module lumineux pour projecteur de vehicule automobile
DE102019104722A1 (de) 2019-02-25 2020-08-27 Automotive Lighting Reutlingen Gmbh Scheinwerfer mit einer Mehrzahl von Halbleiterlichtquellen und einem einstückigen Primäroptikfeld
DE102019108232A1 (de) * 2019-03-29 2020-10-01 Automotive Lighting Reutlingen Gmbh Teilfernlichtmodul für einen Kraftfahrzeugscheinwerfer
EP3767161A1 (de) * 2019-07-17 2021-01-20 ZKW Group GmbH Beleuchtungsvorrichtung für einen kraftfahrzeugscheinwerfer
CN112413530A (zh) * 2019-08-23 2021-02-26 华域视觉科技(上海)有限公司 一种微型车灯模组
DE102019124200A1 (de) * 2019-09-10 2021-03-11 HELLA GmbH & Co. KGaA Blendfreier Scheinwerfer und Kraftfahrzeug
FR3105349B1 (fr) * 2019-12-20 2022-03-04 Valeo Vision Dispositif d’éclairage et/ou de signalisation comprenant une pluralité d'éléments opaques.
KR20240039872A (ko) 2022-09-20 2024-03-27 현대모비스 주식회사 차량용 램프
FR3139773B1 (fr) * 2022-09-21 2024-11-08 Valeo Vision Module optique d’un système lumineux d’un véhicule automobile

Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4733335A (en) * 1984-12-28 1988-03-22 Koito Manufacturing Co., Ltd. Vehicular lamp
JPH0552882U (ja) * 1991-12-20 1993-07-13 タキロン株式会社 ドットマトリクス発光表示体用表面集光板
EP1577697A1 (de) * 2002-12-26 2005-09-21 Sanyo Electric Co., Ltd. Beleuchtungseinrichtung undbildanzeigeeinheit des projektionstyps
US20080030974A1 (en) * 2006-08-02 2008-02-07 Abu-Ageel Nayef M LED-Based Illumination System
DE102008013603A1 (de) * 2008-03-11 2009-09-17 Automotive Lighting Reutlingen Gmbh Lichtmodul für eine Beleuchtungseinrichtung
EP2357399A1 (de) * 2010-02-16 2011-08-17 Koito Manufacturing Co., Ltd. Optische Einheit

Family Cites Families (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US2859334A (en) * 1954-09-09 1958-11-04 Edwin F Guth Company Louvers
JPS61181002A (ja) * 1985-02-05 1986-08-13 株式会社小糸製作所 照明装置
DE10314524A1 (de) * 2003-03-31 2004-10-28 Osram Opto Semiconductors Gmbh Scheinwerfer und Scheinwerferelement

Patent Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US4733335A (en) * 1984-12-28 1988-03-22 Koito Manufacturing Co., Ltd. Vehicular lamp
JPH0552882U (ja) * 1991-12-20 1993-07-13 タキロン株式会社 ドットマトリクス発光表示体用表面集光板
EP1577697A1 (de) * 2002-12-26 2005-09-21 Sanyo Electric Co., Ltd. Beleuchtungseinrichtung undbildanzeigeeinheit des projektionstyps
US20080030974A1 (en) * 2006-08-02 2008-02-07 Abu-Ageel Nayef M LED-Based Illumination System
DE102008013603A1 (de) * 2008-03-11 2009-09-17 Automotive Lighting Reutlingen Gmbh Lichtmodul für eine Beleuchtungseinrichtung
EP2357399A1 (de) * 2010-02-16 2011-08-17 Koito Manufacturing Co., Ltd. Optische Einheit

Also Published As

Publication number Publication date
DE102013214116A1 (de) 2015-01-22
DE102013214116B4 (de) 2015-05-07
DE102013214116C5 (de) 2018-07-05
EP2827049A2 (de) 2015-01-21

Similar Documents

Publication Publication Date Title
EP2799762A3 (de) Lichtmodul für einen Kraftfahrzeugscheinwerfer
EP2884157A3 (de) Kraftfahrzeugscheinwerfer
WO2017157624A1 (de) Scheinwerfer für ein kraftfahrzeug
EP2592333A3 (de) Lichtleitelement für einen Kraftfahrzeugscheinwerfer
EP2306074A3 (de) Kraftfahrzeugscheinwerfer mit einem Halbleiterquellen, eine Primäroptik und eine Sekundäroptik aufweisenden Lichtmodul
EP2789900A3 (de) Lichtmodul für eine Kraftfahrzeugbeleuchtungseinrichtung
EP2924479A3 (de) Lichtkopplungsschutz zwischen Lichtfunktionen
EP2442013A3 (de) Beleuchtungseinrichtung für ein Kraftfahrzeug mit einer Halbleiterlichtquelle und einem Reflektor
DE112007003389T5 (de) Verfahren und Vorrichtung zur Beleuchtung unter Verwendung einer Leuchtdiode als Lichtquelle
EP2682671A3 (de) Lichtmodul
AT518551A4 (de) Kraftfahrzeugbeleuchtungsvorrichtung
EP2505910A3 (de) Kraftfahrzeugscheinwerfer mit einer Halbleiterlichtquelle
DE102015104514A1 (de) Beleuchtungsvorrichtung für Fahrzeuge
EP2693109A3 (de) Lichtmodul
EP2770247A3 (de) Kraftfahrzeugleuchte mit einem homogen hell leuchtenden Erscheinigungsbild
DE102013214116A1 (de) Scheinwerfer für ein blendungsfreies Fernlicht
AT515012A1 (de) Beleuchtungsvorrichtung für einen Kraftfahrzeugscheinwerfer
DE202009016729U1 (de) Beleuchtungseinrichtung mit mindestens einer LED
EP2674666A3 (de) Beleuchtungseinrichtung eines Kraftfahrzeugs
WO2013011045A2 (de) Anordnung zur lichtabgabe
DE102013016277A1 (de) Scheinwerfer, Kraftfahrzeug mit einem Scheinwerfer und Verfahren zum Betreiben eines Scheinwerfers
EP2871411B2 (de) Optisches Element für eine Leuchte, sowie Leuchte
EP2639107A3 (de) Beleuchtungseinrichtung, insbesondere Konturbeleuchtung für ein Kraftfahrzeug
WO2017000005A1 (de) Leuchtmodul für einen fahrzeugscheinwerfer
WO2014195383A1 (de) Lampenvorsatz

Legal Events

Date Code Title Description
17P Request for examination filed

Effective date: 20140717

AK Designated contracting states

Kind code of ref document: A2

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

AX Request for extension of the european patent

Extension state: BA ME

PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

PUAL Search report despatched

Free format text: ORIGINAL CODE: 0009013

AK Designated contracting states

Kind code of ref document: A3

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

AX Request for extension of the european patent

Extension state: BA ME

RIC1 Information provided on ipc code assigned before grant

Ipc: F21S 8/10 20060101AFI20150915BHEP

R17P Request for examination filed (corrected)

Effective date: 20160421

RBV Designated contracting states (corrected)

Designated state(s): AL AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HR HU IE IS IT LI LT LU LV MC MK MT NL NO PL PT RO RS SE SI SK SM TR

17Q First examination report despatched

Effective date: 20170508

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: THE APPLICATION IS DEEMED TO BE WITHDRAWN

18D Application deemed to be withdrawn

Effective date: 20200630
