Abstract

L'invention se rapporte à un fermoir de bracelet comprenant une première lame, au moins une deuxième lame articulée par une de ses extrémités à la première lame et articulée par son autre extrémité à une coiffe, et des moyens de verrouillage de la deuxième lame en position fermée sur la première lame. Selon l'invention, la coiffe comprend une ouverture agencée pour recevoir au moins un insert comprenant une décoration.

Figure imgaf001
The invention relates to a bracelet clasp comprising a first blade, at least a second blade articulated by one of its ends to the first blade and articulated by its other end to a cap, and means for locking the second blade in closed position on the first blade. According to the invention, the cap comprises an opening arranged to receive at least one insert comprising a decoration.
Figure imgaf001

Description

Domaine de l'inventionField of the invention

L'invention se rapporte à un fermoir de bracelet, et notamment aux fermoirs déployant pour bracelet de montres.The invention relates to a bracelet clasp, and in particular to deploying clasps for a watch bracelet.

Arrière-plan de l'inventionBackground of the invention

En horlogerie, il est connu d'utiliser différents types de boucles ou de fermoirs pour attacher la montre au poignet. Il est connu, en horlogerie haut de gamme, de former une partie décorative avec la boucle, cette dernière portant un logo ou le nom de la marque. Le logo ou la marque peut être intégré à la boucle sous la forme d'une squelettisation de la boucle, de manière à obtenir une esthétique allégée de la boucle et permettre une meilleure visibilité du bracelet.In watchmaking, it is known to use different types of buckles or clasps to attach the watch to the wrist. It is known, in high-end watchmaking, to form a decorative part with the buckle, the latter bearing a logo or the name of the brand. The logo or the brand can be integrated into the buckle in the form of a skeletonization of the buckle, so as to obtain a lighter aesthetic of the buckle and allow better visibility of the bracelet.

Un inconvénient de ce fermoir est que la boucle est affaiblie mécaniquement par la squelettisation. En effet, la boucle est moins rigide et peut être facilement déformée. De plus, ce type de fermoir présente aussi comme inconvénient d'abimer le bracelet en cuir lors du passage dans la boucle, les aspérités de la boucle pouvant accrocher ou griffer le cuir.A disadvantage of this clasp is that the buckle is mechanically weakened by the skeletonization. Indeed, the buckle is less rigid and can be easily deformed. In addition, this type of clasp also has the drawback of damaging the leather strap when passing through the buckle, the roughness of the buckle being able to catch or scratch the leather.

Un autre inconvénient de ce fermoir est qu'il est onéreux à réaliser. En effet, la squelettisation est une opération longue et coûteuse et cette dernière est généralement réalisée en métal précieux. De plus, les métaux précieux utilisés pour ce type de réalisation sont sujets à une usure plus rapide que les métaux classiquement utilisés. Enfin, la finesse qu'il est possible d'obtenir avec une squelettisation ne permet pas d'obtenir une réalisation détaillée de la boucle.Another drawback of this clasp is that it is expensive to make. Indeed, skeletonization is a long and expensive operation and the latter is generally carried out in precious metal. In addition, the precious metals used for this type of production are subject to more rapid wear than the metals conventionally used. Finally, the fineness that it is possible to obtain with skeletonization does not make it possible to obtain a detailed realization of the loop.

Résumé de l'inventionSummary of the invention

Un but de la présente invention est de pallier tout ou partie des inconvénients cités précédemment en fournissant un fermoir de bracelet comprenant une première lame, au moins une deuxième lame articulée par une de ses extrémités à la première lame et articulée par son autre extrémité à une coiffe, et des moyens de verrouillage de la deuxième lame en position fermée sur la première lame. Selon l'invention, la coiffe comprend une ouverture agencée pour recevoir au moins un insert présentant une décoration.An object of the present invention is to overcome all or part of the aforementioned drawbacks by providing a bracelet clasp comprising a first blade, at least a second blade articulated by one of its ends to the first blade and articulated by its other end to a cover, and means for locking the second blade in the closed position on the first blade. According to the invention, the cap comprises an opening arranged to receive at least one insert having a decoration.

Conformément à d'autres variantes avantageuses de l'invention :

  • l'insert est transparent ;
  • l'insert est réalisé en une matière minérale telle que le verre ou le saphir ;
  • l'ouverture comprend deux inserts, la décoration étant positionnée entre les deux inserts ;
  • ledit insert est assemblé dans l'ouverture par collage ou chassage ;
  • ledit décor est obtenu par décalque, tomographie, métallisation ou gravage laser ;
  • la décoration est un logo, une inscription, une marque, ou une combinaison de ces éléments ;
  • la coiffe présente une forme annulaire.
In accordance with other advantageous variants of the invention:
  • the insert is transparent;
  • the insert is made of a mineral material such as glass or sapphire;
  • the opening comprises two inserts, the decoration being positioned between the two inserts;
  • said insert is assembled in the opening by gluing or driving;
  • said decoration is obtained by decal, tomography, metallization or laser engraving;
  • the decoration is a logo, an inscription, a mark, or a combination of these elements;
  • the cap has an annular shape.

L'invention concerne également une montre-bracelet comportant un bracelet muni d'un fermoir conforme à l'invention.The invention also relates to a wristwatch comprising a bracelet provided with a clasp in accordance with the invention.

Description sommaire des dessinsBrief description of the drawings

D'autres caractéristiques et avantages de l'invention apparaîtront plus clairement à la lecture de la description suivante d'un mode de réalisation particulier de l'invention, donné à titre de simple exemple illustratif et non limitatif, et des figures annexées, parmi lesquelles :

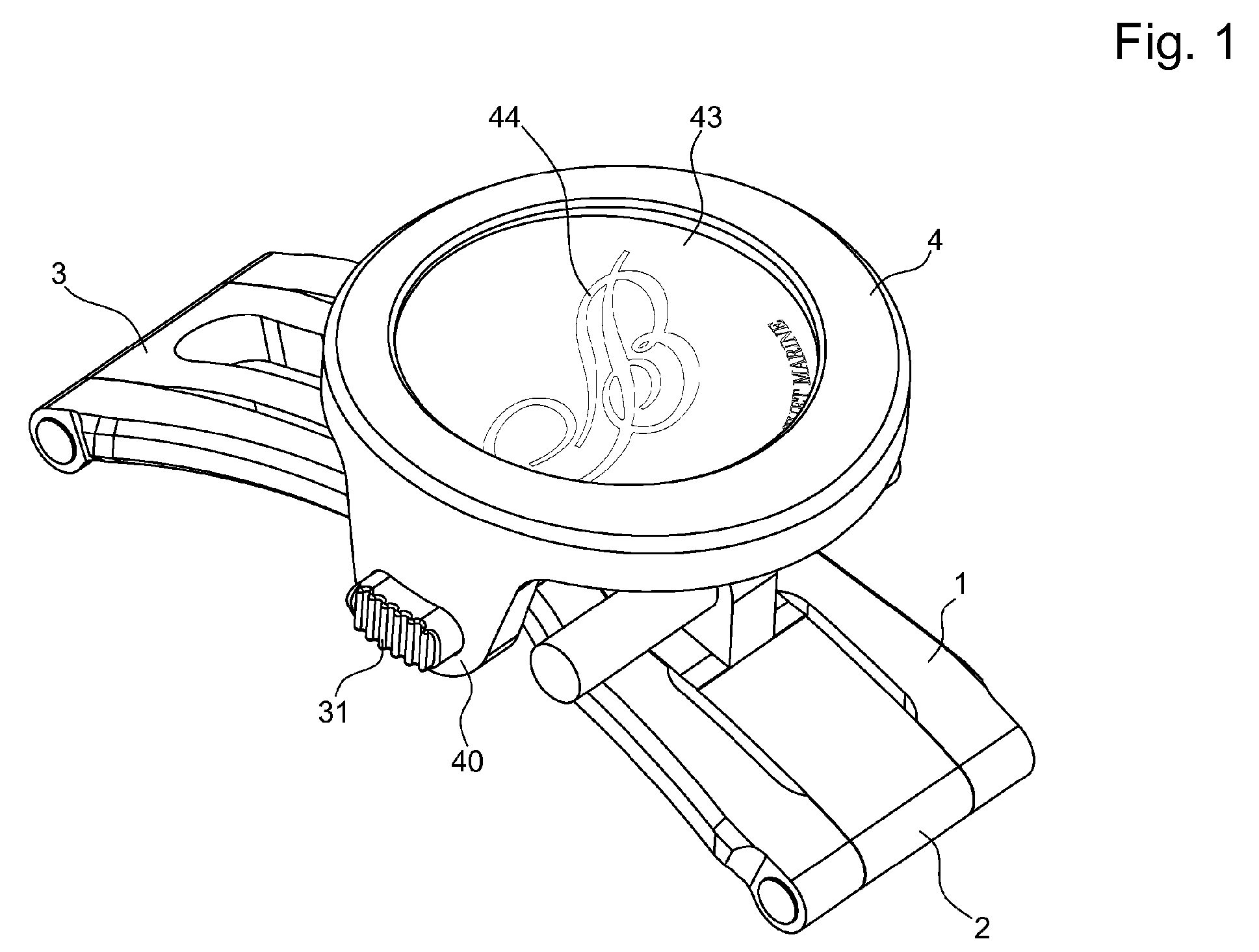

  • la figure 1 est une vue en perspective d'un fermoir conforme à l'invention, en position fermée ;
  • la figure 2 est une vue en perspective d'un fermoir conforme à l'invention, en position déployée ;
  • la figure 3 est une vue éclatée d'un fermoir conforme à l'invention ;
  • la figure 4 est une vue en coupe longitudinale d'un fermoir conforme à l'invention.
Other characteristics and advantages of the invention will emerge more clearly on reading the following description of a particular embodiment of the invention, given by way of simple illustrative and non-limiting example, and the appended figures, among which :
  • the figure 1 is a perspective view of a clasp according to the invention, in the closed position;
  • the figure 2 is a perspective view of a clasp according to the invention, in the deployed position;
  • the figure 3 is an exploded view of a clasp according to the invention;
  • the figure 4 is a longitudinal sectional view of a clasp according to the invention.

Description détaillée des modes de réalisation préférésDetailed description of the preferred embodiments

Un fermoir pour bracelet va maintenant être décrit dans ce qui suit faisant référence conjointement aux figures 1, 2, 3 et 4.A clasp for a bracelet will now be described in the following with reference in conjunction to figures 1 , 2 , 3 and 4 .

Les figures 1 et 2 sont des vues en perspective du fermoir de bracelet qui comprend une première lame rigide 1 présentant deux longerons 1a et 1b reliés entre eux par un pont. Une première extrémité 10 de cette lame est articulée à une première extrémité 20 d'une deuxième lame 2 dépliante par le biais d'un arbre 12. Cette deuxième lame 2 est configurée pour recevoir un premier brin du bracelet au niveau de sa deuxième extrémité 21 au moyen d'un arbre 23.The figures 1 and 2 are perspective views of the bracelet clasp which comprises a first rigid blade 1 having two side members 1a and 1b interconnected by a bridge. A first end 10 of this blade is articulated to a first end 20 of a second folding blade 2 by means of a shaft 12. This second blade 2 is configured to receive a first strand of the bracelet at its second end 21. by means of a tree 23.

L'autre extrémité 11 de la première lame 1 est articulée à une première extrémité 30 d'une troisième lame 3 dépliante par le biais d'un arbre 13, la troisième lame 3 recouvrant partiellement la deuxième extrémité 21 de la deuxième lame 2 lorsque le fermoir est en position fermée.The other end 11 of the first blade 1 is articulated to a first end 30 of a third folding blade 3 by means of a shaft 13, the third blade 3 partially covering the second end 21 of the second blade 2 when the clasp is in the closed position.

De la première extrémité 30 de la troisième lame 3 émergent des première et seconde branches 32 et 33 mobiles en translations. Selon une variante de l'invention, non représentée sur les figures, la première lame 1 peut être prévue pleine et présenter un réceptacle comprenant des moyens de verrouillage configurés pour recevoir les branches 32 et 33.From the first end 30 of the third blade 3 emerge first and second branches 32 and 33 movable in translations. According to a variant of the invention, not shown in the figures, the first blade 1 can be provided as solid and have a receptacle comprising locking means configured to receive the branches 32 and 33.

Le fermoir comprend également une coiffe 4, articulée aux branches 32 et 33, munie de premier et second rabats 40 s'étendant perpendiculairement par rapport à la coiffe 4. Les rabats 40 présentent des trous 41 configurés pour recevoir des poussoirs 31 pour réaliser l'articulation entre les branches 32 et 33 et la chape 4. Tels que représentés à la figure 3, les poussoirs 31 font corps avec les première et seconde branches 32 et 33 et matérialisent la deuxième extrémité de la troisième lame 3.The clasp also comprises a cap 4, articulated to the branches 32 and 33, provided with first and second flaps 40 extending perpendicularly relative to the cap 4. The flaps 40 have holes 41 configured to receive pushers 31 to achieve the articulation between the branches 32 and 33 and the yoke 4. As shown in figure 3 , the pushers 31 are integral with the first and second branches 32 and 33 and materialize the second end of the third blade 3.

La chape 4 présente des moyens de maintien d'un second brin de bracelet, tels qu'un pion 5 comme illustré sur la figure 4. Un mécanisme de verrouillage est arrangé pour maintenir accrochée la troisième lame 3 sur la première lame 1 quand aucune pression n'est exercée simultanément sur les poussoirs 31. A cet effet, les longerons 1a et 1b de la première lame 1 présentent respectivement des crochets fixes configurés pour coopérer respectivement avec des crochets complémentaires disposés sur les branches 32 et 33 (crochets non visibles sur les figures).The yoke 4 has means for holding a second bracelet strand, such as a pin 5 as illustrated in figure 4 . A locking mechanism is arranged to keep the third blade 3 hooked on the first blade 1 when no pressure is exerted simultaneously on the pushers 31. For this purpose, the side members 1a and 1b of the first blade 1 respectively have fixed hooks configured to cooperate respectively with complementary hooks arranged on the branches 32 and 33 (hooks not visible in the figures).

Selon l'invention, la coiffe 4 comprend une ouverture traversante 42 qui est agencé pour recevoir un insert 43 muni d'une décoration 44. Par décoration, on entend un logo, une inscription, une marque, ou une combinaison de ces éléments. La décoration 44 peut être est obtenue par décalque, tomographie, métallisation, ou encore par une gravure au laser.According to the invention, the cap 4 comprises a through opening 42 which is arranged to receive an insert 43 provided with a decoration 44. By decoration is meant a logo, an inscription, a mark, or a combination of these elements. The decoration 44 can be obtained by decal, tomography, metallization, or even by laser engraving.

La coiffe 4 peut être réalisée dans tout type de matériau. Dans le cadre de l'invention on préféra utiliser un métal précieux, le fermoir étant destiné à des pièces d'horlogerie haut de gamme/de luxe.The cap 4 can be made from any type of material. In the context of the invention, it was preferred to use a precious metal, the clasp being intended for high-end / luxury timepieces.

Comme on peut l'observer sur les figures, la coiffe 4 présente une forme annulaire, l'ouverture 42 présente une forme circulaire et l'insert 43 se présente sous la forme d'un disque. La forme n'est bien évidemment pas limitative, et un homme du métier n'aura aucune difficulté pour former une ouverture rectangulaire et l'insert complémentaire par exemple. L'ouverture 42 comprend un rebord 420 contre lequel vient reposer l'insert 43, le rebord étant de dimensions légèrement supérieures aux dimensions de l'ouverture pour offrir un bon maintien de l'insert 43et ne pas nuire à l'esthétique du fermoir.As can be seen in the figures, the cap 4 has an annular shape, the opening 42 has a circular shape and the insert 43 is in the form of a disc. The shape is obviously not limiting, and a person skilled in the art will have no difficulty in forming a rectangular opening and the complementary insert for example. The opening 42 comprises a rim 420 against which the insert 43 rests, the rim being of dimensions slightly greater than the dimensions of the opening in order to provide good support for the insert 43 and not to harm the aesthetics of the clasp.

De manière avantageuse, l'insert 43 est prévu transparent de manière à pouvoir distinguer le décor 44 depuis les deux faces de l'insert 43. Un insert en matière non transparente est également envisageable, comme un insert en nacre par exemple.Advantageously, the insert 43 is provided transparent so as to be able to distinguish the decoration 44 from the two faces of the insert 43. An insert in a non-transparent material is also possible, such as a mother-of-pearl insert for example.

De préférence, une matière minérale telle que le verre ou le saphir est utilisée pour former l'insert. Le saphir présente notamment pour avantage d'être plus résistant aux rayures.Preferably, a mineral material such as glass or sapphire is used to form the insert. The particular advantage of sapphire is that it is more resistant to scratches.

Selon un mode de réalisation avantageux, l'insert présente une face supérieure bombée (face par laquelle l'insert est mis en place dans l'ouverture) de manière à être légèrement saillant et ainsi limiter l'usure de la coiffe 4.According to an advantageous embodiment, the insert has a domed upper face (face through which the insert is placed in the opening) so as to be slightly protruding and thus limit the wear of the cap 4.

Selon un mode de réalisation particulier de l'invention, l'ouverture 42 peut recevoir deux inserts 43, le décor 44 pouvant alors être positionné entre les deux inserts 43, ou sur l'une des faces de l'un des inserts 43, de préférence la face inférieure du premier insert ou la face supérieure du deuxième insert lorsque l'on observe la coiffe 4 en position fermée. Il est également envisageable de loger un élément décoratif entre les deux inserts 43.According to a particular embodiment of the invention, the opening 42 can receive two inserts 43, the decoration 44 then being able to be positioned between the two inserts 43, or on one of the faces of one of the inserts 43, of preferably the lower face of the first insert or the upper face of the second insert when the cap 4 is observed in the closed position. It is also conceivable to house a decorative element between the two inserts 43.

L'insert 43 est assemblé et maintenu en place dans l'ouverture 42 par collage ou chassage, un joint 45 peut être inséré dans la paroi de la coiffe 4 pour offrir un meilleur maintien de l'insert 43. Tel qu'illustré, l'insert 43 est monté par le dessous de la coiffe 4 mais pourrait aussi bien être monté depuis le dessus en adaptant la construction de la coiffe 4.The insert 43 is assembled and held in place in the opening 42 by gluing or driving, a seal 45 can be inserted into the wall of the cover 4 to provide better retention of the insert 43. As illustrated, the The insert 43 is mounted from below of the cover 4 but could equally well be mounted from above by adapting the construction of the cover 4.

Un tel fermoir permet d'avoir une coiffe avec une rigidité mécanique accrue et permet d'éviter d'abimer les bracelets en cuir. Il permet également d'avoir une excellente définition/résolution de la décoration tout en réduisant le coût de fabrication.Such a clasp makes it possible to have a cap with increased mechanical rigidity and makes it possible to avoid damaging the leather bracelets. It also makes it possible to have an excellent definition / resolution of the decoration while reducing the manufacturing cost.

Enfin, un tel fermoir permet de personnaliser la coiffe selon le souhait du porteur, par exemple inscrire ses initiales sur l'insert, et de changer l'insert au besoin, en cas de dommage par exemple.Finally, such a clasp makes it possible to personalize the cap according to the wishes of the wearer, for example to write his initials on the insert, and to change the insert if necessary, in the event of damage for example.

Bien entendu, la présente invention ne se limite pas à l'exemple illustré mais est susceptible de diverses variantes et modifications qui apparaîtront à l'homme de l'art.Of course, the present invention is not limited to the example illustrated but is susceptible of various variants and modifications which will appear to those skilled in the art.

NOMENCLATURENOMENCLATURE

  • 1. Première lame,1. First blade,
  • 10. Première extrémité de la première lame,10. First end of the first blade,
  • 11. Seconde extrémité de la première lame11. Second end of the first blade
  • 12, 13. Arbre,12, 13. Tree,
  • 2. Deuxième lame,2. Second blade,
  • 20. Première extrémité de la deuxième lame,20. First end of the second blade,
  • 21. Seconde extrémité de la deuxième lame,21. Second end of the second blade,
  • 3. Troisième lame,3. Third blade,
  • 30. Première extrémité de la troisième lame,30. First end of the third blade,
  • 32,33. Branches,32.33. Branches,
  • 31. Poussoirs31. Push buttons
  • 320,330. Poussoirs,320,330. Pushers,
  • 4. Coiffe,4. Headdress,
  • 40. Rabats de la coiffe,40. Headdress flaps,
  • 41. Trous,41. Holes,
  • 42. Arbre,42. Tree,
  • 43. Insert,43. Insert,
  • 44. Décoration,44. Decoration,
  • 45. Joint,45. Seal,
  • 5. Pion.5. Pawn.

Claims (9)

Fermoir de bracelet comprenant une première lame (1), au moins une deuxième lame (3) articulée par une de ses extrémités (30) à la première lame (1) et articulée par son autre extrémité à une coiffe (4), et des moyens de verrouillage de la deuxième lame (2) en position fermée sur la première lame (1), caractérisé en ce que la coiffe (4) comprend une ouverture (40) agencée pour recevoir au moins un insert (43) comprenant une décoration (44).Bracelet clasp comprising a first blade (1), at least a second blade (3) articulated by one of its ends (30) to the first blade (1) and articulated by its other end to a cap (4), and means for locking the second blade (2) in the closed position on the first blade (1), characterized in that the cap (4) comprises an opening (40) arranged to receive at least one insert (43) comprising a decoration ( 44). Fermoir de bracelet selon la revendication 1, caractérisé en ce que l'insert (43) est transparent.Bracelet clasp according to Claim 1, characterized in that the insert (43) is transparent. Fermoir de bracelet selon l'une quelconque des revendications 1 ou 2, caractérisée en ce que l'insert (43) est réalisé en une matière minérale telle que le verre ou le saphir.Bracelet clasp according to any one of claims 1 or 2, characterized in that the insert (43) is made of a mineral material such as glass or sapphire. Fermoir de bracelet selon l'une quelconque des revendications 1 à 3, caractérisée en ce que l'ouverture comprend deux inserts (43), la décoration (44) étant positionnée entre les deux inserts (43).Bracelet clasp according to any one of claims 1 to 3, characterized in that the opening comprises two inserts (43), the decoration (44) being positioned between the two inserts (43). Fermoir de bracelet selon l'une quelconque des revendications 1 à 4, caractérisé en ce que ledit insert (43) est assemblé dans l'ouverture (42) par collage ou chassage.Bracelet clasp according to any one of claims 1 to 4, characterized in that said insert (43) is assembled in the opening (42) by gluing or driving. Fermoir de bracelet selon la revendication 5, caractérisé en ce que la décoration (44) est obtenu par décalque, tomographie, métallisation ou gravage laser.Bracelet clasp according to Claim 5, characterized in that the decoration (44) is obtained by transfer, tomography, metallization or laser engraving. Fermoir de bracelet selon l'une quelconque des revendications 1 à 6, caractérisé en ce que la décoration (44) est un logo, une inscription, une marque, ou une combinaison de ces éléments.Bracelet clasp according to any one of claims 1 to 6, characterized in that the decoration (44) is a logo, an inscription, a mark, or a combination of these elements. Fermoir de bracelet selon l'une quelconque des revendications 1 à 7, caractérisé en ce que la coiffe (4) présente une forme annulaire.Bracelet clasp according to any one of claims 1 to 7, characterized in that the cap (4) has an annular shape. Montre-bracelet comportant un bracelet muni d'un fermoir selon l'une des revendications précédentes.Wristwatch comprising a bracelet provided with a clasp according to one of the preceding claims.
