WO2006112089A1 - バインダー樹脂組成物、及び、無機微粒子分散ペースト組成物 - Google Patents
バインダー樹脂組成物、及び、無機微粒子分散ペースト組成物 Download PDFInfo
- Publication number
- WO2006112089A1 WO2006112089A1 PCT/JP2005/023401 JP2005023401W WO2006112089A1 WO 2006112089 A1 WO2006112089 A1 WO 2006112089A1 JP 2005023401 W JP2005023401 W JP 2005023401W WO 2006112089 A1 WO2006112089 A1 WO 2006112089A1
- Authority
- WO
- WIPO (PCT)
- Prior art keywords
- inorganic fine
- meth
- fine particle
- paste composition
- weight
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Ceased
Links
Classifications
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L33/00—Compositions of homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical, or of salts, anhydrides, esters, amides, imides or nitriles thereof; Compositions of derivatives of such polymers
- C08L33/04—Homopolymers or copolymers of esters
- C08L33/14—Homopolymers or copolymers of esters of esters containing halogen, nitrogen, sulfur, or oxygen atoms in addition to the carboxy oxygen
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
- C08F220/00—Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical or a salt, anhydride ester, amide, imide or nitrile thereof
- C08F220/02—Monocarboxylic acids having less than ten carbon atoms; Derivatives thereof
- C08F220/10—Esters
- C08F220/12—Esters of monohydric alcohols or phenols
- C08F220/14—Methyl esters, e.g. methyl (meth)acrylate
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
- C08F220/00—Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical or a salt, anhydride ester, amide, imide or nitrile thereof
- C08F220/02—Monocarboxylic acids having less than ten carbon atoms; Derivatives thereof
- C08F220/10—Esters
- C08F220/12—Esters of monohydric alcohols or phenols
- C08F220/16—Esters of monohydric alcohols or phenols of phenols or of alcohols containing two or more carbon atoms
- C08F220/18—Esters of monohydric alcohols or phenols of phenols or of alcohols containing two or more carbon atoms with acrylic or methacrylic acids
- C08F220/1804—C4-(meth)acrylate, e.g. butyl (meth)acrylate, isobutyl (meth)acrylate or tert-butyl (meth)acrylate
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
- C08F220/00—Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical or a salt, anhydride ester, amide, imide or nitrile thereof
- C08F220/02—Monocarboxylic acids having less than ten carbon atoms; Derivatives thereof
- C08F220/10—Esters
- C08F220/26—Esters containing oxygen in addition to the carboxy oxygen
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
- C08F290/00—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups
- C08F290/02—Macromolecular compounds obtained by polymerising monomers on to polymers modified by introduction of aliphatic unsaturated end or side groups on to polymers modified by introduction of unsaturated end groups
- C08F290/06—Polymers provided for in subclass C08G
- C08F290/062—Polyethers
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08K—Use of inorganic or non-macromolecular organic substances as compounding ingredients
- C08K3/00—Use of inorganic substances as compounding ingredients
- C08K3/18—Oxygen-containing compounds, e.g. metal carbonyls
- C08K3/20—Oxides; Hydroxides
- C08K3/22—Oxides; Hydroxides of metals
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B82—NANOTECHNOLOGY
- B82Y—SPECIFIC USES OR APPLICATIONS OF NANOSTRUCTURES; MEASUREMENT OR ANALYSIS OF NANOSTRUCTURES; MANUFACTURE OR TREATMENT OF NANOSTRUCTURES
- B82Y30/00—Nanotechnology for materials or surface science, e.g. nanocomposites
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08K—Use of inorganic or non-macromolecular organic substances as compounding ingredients
- C08K5/00—Use of organic ingredients
- C08K5/04—Oxygen-containing compounds
- C08K5/05—Alcohols; Metal alcoholates
- C08K5/053—Polyhydroxylic alcohols
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L33/00—Compositions of homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical, or of salts, anhydrides, esters, amides, imides or nitriles thereof; Compositions of derivatives of such polymers
- C08L33/04—Homopolymers or copolymers of esters
- C08L33/06—Homopolymers or copolymers of esters of esters containing only carbon, hydrogen and oxygen, which oxygen atoms are present only as part of the carboxyl radical
Definitions
- the present invention relates to a binder resin composition used for an inorganic fine particle dispersed paste composition having excellent thixotropy, excellent storage stability, and capable of low-temperature firing with little change in screen printability over time, and
- the present invention relates to an inorganic fine particle dispersed paste composition.
- paste compositions in which inorganic fine particles such as conductive powder and ceramic powder are dispersed in a resin binder have been used to obtain sintered bodies having various shapes.
- a phosphor paste composition in which a phosphor is dispersed in a resin binder as inorganic fine particles is used for PDP (Plasma Display Panel), FED (Field Emission Display), 3 ⁇ 4 ⁇ uri (Suriace Conduction Electron Emission Display), etc.
- PDP Plasma Display Panel
- FED Field Emission Display
- 3 ⁇ 4 ⁇ uri Suriace Conduction Electron Emission Display
- This PDP is a display in which a phosphor is excited to emit light by ultraviolet rays generated by gas discharge, and a display operation is performed.
- an ultraviolet-excited phosphor layer is provided in the discharge space, and a color different from the emission color of the discharge gas can be displayed by the discharge excitation of the phosphor layer.
- a color display PDP has phosphor layers of three colors of red (R), green (G), and blue (B).
- each phosphor layer of R, G, and B has phosphor paste yarns composed mainly of powdered phosphor particles and ethyl cellulose for each color, for example, screen printing. It is formed by firing after processing into a predetermined shape by a method, a coating method using a doctor blade, a casting method for processing into a sheet shape, or the like.
- the screen printing method is suitable for mass production.
- ethyl cellulose has poor thermal decomposability and requires high temperatures to completely remove organic components, and binder resin compositions having excellent low temperature decomposability have been developed.
- Patent Document 1 a phosphor paste composition comprising a specific resin binder and a phosphor is applied onto a substrate by a screen printing method, and after application, pre-bagged to remove the organic solvent, R, G, and B phosphor layers are exposed and developed, and then fired. A method of forming is disclosed! Speak.
- Patent Document 2 a phosphor paste composition on a film containing phosphor particles, a (meth) acrylic resin binder, glycerin-1,2 diacetyl 3 monolaurate is transferred onto a substrate and transferred. A method of forming a phosphor layer by firing the prepared resin composition layer is disclosed.
- the paste composition has a sufficiently low viscosity at the time of coating, and is easy to apply, while the viscosity at the time of standing and drying after coating is low.
- thixotropy means, for example, when the viscosity is evaluated with a rotational viscometer, the viscosity decreases as the rotational speed increases (displacement with a high strain rate), and the rotational speed decreases (displacement with a low strain rate). ) And viscosity increase.
- Patent Document 3 discloses a paste composition containing silica fine particles for the purpose of improving thixotropy.
- silica fine particles are produced by using a sol-gel method or the like based on a raw material such as tetraethoxysilane, reactive functional groups exist on the surface, so that the silica fine particles are likely to aggregate and have poor dispersibility.
- the storage stability is poor and the screen printability deteriorates over time.
- Patent Document 1 Japanese Patent Laid-Open No. 9-208640
- Patent Document 2 Japanese Patent Laid-Open No. 2003-96305
- Patent Document 3 Japanese Patent Laid-Open No. 2000-144124
- the present invention is excellent in thixotropy, storage stability, and script. It is an object of the present invention to provide a binder resin composition and an inorganic fine particle-dispersed paste composition used in an inorganic fine particle-dispersed paste composition that can be fired at a low temperature with little change in the printability with time.
- the present invention is a binder resin composition containing a binder comprising (meth) acrylic resin, an organic compound having three or more hydroxyl groups, and an organic solvent, wherein the hydroxyl group has three or more hydroxyl groups.
- the binder resin composition having an organic compound content of 0.1 to 15 parts by weight with respect to 100 parts by weight of the (meth) acrylic resin.
- a binder resin composition comprising a (meth) acrylic resin, an organic compound having three or more hydroxyl groups, and an organic solvent has a hydrogen bond. This makes it possible to easily prepare a paste composition that exhibits high thixotropy and that has improved yarn storage properties and storage stability by adding various additives. As a result, the present invention has been completed.
- the binder resin composition of the present invention contains a noinder made of (meth) acrylic resin.
- the (meth) acrylic resin is not particularly limited.
- a homopolymer of (meth) acrylate monomer, a copolymer of two or more (meth) acrylate monomers, (meth) acrylate Examples include rosin which also serves as a polymarker such as a copolymer of a monomer and a bull monomer other than a (meth) acrylate monomer. Further, it may be a mixed resin of rosin having these polymer forces and rosin having a polymer force other than these polymers.
- a copolymer of a (meth) acrylate monomer and a polyoxyalkylene (meth) acrylate monomer a homopolymer of a (meth) acrylate monomer, a (meth) acrylate monomer and a polyoxyalkylene ( )
- a mixture of a copolymer with an acrylate monomer and the like is preferably used.
- the (meta) acrylate refers to acrylate or metatalate.
- the (meth) acrylate monomer is not particularly limited. For example, methyl (meth) acrylate , Ethyl (meth) acrylate, propyl (meth) acrylate, n-butyl (meth) acrylate, tert-butyl (meth) acrylate, isobutyl (meth) acrylate, cyclohexyl (meth) acrylate , 2-Ethylhexyl (meth) acrylate, Isobornyl (meth) acrylate, n-Stearyl (meth) acrylate, Benzyl (meth) acrylate, Glycerol (meth) acrylate, 2-Hydroxyethyl (Meth) acrylate, hydroxypropyl mono (meth) acrylate, glycerin di (meth) acrylate, 2-hydroxy-1-3- allyloyloxip pill (meth) acrylate, among others, carbon
- methyl metatalylate is particularly preferably used because the resulting binder resin composition is not colored even when fired and does not contaminate the substrate.
- the polyoxyalkylene (meth) acrylate monomer is not particularly limited, and examples thereof include polymethylene glycol, polyacetal, polyethylene glycol, polypropylene glycol, polytrimethylene glycol, polytetramethylene glycol, and polybutylene glycol.
- examples include (meth) acrylic acid esters.
- polyethylene glycol monomethacrylate, polypropylene glycol monomethacrylate, and polytetramethylene glycol (meth) acrylate are preferably used, and polypropylene glycol (meth) acrylate is more preferable. Since it decomposes at a low temperature, polypropylene glycol monomethalate is particularly preferably used because it can exhibit sufficient thixotropy when copolymerized with methylmethalate (MMA) as described later.
- MMA methylmethalate
- Oxyalkylene di (meth) acrylate such as acrylate, ethylene glycol dimethacrylate, propylene glycol dimethacrylate, etc. may be used.
- the bull monomers other than the above (meth) acrylate monomer are not particularly limited, and examples thereof include maleic anhydride, maleimide derivatives, N-butyl pyrrolidone, N-atarylloyl morpholine, N-bialcaprolata.
- the (meth) acrylic resin is preferably a block copolymer or a graft copolymer.
- the binder resin composition of this invention becomes easy to decompose
- polyoxyalkylene (meth) acrylate monomer for example, when a polyoxyalkylene mono (meth) acrylate as described above is used, a graft copolymer containing an oxyalkylene group in the side chain is used.
- a graft copolymer containing an oxyalkylene group in the side chain is used.
- an oxyalkylene di (meth) acrylate is used as described above, a block copolymer containing an oxyalkylene group in the main chain can be produced.
- the (meth) acrylic resin includes a (meth) acrylate monomer and a polyoxyalkylene (meth) acrylate monomer having an ester residue of 10 or less carbon atoms. It is preferable to have a structural unit derived from.
- a binder having such a composition has a low decomposition temperature, and thus has a force that enables the binder resin composition of the present invention to be fired at a low temperature.
- low-temperature firing means that the firing temperature at which 99.5% of the initial weight of the organic compound having 3 or more (meth) acrylic resins and hydroxyl groups is lost is low temperature, This refers to the case where the firing temperature is 250 to 400 ° C. in a normal air atmosphere without substitution or the like.
- a binder resin obtained by using a copolymer of methyl methacrylate (MMA) and polypropylene glycol monomethacrylate is used. Coloring can occur even when the fat composition is baked. It does not contaminate the substrate and the like, and the hydrogen-bonding functional group of the copolymer and the OH group of an organic compound having three or more hydroxyl groups described later form a hydrogen-bonding network. In particular, it is particularly suitable.
- the lower limit of the number average molecular weight in terms of polystyrene measured by gel permeation chromatography (GPC) is preferably 5000, and the upper limit is preferably 200,000. If the number average molecular weight in terms of polystyrene is less than 5000, the moldability of the inorganic fine particle dispersed paste composition described later may be inferior. If it exceeds 200,000, the resulting noder rosin composition of the present invention has a high viscosity. It becomes too much, and screen printability may be inferior. A more preferred upper limit is 100,000.
- SHO KO column LF-804 etc. are mentioned as a column at the time of measuring a polystyrene conversion number average molecular weight by GPC.
- the proportion of the (meth) acrylic resin in the binder resin composition of the present invention is not particularly limited. However, since the (meth) acrylic resin that is a binder usually exhibits adhesiveness. Considering the ease of washing of the binder resin composition of the present invention during screen printing, the preferable upper limit is 60% by weight, and the more preferable upper limit is 40% by weight.
- the polymerization method of the (meth) acrylic resin is not particularly limited, and examples thereof include methods used for polymerization of ordinary (meth) acrylic monomers. For example, free radical polymerization method, living radical polymerization method, i -Furter polymerization method, char-on polymerization method, living-on polymerization method and the like.
- the binder resin composition of the present invention contains an organic compound having three or more hydroxyl groups.
- the organic compound having 3 or more hydroxyl groups is added for the purpose of improving the thixotropy of the binder resin composition of the present invention.
- the organic compound having 3 or more hydroxyl groups is not particularly limited. 2-hydroxymethyl-1,3-propanediol, 1,1,1-trihydroxymethylethane, 1,2,4-butantriol And 1, 2, 6-hexanetriol.
- glycerin is preferably used because it is liquid at normal temperature and can sufficiently exhibit thixotropy.
- the lower limit of the content of the organic compound having three or more hydroxyl groups is 0.1 parts by weight with respect to 100 parts by weight of the (meth) acrylic resin, and the upper limit is 15 parts by weight. If the amount is less than 1 part by weight, sufficient thixotropy cannot be obtained. If the amount exceeds 15 parts by weight, the storage stability is poor, or a lot of oxygen is contained, and soot is generated. Inability to decompose at low temperatures.
- a preferred upper limit is 12 parts by weight, and a more preferred upper limit is 10 parts by weight.
- the binder resin composition of the present invention contains an organic solvent.
- organic solvent examples include, but are not limited to, for example, tervineol, ethylene glycol nore chinenoate, ethylene glycol monobutino ree tenole, ethylene glycol monoethyl ether acetate, butyl carbitol, butyl carbitol acetate, Examples include isophorone, butyl lactate, dioctyl phthalate, dioctyl adipate, benzyl alcohol, phenol propylene glycol, and talesol. Of these, terbineol, butyral carbitol, butyl carbitol acetate, and the like are preferred because of the good solubility of the binder comprising the (meth) acrylic resin.
- organic solvents may be used alone or in combination of two or more.
- the amount of the organic solvent to be added is not particularly limited, but considering the storage stability and the like, it is preferable that the number of solvents that can be separated during long-term storage is as small as possible.
- the preferred lower limit is 200 parts by weight and the preferred upper limit is 800 parts by weight with respect to 100 parts by weight.
- the binder resin composition of the present invention preferably further contains organic fine particles.
- the thixotropy of the binder resin composition of the present invention can be further improved by using the organic compound having three or more hydroxyl groups in combination with the organic fine particles.

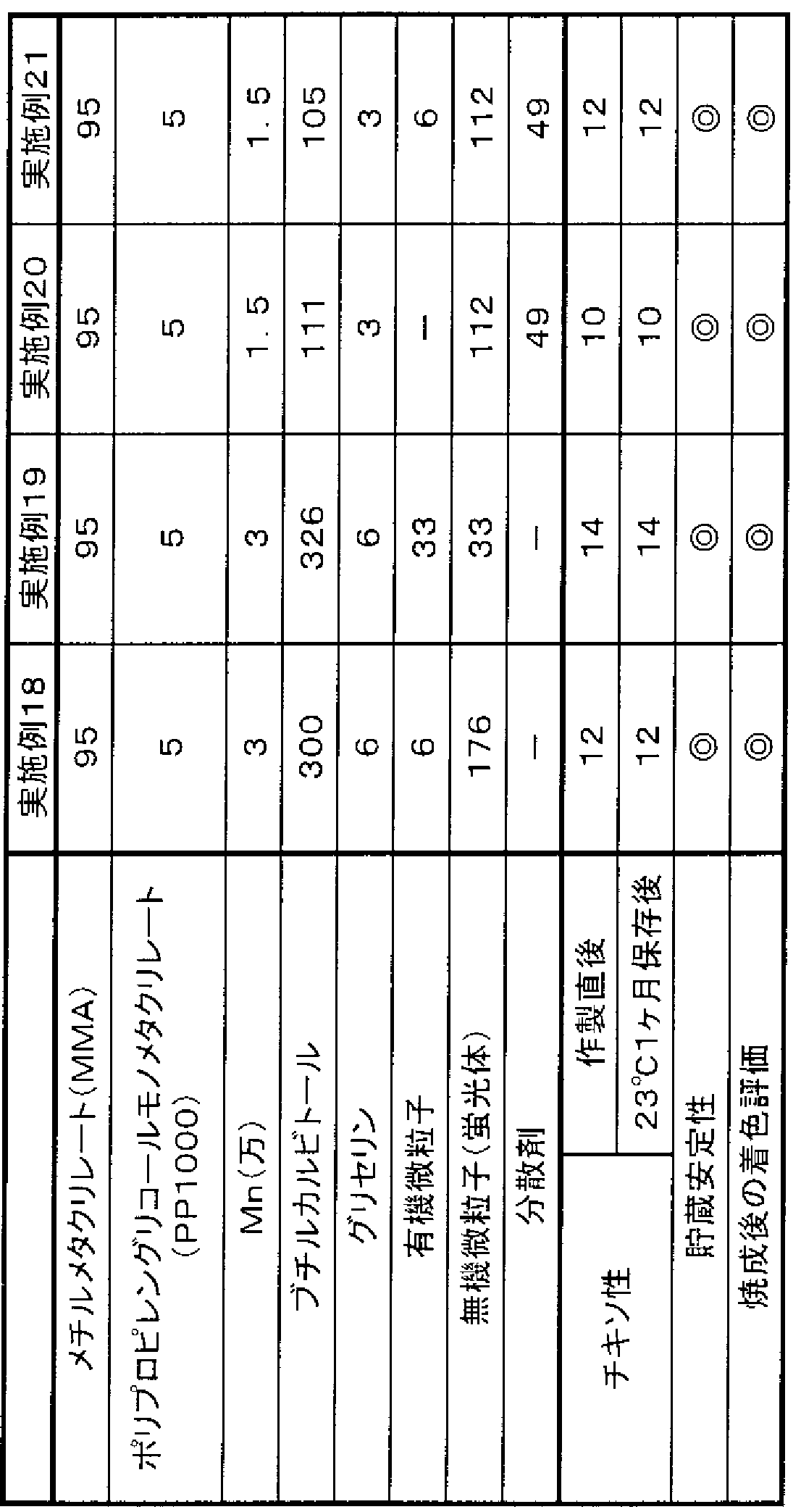

- the inorganic fine particle-dispersed best composition is prepared using the binder resin composition of the present invention, by containing the organic fine particles, thixotropy and stringiness can be obtained.
- an inorganic fine particle-dispersed paste composition that can be improved and can be decomposed at a lower temperature can be produced.
- the raw material of the organic fine particles is not particularly limited, but is (meth) acrylic resin.
- the (meth) acrylic resin is not particularly limited.
- MMA methyl methacrylate
- IBMA isobutyl methacrylate
- polypropylene glycol ether termacromer polyoxyalkylene (meth) acrylate, etc. are radically polymerized.
- a polymerized material is preferably used.
- the number of functional groups of the raw material monomer for the (meth) acrylic resin and the production process are not particularly limited.
- the organic fine particles have a constitutional unit derived from the (meth) acrylate monomer having an ester residue of 10 or less and the polyoxyalkylene (meth) acrylate monomer (meth).
- Acrylic rosin fine particles are preferred. This is because the binder resin composition of the present invention and the inorganic fine particle-dispersed paste composition described later can have suitable thixotropy and stringiness and can be fired at a low temperature.
- the organic fine particles are not particularly limited, but are preferably crosslinked fine particles having a crosslinked structure. Depending on the type of organic solvent used, some organic solvents have a function to swell organic fine particles. Therefore, when the organic fine particles are crosslinked fine particles, the physical properties of the binder resin composition change due to the organic fine particles swelling. Can be suppressed.
- the content of the organic fine particles is not particularly limited, but the preferable lower limit is 0.1% by weight and the preferable upper limit is 20% by weight with respect to the whole binder resin composition of the present invention. If the amount is less than 0.1% by weight, the effect of improving the thixotropy and stringiness cannot be obtained. If the amount exceeds 20% by weight, the paste viscosity becomes high and the screen printability may deteriorate. A more preferred lower limit is 0.5% by weight, and a more preferred upper limit is 10% by weight.
- the particle diameter of the organic fine particles is not particularly limited, but a preferable lower limit of the volume average particle diameter is 0.1 m and a preferable upper limit is 10 m. If the distance is less than 1 m, the inorganic fine particle dispersed paste composition described later may not function as a starting point for thread breakage, and if it exceeds 10 ⁇ m, problems such as clogging with screen printing meshes may occur. Sometimes. More preferably, the upper limit is 7 ⁇ m.
- the method for producing the binder resin composition of the present invention is not particularly limited, and is conventionally known.
- Stirring method specifically, for example, a three-roll, ball mill, planetary stirrer or the like, a binder comprising the above (meth) acrylic resin, an organic compound having three or more hydroxyl groups, an organic solvent, and an appropriate addition. And a method of stirring organic fine particles.
- the binder resin composition of the present invention is excellent in thixotropy because it forms a hydrogen bond network in the composition by being composed of the above-described components.
- a paste composition can be prepared by dispersing inorganic fine particles in the binder resin composition of the present invention.
- a binder comprising (meth) acrylic resin, an organic compound having three or more hydroxyl groups, a binder resin composition containing an organic solvent, and an inorganic fine particle-dispersed paste composition containing inorganic fine particles
- An inorganic fine particle dispersion paste composition in which the content of the organic compound having 3 or more hydroxyl groups is 0.1 to 15 parts by weight with respect to 100 parts by weight of the (meth) acrylic resin is also one of the present invention. It is.
- the inorganic fine particles are not particularly limited, and for example, those having at least one kind of force selected from the group consisting of phosphor, metal, glass, carbon black, carbon nanotube, metal oxide, and metal complex are suitable. Used.
- Mouth Pium Acid samarium, Cerium oxide, Acid lanthanum, Acid ⁇ Praseodymium, Neodymium oxide, Gadolinium oxide, Terbium oxide, Dysprosium oxide, Holmium oxide, Erbium oxide, Thulium oxide, BaMgAlO: Eu, Zn SiO : Mn, (Y, Gd) BO: Eu, etc.
- V Inorganic fine particles such as phosphors can be combined with the above-mentioned binder that can be decomposed at low temperature to obtain a sintered body by a process that suppresses thermal degradation.
- the content of the inorganic fine particles is preferably 10% by weight and preferably 60% by weight with respect to the total weight of the inorganic fine particle-dispersed paste composition of the present invention. 10% by weight If it is full, suitable thixotropy and stringiness cannot be imparted to the paste composition of the present invention, and if it exceeds 60% by weight, it may be difficult to disperse uniformly.
- the particle diameter of the inorganic fine particles is not particularly limited, but a preferable lower limit of the volume average particle diameter is 0.1 m, and a preferable upper limit is 10 ⁇ m. If it is less than 0.1 ⁇ m, it may not work as a thread breakage base during stretching of the inorganic fine particle dispersed paste composition, and if it exceeds m, problems such as clogging in screen printing meshes may occur. .
- the content of the phosphor is 500 parts by weight or less with respect to 100 parts by weight of the solid content of the binder resin composition. preferable. More preferably, it is 10 to 400 parts by weight.
- the inorganic fine particles are preferably coated with a dispersant such as polyether and Z or polyol.
- the dispersant is used for the purpose of suppressing the polarity of the surface of the inorganic fine particles and enhancing the dispersibility of the inorganic fine particles.
- the above-described polyether and Z or polyol force are not particularly limited as the dispersant.
- the 1S polyether include polyethylene glycol, polypropylene glycol, polytetraethylenedaricol, and two or more of these.
- glycerin, neopentyl alcohol, monoglycerides and the like are preferably used as the polyol.
- the polyether has a plurality of ether bonds
- the polyol means a compound having a plurality of hydroxyl groups, and includes those having a plurality of hydroxyl groups in the polyether.
- dispersants for example, diglycerin, trimethylolpropane, pentaerythritol, meso-erythritol, L-threitol, D-threitol, DL-threitol, 2-hydroxy Methyl-1,3-propanediol, 1, 1, 1 —Trihydroxymethylethane, 1,2,4-butanetriol, 1,2,6-hexanetriol and the like can also be suitably used.
- a water-soluble dispersant that is liquid at 20 ° C, and a viscous polyol such as glycerin, neopentyldaricol, and monoglyceride are particularly preferably used.
- a viscous polyol such as glycerin, neopentyl glycol, monoglyceride or the like that is liquid or slurry at 20 ° C. is used as a dispersant, the storage stability of the inorganic fine particle dispersed paste composition is excellent.
- the inorganic fine particles are green or blue phosphors such as Zn SiO: Mn, BaMgAl 2 O 3: Eu.
- the dispersant for example, a dispersant having a molecular weight of 3000 to 8000 is preferably used. If the molecular weight of the dispersant is less than 3000, the viscosity will be low, so the aggregation of the phosphor cannot be suppressed, and if the molecular weight exceeds 8000, the polarity will be low. It becomes difficult to coat.
- the inorganic fine particle is a red phosphor such as (Y, Gd) BO: Eu, the dispersant
- a viscous polyol such as glycerin, neopentyl glycol, or monodalylide that is liquid or slurry at 20 ° C. is preferably used.
- the obtained inorganic fine particle-dispersed paste composition is excellent in storage stability and has little change with time in screen printability.
- the inorganic fine particle-dispersed paste composition of the present invention preferably contains organic fine particles as described above. By adding the above organic fine particles, the resulting inorganic fine particle dispersion best composition has improved stringiness and further excellent storage stability while maintaining thixotropy suitable for screen printing. .
- an acrylic vehicle comprising a binder composed of (meth) acrylic resin, an organic compound having three or more hydroxyl groups, and an organic solvent is composed of an organic compound and organic solvent having (meth) acrylic resin and three or more hydroxyl groups.
- a hydrogen bond network will be formed between them and the viscosity can be increased despite the addition of organic solvents and dilution. is there.
- Such an acrylic vehicle having a viscosity increased by hydrogen bonding exhibits so-called thixotropic viscosity characteristics (thixotropic properties) in which the viscosity changes according to the strain rate by adding inorganic fine particles. This is thought to be because when the strain is applied to the system during viscosity measurement, the inorganic fine particles move through the hydrogen-bonded system, and the number of hydrogen bonds that are broken changes according to the moving speed.
- the thixotropy of an acrylic vehicle to which inorganic fine particles have been added depends on the viscosity of the acryl vehicle and the amount of inorganic fine particles to be added. When the acrylic vehicle viscosity is the same, the more thixotropic the added fine inorganic particles, the higher the thixotropy.
- the inorganic fine particle dispersed paste composition of the present invention exhibits a low viscosity at a high speed strain, it is excellent in transferability to a screen-type printing plate substrate, and a low speed strain or static If it shows a high viscosity in the state, it can prevent the paste composition from falling onto the base material as well as moving the squeegee at the time of printing, as well as maintaining the shape after printing and improving the handleability.
- Those with thixotropy have better printability.
- paste yarns and composites used for screen printing are also required to have excellent stringiness as a property that affects screen printability.
- the inorganic fine particles used in the above screen prints are also required.
- the stringiness of the dispersion paste composition greatly depends on the viscosity of the acrylic vehicle and the content of the inorganic fine particles to be added, and the content of the inorganic fine particles is large and the specific gravity is high! Inorganic particle dispersion paste composition can not withstand gravity and breaks easily! On the contrary, the inorganic fine particle dispersion best composition with a low content of inorganic fine particles and low specific gravity is difficult to cut, so it is difficult to cut, so the talyl vehicle adheres to the back of the screen when screen printing is severe.
- the amount of inorganic fine particles added to the paste composition used for screen printing is usually not large due to production costs and other process limitations.
- the fine particle-dispersed paste composition may not be able to sufficiently eliminate thixotropic stringiness.
- the addition of an organic compound having 3 or more hydroxyl groups improves the thixotropy of the paste composition. If an attempt is made to increase the number of organic compounds having 3 or more hydroxyl groups, decomposability and storage stability become problems, and the amount of inorganic fine particles to be dispersed in the acrylic vehicle is determined according to screen printing conditions. Therefore, the inorganic fine particles may not be added to a level that can improve the stringiness of the inorganic fine particle-dispersed paste composition.
- the inorganic fine particle dispersed paste yarn and the composition of thread breakage can be created when the composition is stretched. Furthermore, since the organic fine particles have excellent dispersion stability in the acrylic vehicle, the storage stability is excellent, and the screen printability is less changed with time.
- the inorganic fine particle-dispersed paste composition of the present invention contains the above-mentioned organic fine particles
- the inorganic fine particle-dispersed paste composition of the present invention is used to develop thixotropy and stringiness excellent in screen printability.
- the content of the binder composed of (meth) acrylic resin is 40% by weight or less, the content of the organic fine particles is preferable.
- the lower limit is 1% by weight, and the preferable upper limit is 5% by weight.
- the content of the binder composed of (meth) acrylic resin exceeds 40% by weight, the content of the organic fine particles is preferred.
- the lower limit is 0.1% by weight, and the preferred upper limit is 1% by weight.
- the content of the organic fine particles is not particularly limited, but a preferable lower limit is 0.1% by weight and a preferable upper limit is 20% by weight with respect to the whole inorganic fine particle dispersed paste composition of the present invention. If the amount is less than 1% by weight, an effect sufficient to improve thixotropy and stringiness cannot be obtained. If the amount exceeds 20% by weight, the paste viscosity becomes high and screen printability may be deteriorated. . A more preferred lower limit is 0.5% by weight, and a more preferred upper limit is 5% by weight.
- the inorganic fine particle-dispersed paste composition of the present invention may further contain additives such as a viscosity modifier and a surfactant.
- the viscosity modifier is not particularly limited.
- glycerin, diglycerin, trimethylolpropane, pentaerythritol, meso-erythritol, L-threitol, D-threitol, DL-threitol, 2-hydroxymethyl-1 examples include 3-propanediol, 1,1,1-trihydroxymethylethane, 1,2,4-butanetriol, 1,2,6-hexanetriol, and the like.
- what is necessary is just to use it after selecting suitably about the substance currently described in the said dispersing agent and the said viscosity modifier.
- the surfactant is not particularly limited.
- polyoxyethylene lauryl fatty acid polyoxyethylene hydrogenated castor oil, glycerin fatty acid ester, propylene glycol fatty acid ester, polyoxyethylene alkylamine, alkyl alcohol Noramide, Polyoxyethylene fatty acid ester, Polyoxyethylene lauryl ether, Polyoxyethylene cetinole z stearylene ether, Polyoxyethylene oleore ether, Polyoxyethylene alkyl ether, Polyoxyethylene myristyl ether, Polyoxyalkylene octyl ether, Polyoxyalkylene Decyl ether, polyoxyethylene derivative sorbitan fatty acid ester, polyoxyethylene sorbitan fatty acid ester, polyoxyethylene Sorbitol fatty acid esters.
- the amount of the additive such as the viscosity modifier and the surfactant is not particularly limited, but the preferred lower limit is 10 parts by weight and the preferred upper limit with respect to 100 parts by weight of the inorganic fine particle dispersed paste composition of the present invention. Is 100 parts by weight.
- the viscosity of the inorganic fine particle-dispersed paste composition of the present invention is not particularly limited. However, the viscosity is measured at 23 ° C using a B-type viscometer and the probe rotation speed is set to 30 rpm. The degree is preferably 50 Pa's or less. If it exceeds 50 Pa's, the stringiness may deteriorate and the screen printability may deteriorate.
- the inorganic fine particle-dispersed paste composition of the present invention preferably has a chlorine atom concentration measured by an ion chromatogram measuring apparatus of lOOppm or less. This is because if the chlorine atom concentration exceeds the above range, chlorine atoms are considered to decrease the emission intensity and emission lifetime of the phosphor.
- Examples of a method for setting the chlorine atom concentration of the inorganic fine particle-dispersed paste composition of the present invention to 10 ppm or less include a method using a raw material having a chlorine atom concentration of 10 ppm or less.
- a method for setting the chlorine atom concentration of the inorganic fine particle-dispersed paste composition of the present invention to 10 ppm or less include a method using a raw material having a chlorine atom concentration of 10 ppm or less.
- chlorine in the monomer can be removed by subjecting the monomer to ion exchange column chromatography.
- the chlorine atom concentration may be reduced to lOOppm by repeating washing with water. More preferably, it is 50 ppm or less, and more preferably ion chromatography. It is below the detection limit of the ram measuring device.
- the inorganic fine particle-dispersed paste composition of the present invention is composed of an organic solvent that evaporates at less than 300 ° C and a binder composed of (meth) acrylic resin that depolymerizes and decomposes at less than 400 ° C. I prefer U ⁇ .
- the inorganic fine particle dispersed paste composition of the present invention can be fired at a low temperature as described above. Therefore, when the phosphor is used as the inorganic fine particles, the inorganic fine particle dispersed paste composition of the present invention is used. It can be suitably used for forming phosphor surfaces of various display devices such as PDP (Plasma Display Panel), FED (Field Emission Display), and ED (Suriace Conduction Electron Emission Display).
- the method for producing the inorganic fine particle-dispersed paste composition of the present invention is not particularly limited, and a conventionally known stirring method, specifically, for example, the above-mentioned noinder using a three-roll, bead mill, planetary stirrer or the like. Examples thereof include a method of stirring a rosin composition, inorganic fine particles and the like.
- the inorganic fine particle-dispersed paste composition of the present invention may be either liquid or solid.
- a sheet or film When it is solid, it is preferably in the form of a sheet or film.
- a known additive for sheet formation such as a gelling agent is added to the liquid inorganic fine particle dispersed paste composition and then formed into a sheet form according to a conventional method.
- a paste-like inorganic fine particle-dispersed paste composition can be produced.
- the phosphor surface may be formed by a conventional method.
- the inorganic fine particle (phosphor) -dispersed paste composition of the present invention is liquid, screen printing, barcode printing, a curtain coater,
- the inorganic fine particle (phosphor) dispersed paste composition is coated on a substrate by a known coating method such as a slot coater, and after performing various steps such as solvent removal as desired, the phosphor surface is formed by firing.
- the inorganic fine particle (phosphor) -dispersed paste composition of the present invention is in the form of a sheet, the sheet-like inorganic fine particle (phosphor) -dispersed paste composition is laminated or transferred onto a substrate, and various processes are performed as desired. After carrying out, the phosphor surface can be formed by firing.
- the firing temperature is preferably 400 to 800 ° C. in a normal inorganic fine particle dispersed paste composition, but the inorganic fine particle dispersed paste composition of the present invention has the above-described configuration. Therefore, it is possible to perform firing at 250 to 400 ° C.
- the firing time is not particularly limited, but a preferred lower limit is 1 minute, a preferred upper limit is 60 minutes, a more preferred lower limit is 2 minutes, and a more preferred upper limit is 30 minutes.
- a preferred lower limit is 1 minute
- a preferred upper limit is 60 minutes
- a more preferred lower limit is 2 minutes
- a more preferred upper limit is 30 minutes.
- the binder resin composition used for the inorganic fine particle-dispersed paste composition having excellent thixotropy, excellent storage stability, and capable of low-temperature firing with little change in screen printability over time.
- an inorganic fine particle-dispersed paste composition can be provided.
- the obtained monomer mixture was published with nitrogen gas for 20 minutes to remove dissolved oxygen, and then the temperature inside the separable flask system was replaced with nitrogen gas and heated to reach reflux while stirring. After refluxing, a solution obtained by diluting the polymerization initiator with ethyl acetate was added. In addition, an ethyl acetate solution containing a polymerization initiator was added several times during the polymerization.
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- a binder resin composition was prepared in the same manner as in Example 1 except that 100 parts by weight of methinoremethalate (MMA) was used instead of 100 parts by weight of isobutinoremethalate (IBMA).
- MMA methinoremethalate
- IBMA isobutinoremethalate
- a binder resin composition was prepared in the same manner as in Example 1 except that glycerin was used.
- a Noinder rosin composition was prepared in the same manner as in Example 1 except that 5 parts by weight of ethylene glycol methyl ether was used as the organic compound having one hydroxyl group instead of glycerin.
- a binder resin composition was prepared in the same manner as in Example 1 except that 5 parts by weight of diethylene glycol was used as an organic compound having two hydroxyl groups instead of glycerin.
- the Noinda grease composition immediately after preparation and after storage for 1 month at 23 ° C was measured using a B-type viscometer (BR OOK FILED, DVII + Pro) at a rotation speed of 5 rpm and 30 rpm at 23 ° C. Each viscosity was measured. The viscosity ratio (viscosity at 5 rpm Z viscosity at 30 rpm) was determined from the obtained viscosity, and 1.5 or higher was evaluated as having excellent thixotropy.
- MMA methyl metatalylate
- DDM chain transfer agent dodecyl mercaptan
- organic solvent 300 parts by weight of butyl carbitol
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- glycerin as an organic compound having 3 or more hydroxyl groups was added and dispersed with a high-speed disperser to prepare a binder resin composition.
- Zn SiO Mn, which is a phosphor as inorganic fine particles (green phosphor: manufactured by Nichia Corporation) 1
- Methyl metatalylate (MMA) 95 parts by weight, having a hydrogen-bonding functional group and containing a polyoxyalkylene side chain as a (meth) acrylate, polypropylene glycol monometatalylate (Blenmer PPIOOO manufactured by NOF Corporation) 5
- a monomer mixture was obtained by mixing parts by weight and the chain transfer agent dodecyl mercaptan (DDM) with 300 parts by weight of butyl carbitol as an organic solvent.
- DDM chain transfer agent dodecyl mercaptan
- Methyl metatalylate (MMA) 90 parts by weight, having a hydrogen-bonding functional group and having a polyoxyalkylene side chain as a (meth) acrylate, polypropylene glycol monometatalylate (Blemmer PP1000 manufactured by NOF Corporation) 10
- a monomer mixture was obtained by mixing parts by weight and a chain transfer agent dodecyl mercaptan (DDM) with 300 parts by weight of butyl carbitol as an organic solvent.
- DDM chain transfer agent dodecyl mercaptan
- Example 7 Same as Example 7 except that the contents of methyl metatalylate (MMA) and polypropylene glycol monometatalylate (Nippon Yushi Co., Ltd., Bremer PP1000) were changed to the amounts shown in Table 3. In this manner, a binder resin composition and an inorganic fine particle dispersed paste composition were prepared.
- MMA methyl metatalylate
- polypropylene glycol monometatalylate Nippon Yushi Co., Ltd., Bremer PP1000
- MMA methyl methacrylate
- hydrogen bonding functional group a hydrogen bonding functional group
- polyoxyalkylene side chain Mixing 5 parts by weight of polypropylene glycol monometatalylate (Blenmer PP1000 manufactured by Nippon Oil & Fats Co., Ltd.) and 300 parts by weight of butyl carbitol as an organic solvent
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- glycerin as an organic compound having three or more hydroxyl groups was added and dispersed with a high-speed disperser to prepare a binder resin composition.
- Zn SiO Mn, which is a phosphor as inorganic fine particles (green phosphor: manufactured by Nichia Corporation) 1
- Example 18 Except that the contents of glycerin and phosphor were changed to the amounts shown in Table 4, a Norder greave composition and an inorganic fine particle-dispersed paste composition were prepared in the same manner as in Example 11. [0085] (Example 18)
- a 2 L separable flask equipped with a stirrer, a cooler, a thermometer, and a nitrogen gas inlet has 95 parts by weight of methyl methacrylate (MMA), a hydrogen-bonding functional group, and a polyoxyalkylene side chain.
- MMA methyl methacrylate
- a hydrogen-bonding functional group a hydrogen-bonding functional group
- a polyoxyalkylene side chain As the (meth) acrylate contained, 5 parts by weight of polypropylene glycol monometa acrylate (Nippon Yushi Co., Ltd., BLEMMER PP-1000), chain transfer agent dodecyl mercaptan (DDM), and butyl carbitol as organic solvent 300 The monomer was mixed with parts by weight to obtain a monomer mixture.
- DDM chain transfer agent dodecyl mercaptan
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- glycerin as an organic compound having 3 or more hydroxyl groups was added and dispersed with a high-speed disperser to prepare a binder resin composition.
- Zn SiO Mn which is a phosphor as inorganic fine particles (green phosphor: manufactured by Nichia Corporation) 1
- Example 20 A Noinder resin composition in the same manner as in Example 18 except that the addition amount of butyl carbitol was 326 parts by weight, the addition amount of the phosphor was 33 parts by weight, and the addition amount of the organic fine particles was 33 parts by weight. And the inorganic fine particle dispersion
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- glycerin as an organic compound having 3 or more hydroxyl groups was added and dispersed with a high-speed disperser to prepare a binder resin composition.
- phosphorous ZnSiO: Mn (green) is added to 112 parts by weight of polypropylene.
- Coal ether (Nuol Y-Our D-4000, molecular weight 4000) 49 parts by weight was kneaded in advance with a high-speed disperser, and the roll interval was reduced until it became smooth with a three-roll kneader. The mixture was kneaded to obtain inorganic fine particles coated with polypropylene glycol ether.
- MMA methyl metatalylate
- DDM chain transfer agent dodecyl mercaptan
- organic solvent 300 parts by weight of butyl carbitol
- Zn SiO Mn, which is a phosphor as inorganic fine particles (green phosphor: manufactured by Nichia Corporation) 1
- MMA methylmethalate
- MMA methylmethalate
- MMA methylmethalate
- MMA methylmethalate
- hydrogen bonding functional group a hydrogen bonding functional group
- polyoxyalkylene side chain containing polypropylene polypropylene
- a binder resin composition and an inorganic fine particle-dispersed paste composition were prepared in the same manner as in Comparative Example 4 except that 5 parts by weight of glycol monometatalylate (Nippon Yushi Co., Ltd., Bremma 1 PP1000) was added.
- MMA methyl metatalylate
- D DM chain transfer agent dodecyl mercaptan
- a binder resin composition To a butyl carbitol solution containing a polymer, 3 parts by weight of diethylene glycol was prepared and dispersed with a high-speed disperser to prepare a binder resin composition.
- Zn SiO Mn, which is a phosphor as inorganic fine particles (green phosphor: manufactured by Nichia Gakaku) 1
- MMA methylmethalate
- MMA methylmethalate
- MMA methylmethalate
- MMA methylmethalate
- hydrogen bonding functional group a hydrogen bonding functional group
- polyoxyalkylene side chain containing polypropylene polypropylene
- a binder resin composition and an inorganic fine particle-dispersed paste composition were prepared in the same manner as in Comparative Example 6 except that 5 parts by weight of glycol monometatalylate (Nippon Yushi Co., Ltd., Bremma 1 PP1000) was added.
- a Noinder rosin composition and an inorganic fine particle-dispersed paste composition were prepared in the same manner as in Comparative Example 6 except that 3 parts by weight of ethylene glycol methyl ether was added instead of 3 parts by weight of diethylene glycol.
- a binder resin composition and an inorganic fine particle-dispersed paste composition were prepared in the same manner as in Comparative Example 7, except that 3 parts by weight of ethylene glycol methyl ether was added instead of 3 parts by weight of diethylene glycol.
- the viscosity of the inorganic fine particle-dispersed paste composition immediately after preparation and after storage at 23 ° C. for 1 month was measured at room temperature using a B-type viscometer at rotation speeds of 1 rpm and 50 rpm. Viscosity obtained was also determined as a viscosity ratio (viscosity at 1 rpm, viscosity at Z50 rpm). 1. Give 5 or more as excellent thixotropy.
- the obtained inorganic fine particle-dispersed paste composition was stored at 23 ° C. for 1 month, and then it was visually evaluated whether or not the solution had undergone phase separation (exudation of oil).
- Complete phase separation refers to a state where the inorganic fine particle-dispersed paste composition is separated into two phases, sedimentation of the inorganic fine particles is observed, and the viscosity of the supernatant liquid decreases.
- the obtained binder resin composition was uniformly applied to a 10 cm ⁇ 10 cm area glass plate with an applicator to a thickness of 5 mil, dried in an oven set at 120 ° C. for 10 minutes, The solvent contained in one was dried.
- the glass plate after drying the solvent was baked in an electric furnace at 350 ° C. for 30 minutes, and after cooling, the coloring of the glass plate surface was visually evaluated.
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- the prepared (meth) acrylic resin was blended as shown in Table 7 with respect to the tervineol solution and dispersed with a high-speed disperser.
- glycerin as an organic compound having three or more hydroxyl groups, Zn SiO: Mn (green phosphor: manufactured by Nichia Gakuen Co., Ltd.), which is a phosphor as inorganic fine particles, and crosslinking as organic fine particles
- Acrylic fine particles (Negami Kogyo Co., Ltd., Art Pearl J-4P: volume average particle size 2.2 m) were blended as described in Table 7, and sufficiently kneaded using a high-speed agitator, and inorganic fine particle dispersed paste composition Got.
- MMA methyl metatalylate
- DD M chain transfer agent
- the number average molecular weight in terms of polystyrene was measured by GPC, and a column LF-804 manufactured by SHOKO was used as the column.
- the prepared (meth) acrylic resin was blended as shown in Table 7 with respect to the tervineol solution and dispersed with a high-speed disperser.
- glycerin as an organic compound having three or more hydroxyl groups, Zn SiO: Mn (green phosphor: manufactured by Nichia Gakuen Co., Ltd.) which is a phosphor as inorganic fine particles, and crosslinking as organic fine particles
- Acrylic fine particles (Negami Kogyo Co., Ltd., Art Pearl J-4P: volume average particle size 2.2 m) were blended as described in Table 7, and sufficiently kneaded using a high-speed agitator, and inorganic fine particle dispersed paste composition Got.
- Sintered inorganic fine particle-dispersed paste composition immediately after production and after storage for 1 month at 23 ° C, using a B-type viscometer (BROOK FILED, DVII + Pro) and rotating at 5 rpm and 30 rpm The respective viscosities at 23 ° C were measured. From the obtained viscosity, the viscosity ratio (viscosity at 5 rpm, viscosity at Z30 rpm) was determined, and 1.5 or higher was evaluated as having excellent thixotropy.
- phase separation refers to a state in which the paste composition is separated into two phases, sedimentation of inorganic fine particles is observed, and the viscosity of the supernatant liquid decreases.
- BMA isobutyl methacrylate
- polypropylene glycol monomethacrylate polypropylene glycol monomethacrylate
- glycerol methacrylate used as monomers
- chlorine contained in each monomer was previously removed using ion exchange chromatography.
- the chain transfer agent dodecyl mercaptan (DDM), terbinol, polymerization initiator, and ethyl acetate I prepared something that was cunning.
- IBMA isobutyl metatalylate
- PRGMA polypropylene glycol monometatalinate
- GLM glycerol methacrylate
- DDM chain transfer agent dodecyl mercaptan
- a binder resin composition was obtained in the same manner as in Experimental Example 1 except that ion exchange chromatography was not used, and that the chlorine contained in each monomer was removed by washing with ion exchange water instead. It was.
- a binder resin composition was obtained in the same manner as in Experimental Example 1 except that chlorine contained in each monomer was not previously removed.
- the chlorine content contained in the binder resin composition obtained in Experimental Examples 1 to 3 was quantitatively measured using an ion chromatogram measuring apparatus according to the chlorine content measuring method described later.
- Each sample was dried on a water bath, and about 20 mg of the dried solid matter was precisely weighed on a filter paper (No. 7).
- the inside of the flask into which 10 mL of purified water was injected with a whole pipette was replaced with oxygen. In this flask, each sample was burned together with the filter paper (however, for the blank, only the filter paper was burned).
- the flask was then allowed to stand for about 1 hour, and the flask was shaken to absorb chlorine into purified water (flasco method).
- the obtained solution was used as a test solution, and ion chromatography was performed using an ion chromatogram measuring apparatus. Measurement conditions are as follows.
- Liquid mixture obtained by adding 20 parts by weight of blue phosphor (aluminum, barium and magnesium-containing europium phosphor) to 100 parts by weight of the binder resin composition obtained in Experimental Examples 1 to 3, and further diluting with a solvent was applied to a small test plasma display substrate, dried, and then fired to sinter it into a light emitting element shape to form a phosphor layer on the substrate. Plasma was generated on the obtained phosphor layer for 10 minutes in a dilute mixed gas atmosphere of xenon and neon.
- the brightness of the sintered phosphor was measured before plasma generation and after 10 minutes of plasma generation, and the rate of decrease in brightness of the sintered phosphor before and after exposure to plasma was determined.
- the binder resin composition used for the inorganic fine particle dispersed paste composition which is excellent in thixotropy, excellent in storage stability and capable of low-temperature firing with little change in screen printability with time, and An inorganic fine particle-dispersed paste composition can be provided.
Landscapes
- Chemical & Material Sciences (AREA)
- Health & Medical Sciences (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Medicinal Chemistry (AREA)
- Polymers & Plastics (AREA)
- Organic Chemistry (AREA)
- Compositions Of Macromolecular Compounds (AREA)
- Adhesives Or Adhesive Processes (AREA)
Abstract
Description
Claims
Priority Applications (5)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| JP2007521078A JP5385530B2 (ja) | 2005-03-31 | 2005-12-20 | 無機微粒子分散ペースト組成物 |
| KR1020077023691A KR101271273B1 (ko) | 2005-03-31 | 2005-12-20 | 바인더 수지 조성물 및 무기 미립자 분산 페이스트 조성물 |
| CN200580048991XA CN101137712B (zh) | 2005-03-31 | 2005-12-20 | 粘合剂树脂组合物及无机微粒分散膏状组合物 |
| EP05820270A EP1865026B1 (en) | 2005-03-31 | 2005-12-20 | Binder resin composition and inorganic fine particle-dispersed paste composition |
| US11/887,209 US8440103B2 (en) | 2005-03-31 | 2005-12-20 | Binder resin composition and inorganic fine particle-dispersed paste composition |
Applications Claiming Priority (6)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| JP2005104347 | 2005-03-31 | ||
| JP2005-104347 | 2005-03-31 | ||
| JP2005-195768 | 2005-07-05 | ||
| JP2005195768 | 2005-07-05 | ||
| JP2005322330 | 2005-11-07 | ||
| JP2005-322330 | 2005-11-07 |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| WO2006112089A1 true WO2006112089A1 (ja) | 2006-10-26 |
Family
ID=37114831
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| PCT/JP2005/023401 Ceased WO2006112089A1 (ja) | 2005-03-31 | 2005-12-20 | バインダー樹脂組成物、及び、無機微粒子分散ペースト組成物 |
Country Status (7)
| Country | Link |
|---|---|
| US (1) | US8440103B2 (ja) |
| EP (1) | EP1865026B1 (ja) |
| JP (1) | JP5385530B2 (ja) |
| KR (1) | KR101271273B1 (ja) |
| CN (1) | CN101137712B (ja) |
| TW (1) | TWI398496B (ja) |
| WO (1) | WO2006112089A1 (ja) |
Cited By (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2013203837A (ja) * | 2012-03-28 | 2013-10-07 | Canon Finetech Inc | 微粒子分散体 |
| JP2013202478A (ja) * | 2012-03-28 | 2013-10-07 | Canon Finetech Inc | 微粒子分散体 |
| JP2015092540A (ja) * | 2013-10-01 | 2015-05-14 | 富士フイルム株式会社 | 熱電変換素子、熱電変換材料 |
| JP2024022346A (ja) * | 2022-08-05 | 2024-02-16 | 住友ベークライト株式会社 | スリットノズル用導電性ペースト、硬化物およびスリットノズル用導電性ペーストの塗布方法 |
Families Citing this family (18)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US7914755B2 (en) | 2001-04-12 | 2011-03-29 | Eestor, Inc. | Method of preparing ceramic powders using chelate precursors |
| US7993611B2 (en) | 2006-08-02 | 2011-08-09 | Eestor, Inc. | Method of preparing ceramic powders using ammonium oxalate |
| US8853116B2 (en) | 2006-08-02 | 2014-10-07 | Eestor, Inc. | Method of preparing ceramic powders |
| JP4849612B2 (ja) * | 2006-10-19 | 2012-01-11 | 日東電工株式会社 | 無機粉体含有樹脂組成物及び誘電体層形成基板 |
| KR101647523B1 (ko) * | 2008-11-12 | 2016-08-10 | 세키스이가가쿠 고교가부시키가이샤 | 금속 산화물 미립자 분산 슬러리 |
| US20100285316A1 (en) * | 2009-02-27 | 2010-11-11 | Eestor, Inc. | Method of Preparing Ceramic Powders |
| CN102333818A (zh) * | 2009-03-17 | 2012-01-25 | 积水化学工业株式会社 | 无机微粒分散糊剂组合物 |
| JP5600488B2 (ja) * | 2009-08-04 | 2014-10-01 | 積水化学工業株式会社 | 無機微粒子分散ペースト |
| WO2012137807A1 (ja) * | 2011-04-08 | 2012-10-11 | 積水化学工業株式会社 | 液晶滴下工法用シール剤、上下導通材料、及び、液晶表示素子 |
| TWI608062B (zh) * | 2011-05-31 | 2017-12-11 | 住友電木股份有限公司 | 樹脂組成物、使用它之半導體裝置及半導體裝置之製造方法 |
| WO2014077603A1 (ko) * | 2012-11-16 | 2014-05-22 | Kim Hee Joon | 형광체 잉크 조성물 및 이의 제조방법 |
| KR101537516B1 (ko) | 2012-11-16 | 2015-07-23 | 김희준 | 형광체 잉크 조성물 및 이의 제조방법 |
| CN109021968B (zh) * | 2014-03-04 | 2021-08-20 | 纳米技术有限公司 | 用于制造量子点聚合物膜的方法 |
| WO2020129357A1 (ja) * | 2018-12-18 | 2020-06-25 | パナソニックIpマネジメント株式会社 | 波長変換部材、光学装置、プロジェクタ及び波長変換部材の製造方法 |
| CN111925469B (zh) * | 2020-08-19 | 2021-04-06 | 上海金成高分子材料有限公司 | 一种高纯水制备专用树脂的方法 |
| KR20220061398A (ko) * | 2020-11-06 | 2022-05-13 | 엘에스니꼬동제련 주식회사 | 태양전지 전극용 도전성 페이스트 및 이를 사용하여 제조된 태양전지 |
| JP7506644B2 (ja) * | 2021-09-08 | 2024-06-26 | 積水化学工業株式会社 | 無機微粒子分散スラリー組成物及びそれを用いた無機微粒子分散シートの製造方法 |
| CN114752012A (zh) * | 2022-05-07 | 2022-07-15 | 佛山市瑞纳新材科技有限公司 | 一种用于正极导电银浆的聚丙烯酸酯树脂及其制备方法 |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US4990582A (en) | 1986-07-18 | 1991-02-05 | Salamone Joseph C | Fluorine containing soft contact lens hydrogels |
| JPH04178476A (ja) * | 1990-11-13 | 1992-06-25 | Cemedine Co Ltd | 紙製容器用荷崩れ防止コーティング剤及びこれを塗工した防滑性段ボールケース |
| JPH0748539A (ja) * | 1993-08-06 | 1995-02-21 | Toyo Ink Mfg Co Ltd | 塗料組成物およびそれに使用する液状樹脂の製造方法 |
| JPH07242853A (ja) * | 1994-03-03 | 1995-09-19 | Japan Synthetic Rubber Co Ltd | 水分散体組成物 |
| JPH08157524A (ja) * | 1994-12-08 | 1996-06-18 | Mitsubishi Chem Corp | 架橋樹脂の製造方法 |
| JPH0931320A (ja) * | 1995-07-24 | 1997-02-04 | Sanyo Chem Ind Ltd | バインダー組成物 |
| JP2002060673A (ja) * | 2000-08-18 | 2002-02-26 | Kansai Paint Co Ltd | 熱硬化性被覆用樹脂組成物 |
| JP2002294176A (ja) * | 2001-03-29 | 2002-10-09 | Nippon Paint Co Ltd | 水性塗料組成物およびそれを用いる複層塗膜形成方法 |
| WO2003077792A2 (en) | 2002-03-11 | 2003-09-25 | Johnson & Johnson Vision Care, Inc. | Low polydispersity poly-hema compositions |
Family Cites Families (14)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US4598111A (en) * | 1982-03-18 | 1986-07-01 | Glasurit America, Inc. | Coating composition containing cross-linked microparticles |
| JPS59128265A (ja) * | 1983-01-14 | 1984-07-24 | 株式会社クラレ | 高強度セラミツク成形体の製造法 |
| JPH03195785A (ja) * | 1989-12-25 | 1991-08-27 | Pentel Kk | 版画インキ組成物 |
| JPH09208640A (ja) | 1996-01-29 | 1997-08-12 | Nippon Kayaku Co Ltd | 樹脂組成物及びその硬化物 |
| DE69807976T2 (de) * | 1997-05-09 | 2003-06-05 | Jsr Corp | Zusammensetzung einer Glaspaste |
| JP4449087B2 (ja) * | 1998-08-11 | 2010-04-14 | 株式会社村田製作所 | セラミックスラリー、およびセラミックグリーンシート、ならびにセラミックスラリーの流動性調整方法 |
| JP2000144124A (ja) | 1998-11-16 | 2000-05-26 | Kasei Optonix Co Ltd | 蛍光体ペースト組成物 |
| US6183669B1 (en) * | 1999-03-25 | 2001-02-06 | Murata Manufacturing Co., Ltd. | Paste composition, circuit board using the same, ceramic green sheet, ceramic substrate, and method for manufacturing ceramic multilayer substrate |
| JP2001057152A (ja) * | 1999-08-20 | 2001-02-27 | Nec Kansai Ltd | カラーpdpの製造方法 |
| KR20010101829A (ko) * | 1999-12-08 | 2001-11-14 | 마츠시타 덴끼 산교 가부시키가이샤 | 플라즈마 디스플레이 패널의 제조방법 |
| JP2003096305A (ja) | 2001-09-19 | 2003-04-03 | Jsr Corp | 無機粒子含有組成物、転写フィルムおよびプラズマディスプレイパネルの製造方法 |
| US7094289B2 (en) * | 2002-08-07 | 2006-08-22 | Shoei Chemical Inc. | Method for manufacturing highly-crystallized oxide powder |
| US7507682B2 (en) * | 2004-02-24 | 2009-03-24 | Kyocera Corporation | Method of manufacturing ceramic paste and ceramic multi-layer wiring substrate utilizing the same |
| US7011703B1 (en) * | 2004-08-30 | 2006-03-14 | Kerr-Mcgee Chemical Llc | Surface-treated pigments |
-
2005
- 2005-12-20 EP EP05820270A patent/EP1865026B1/en not_active Expired - Lifetime
- 2005-12-20 US US11/887,209 patent/US8440103B2/en not_active Expired - Fee Related
- 2005-12-20 JP JP2007521078A patent/JP5385530B2/ja not_active Expired - Fee Related
- 2005-12-20 WO PCT/JP2005/023401 patent/WO2006112089A1/ja not_active Ceased
- 2005-12-20 TW TW094145245A patent/TWI398496B/zh not_active IP Right Cessation
- 2005-12-20 KR KR1020077023691A patent/KR101271273B1/ko not_active Expired - Fee Related
- 2005-12-20 CN CN200580048991XA patent/CN101137712B/zh not_active Expired - Fee Related
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US4990582A (en) | 1986-07-18 | 1991-02-05 | Salamone Joseph C | Fluorine containing soft contact lens hydrogels |
| JPH04178476A (ja) * | 1990-11-13 | 1992-06-25 | Cemedine Co Ltd | 紙製容器用荷崩れ防止コーティング剤及びこれを塗工した防滑性段ボールケース |
| JPH0748539A (ja) * | 1993-08-06 | 1995-02-21 | Toyo Ink Mfg Co Ltd | 塗料組成物およびそれに使用する液状樹脂の製造方法 |
| JPH07242853A (ja) * | 1994-03-03 | 1995-09-19 | Japan Synthetic Rubber Co Ltd | 水分散体組成物 |
| JPH08157524A (ja) * | 1994-12-08 | 1996-06-18 | Mitsubishi Chem Corp | 架橋樹脂の製造方法 |
| JPH0931320A (ja) * | 1995-07-24 | 1997-02-04 | Sanyo Chem Ind Ltd | バインダー組成物 |
| JP2002060673A (ja) * | 2000-08-18 | 2002-02-26 | Kansai Paint Co Ltd | 熱硬化性被覆用樹脂組成物 |
| JP2002294176A (ja) * | 2001-03-29 | 2002-10-09 | Nippon Paint Co Ltd | 水性塗料組成物およびそれを用いる複層塗膜形成方法 |
| WO2003077792A2 (en) | 2002-03-11 | 2003-09-25 | Johnson & Johnson Vision Care, Inc. | Low polydispersity poly-hema compositions |
Non-Patent Citations (1)
| Title |
|---|
| See also references of EP1865026A4 * |
Cited By (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2013203837A (ja) * | 2012-03-28 | 2013-10-07 | Canon Finetech Inc | 微粒子分散体 |
| JP2013202478A (ja) * | 2012-03-28 | 2013-10-07 | Canon Finetech Inc | 微粒子分散体 |
| JP2015092540A (ja) * | 2013-10-01 | 2015-05-14 | 富士フイルム株式会社 | 熱電変換素子、熱電変換材料 |
| JP2024022346A (ja) * | 2022-08-05 | 2024-02-16 | 住友ベークライト株式会社 | スリットノズル用導電性ペースト、硬化物およびスリットノズル用導電性ペーストの塗布方法 |
Also Published As
| Publication number | Publication date |
|---|---|
| TW200634111A (en) | 2006-10-01 |
| KR20070116639A (ko) | 2007-12-10 |
| JPWO2006112089A1 (ja) | 2008-11-27 |
| US20090050850A1 (en) | 2009-02-26 |
| CN101137712B (zh) | 2010-12-01 |
| EP1865026A4 (en) | 2008-06-04 |
| EP1865026A1 (en) | 2007-12-12 |
| EP1865026B1 (en) | 2012-01-11 |
| US8440103B2 (en) | 2013-05-14 |
| CN101137712A (zh) | 2008-03-05 |
| JP5385530B2 (ja) | 2014-01-08 |
| TWI398496B (zh) | 2013-06-11 |
| KR101271273B1 (ko) | 2013-06-04 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| JP5385530B2 (ja) | 無機微粒子分散ペースト組成物 | |
| JP2018104708A (ja) | ペースト組成物、ならびに焼成体およびその製造方法 | |
| WO2010106980A1 (ja) | 無機微粒子分散ペースト組成物 | |
| KR101632096B1 (ko) | 무기 미립자 분산 페이스트 | |
| JP2012140558A (ja) | 無機微粒子分散ペースト組成物 | |
| JP5126816B2 (ja) | 有機ビヒクルの製造方法およびその有機ビヒクルを含有したペースト | |
| JP2004315719A (ja) | 焼成用樹脂組成物 | |
| JP2009263448A (ja) | 無機微粒子含有樹脂組成物及びそれを用いた無機物層 | |
| JP2001049070A (ja) | アクリル系バインダー樹脂組成物 | |
| JP4312825B2 (ja) | 蛍光体ペースト組成物 | |
| KR100718923B1 (ko) | 플라즈마 디스플레이 패널용 투명 유전체 페이스트 조성물및 이로부터 형성된 유전체 페이스트층을 포함하는 유전체드라이 필름 | |
| KR101064846B1 (ko) | 오프셋 인쇄용 페이스트 조성물 및 이를 이용한 평판표시장치 | |
| JP2009191091A (ja) | 無機微粒子分散ペースト組成物 | |
| JP2002020570A (ja) | 焼成型ペースト用アクリル系バインダー樹脂組成物 | |
| JP2004315720A (ja) | 焼成用樹脂組成物 | |
| JP2011122129A (ja) | 無機微粒子分散ペースト組成物 | |
| JP2008101167A (ja) | 無機微粒子分散ペースト組成物 | |
| JP5215696B2 (ja) | 無機微粒子分散ペースト | |
| JP2007177035A (ja) | 無機微粒子分散ペースト組成物 | |
| JP4516871B2 (ja) | アクリル系低温焼成バインダー | |
| JP2007106802A (ja) | バインダー樹脂組成物及び無機微粒子分散ペースト組成物 | |
| JP2000248224A (ja) | アクリル系バインダー樹脂組成物 | |
| JP5291298B2 (ja) | 蛍光体ペースト組成物 | |
| JP2009138106A (ja) | ガラスペースト組成物、及び、プラズマディスプレイパネルの製造方法 | |
| JP2007031659A (ja) | 焼成助剤、及びそれを含有してなる焼成用樹脂組成物 |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| 121 | Ep: the epo has been informed by wipo that ep was designated in this application | ||
| WWE | Wipo information: entry into national phase |
Ref document number: 2007521078 Country of ref document: JP |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 2005820270 Country of ref document: EP |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 200580048991.X Country of ref document: CN |
|
| NENP | Non-entry into the national phase |
Ref country code: DE |
|
| WWW | Wipo information: withdrawn in national office |
Ref document number: DE |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 1020077023691 Country of ref document: KR |
|
| NENP | Non-entry into the national phase |
Ref country code: RU |
|
| WWW | Wipo information: withdrawn in national office |
Ref document number: RU |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 11887209 Country of ref document: US |
|
| WWP | Wipo information: published in national office |
Ref document number: 2005820270 Country of ref document: EP |
